Wastewater/Activity/PacpInspection/1.0Dec 15, 2015, 09:05 AM
18 0389_18 0388_20151215_011513.mp4
- Date
- 12/15/2015
- W/O
- 541799
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00704
- PipeID
- P14222
- Time
- 1:05 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- k2888
- Sewer Name
- 18 SORENSEN AVENUE RELIEF TRUNK
- City
- WHITTIER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 10
- Purpose
- V
- Project
- WO_541799_TV18054_DEC2015
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 18 0388
- Downstream MH
- 18 0389
- Dir. of Survey
- Upstream
- Length Surveyed
- 55.8 ft.
- Total Length
- 55.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 20
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 23
Observation photos (2)

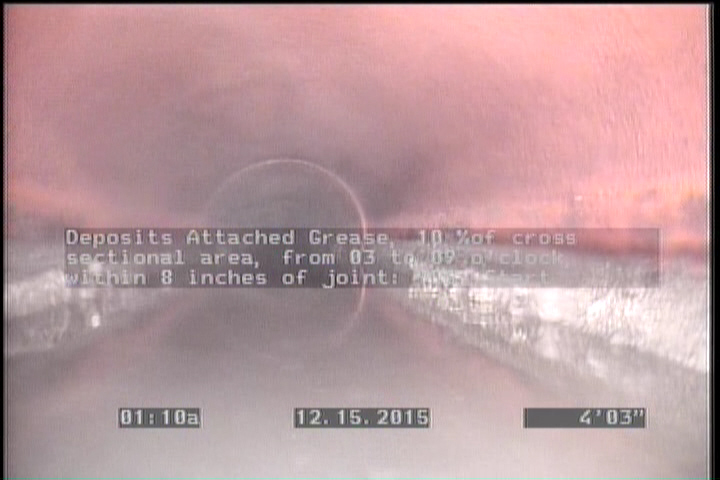

4.3 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

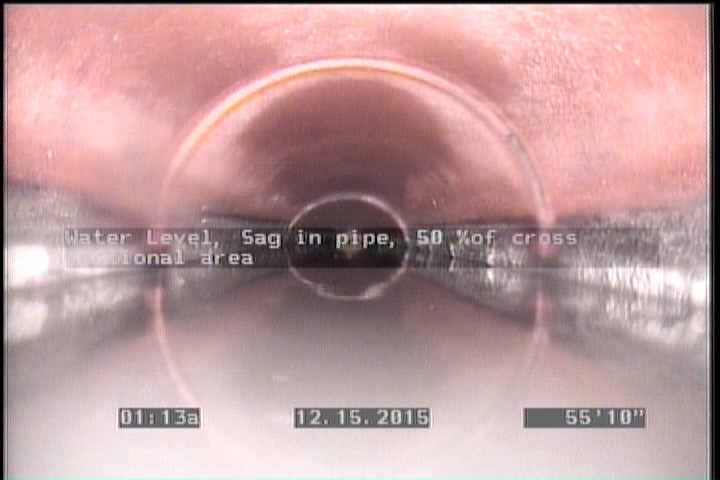

55.8 ft. - Water Level, Sag in pipe, 50 %of cross sectional area
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 55.8 | DAGS | — |
| 55.8 | MSA | DUE TO LARGE SAG REVERSAL INCOMPLETE SHORT 20 FT. |
| 0 | MWL | — |
| 55.8 | MWLS | — |
| 0 | MWM | — |
| 0 | MGO | — |
| 0 | AMH | 18 0388 |
| 4.3 | DAGS | — |
Properties (5)
- additional_info
- SC224464
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2015-12-15T01:05:52-08:00
- sewer_category
- GRAVITY
