Wastewater/Activity/PacpInspection/1.0Dec 28, 2015, 11:45 AM
14 0447_14 0446_28122015_034533.mp4
- Date
- 12/28/2015
- W/O
- 541760
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00578
- PipeID
- P18535
- Time
- 3:45 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3059
- Sewer Name
- 14 TRUNK "B"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_541760_TV14047_DEC2015
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 14 0447
- Downstream MH
- 14 0446
- Dir. of Survey
- Downstream
- Length Surveyed
- 338 ft.
- Total Length
- 338 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2Z00
- O&M Rating
- 268
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 268
Observation photos (2)

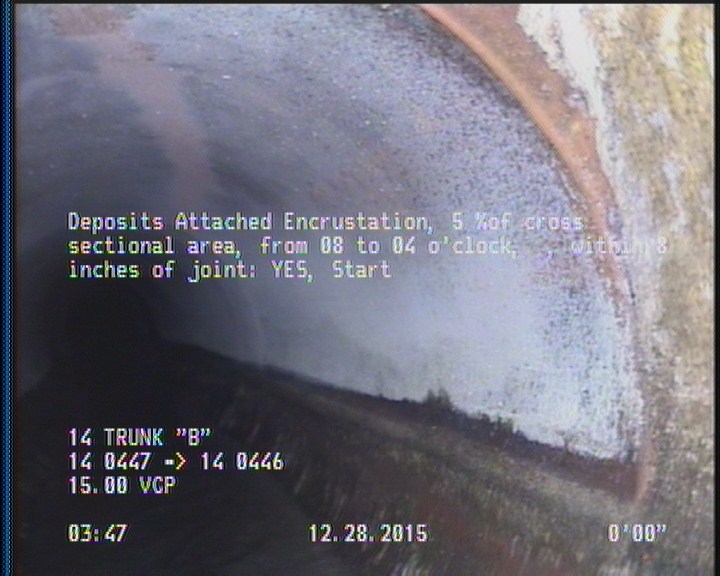

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 31.4 | TFC | — |
| 202.4 | TFC | — |
| 336 | DAE | — |
| 232.2 | TFC | — |
| 338 | AMH | 14 0446 |
| 56.8 | TFC | — |
| 336 | DAGS | — |
| 282.5 | TFC | — |
| 0 | AMH | 14 0447 |
| 2 | DAE | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 227.1 | TBA | — |
| 76.9 | TFC | — |
| 307 | TFC | — |
| 2 | DAGS | — |
| 257.1 | TFC | — |
| 182.2 | TFC | — |
| 338 | MGO | CAPPED CONNECTION AT MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC204198
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-12-28T03:45:15-08:00
- sewer_category
- GRAVITY
