Wastewater/Activity/PacpInspection/1.0May 11, 2017, 07:26 AM
A 0896_A 0895_5112017_004619.mp4
- Date
- 05/11/2017
- W/O
- 0619075
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00318
- PipeID
- P07990
- Time
- 12:26 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0522
- Sewer Name
- A JOA-1A FLORENCE AVENUE INTERCEPTOR
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- 20170511MDM_JOA_1A_FLORENCE_AVENUE_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- A 0896
- Downstream MH
- A 0895
- Dir. of Survey
- Downstream
- Length Surveyed
- 4 ft.
- Total Length
- 4 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

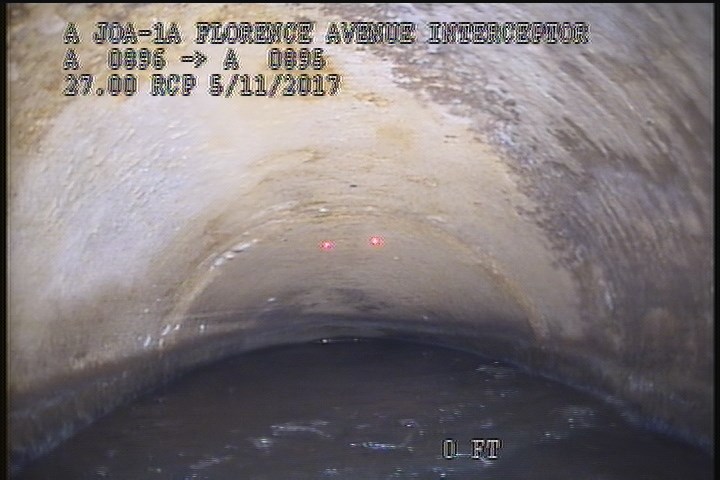

0 ft. - Water Level, 40 %of cross sectional area

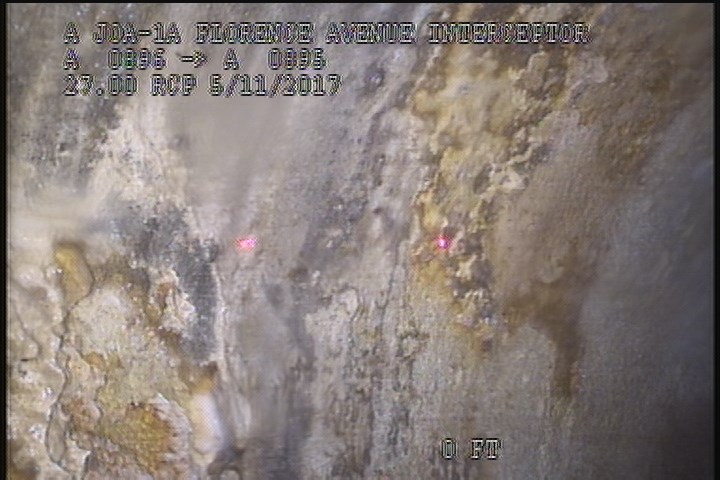

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - BLISTERING CONCRETE

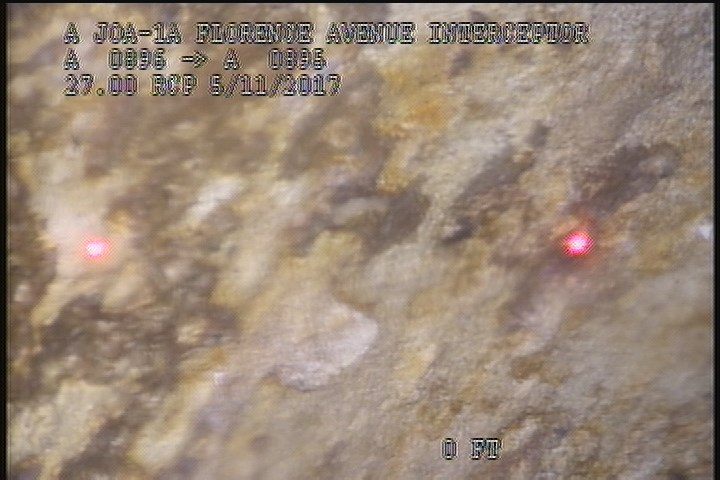

3 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG POSSIBLE VERY SPORATIC

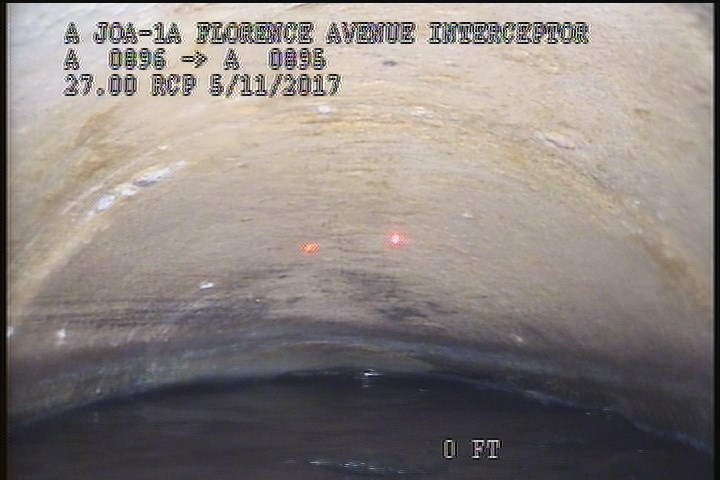

4 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | BLISTERING CONCRETE |
| 0 | MWM | — |
| 0 | MWL | — |
| 4 | MSA | DOWNLEG UPSTREAM SIPHON |
| 0 | AMH | 12:45AM |
| 3 | SAV | SEVERE AGG POSSIBLE VERY SPORATIC |
Properties (6)
- additional_info
- DOWNLEG UPSTREAM SIPHON
- custom_field_three
- BLISTERING CONCRETE -POSSIBLE SPORATIC SEVERE AGG
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-11T00:26:55-07:00
- year_laid
- 19860328
