Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 8, 2017, 10:35 AM

  • B 0841_B 0840_582017_040949.mp4

Date
05/08/2017
W/O
0624515
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00102
PipeID
P09134
Time
3:35 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
HO518
Sewer Name
B JOINT OUTFALL B - UNIT 7 RELIEF
City
MONTEREY PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
26
Purpose
Routine Assessment
Project
20170505MDM_JOINT_OUTFALL_B_UNIT_7_RELIEF
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
B 0841
Downstream MH
B 0840
Dir. of Survey
Downstream
Length Surveyed
342.7 ft.
Total Length
342.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4200
O&M Rating
8
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole B 0841 to B 0840
MH: B 0841MH: B 0840downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:10AM8 ft. MGO - General Observation - 15" VCP36 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open40.4 ft. MWL - Water Level, 10 %of cross sectional area40.4 ft. MWM - Water Mark, 30 %of cross sectional area97.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active142.7 ft. MGO - General Observation - 15" VCP206.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open227 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open265.5 ft. MWM - Water Mark, 60 %of cross sectional area342.7 ft. AMH - Downstream Manhole, Survey Ends - 4:30AM

Observation photos (3)

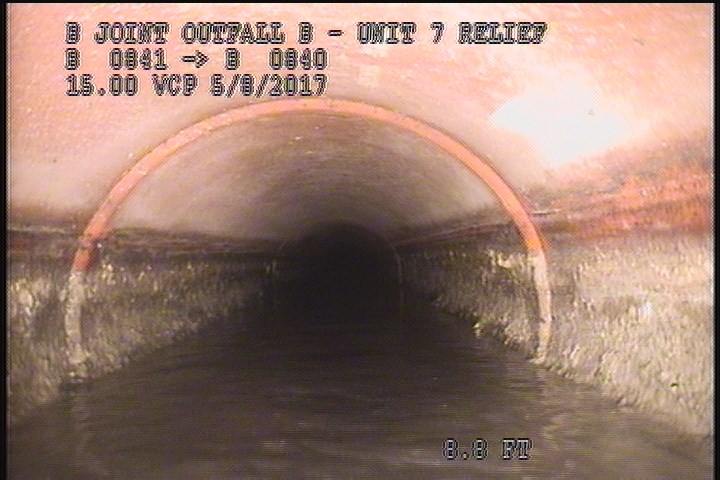

  • General Observation - 15" VCP

    8 ft. - General Observation - 15" VCP

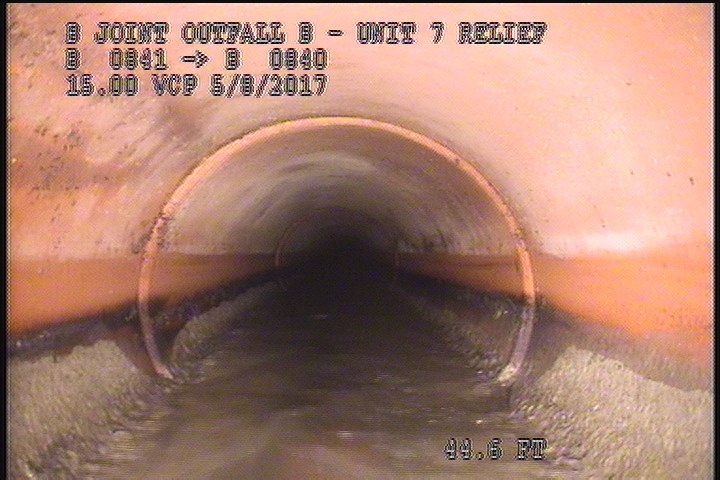

  • Water Mark, 30 %of cross sectional area

    40.4 ft. - Water Mark, 30 %of cross sectional area

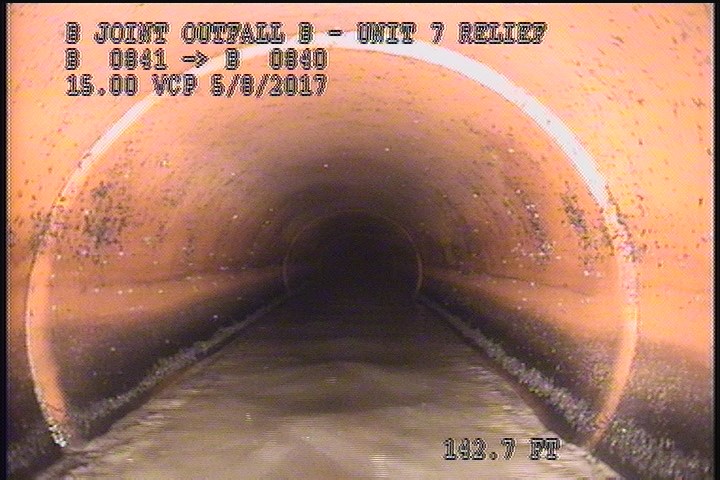

  • General Observation - 15" VCP

    142.7 ft. - General Observation - 15" VCP

All inspections of P09134Work order 0624515

Observations (13)

DistanceCodeObservation
265.5MWM—
40.4MWL—
342.7AMH4:30AM
36TFOpen
97.3TFActive
0MWL—
8MGO15" VCP
227TFOpen
142.7MGO15" VCP
40.4MWM—
0MWM—
206.5TFOpen
0AMH4:10AM

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2017-05-08T03:35:03-07:00
