Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 5, 2017, 09:16 AM

  • B 0848_B 0847_552017_025300.mp4

Date
05/05/2017
W/O
0624515
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00102
PipeID
P09141
Time
2:16 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
HO516
Sewer Name
B JOINT OUTFALL B - UNIT 7 RELIEF
City
MONTEREY PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
26
Purpose
Routine Assessment
Project
20170505MDM_JOINT_OUTFALL_B_UNIT_7_RELIEF
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
B 0848
Downstream MH
B 0847
Dir. of Survey
Downstream
Length Surveyed
3.5 ft.
Total Length
3.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
5
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole B 0848 to B 0847
MH: B 0848MH: B 0847downstream0 ft. MWL - Water Level, 60 %of cross sectional area0 ft. MWM - Water Mark, 80 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:55AM3 ft. DAGS - Deposits Attached Grease, 30 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES3.5 ft. MSA - Survey Abandoned - DOWNLEG UPSTREAM SIPHON NORTH

Observation photos (2)

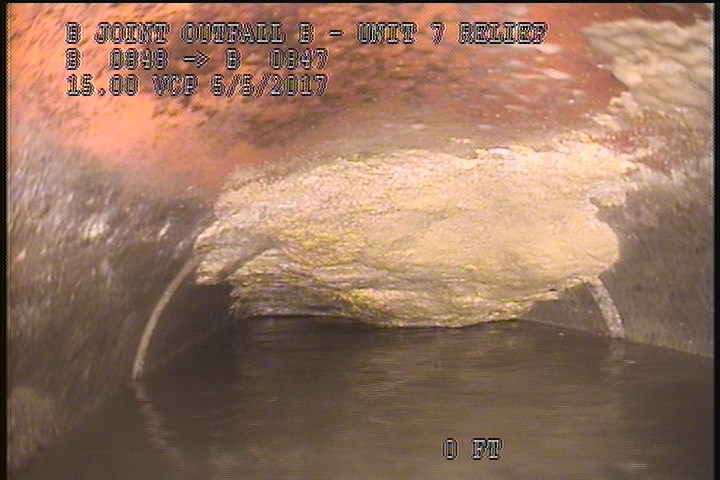

  • Deposits Attached Grease, 30 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES

    3 ft. - Deposits Attached Grease, 30 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES

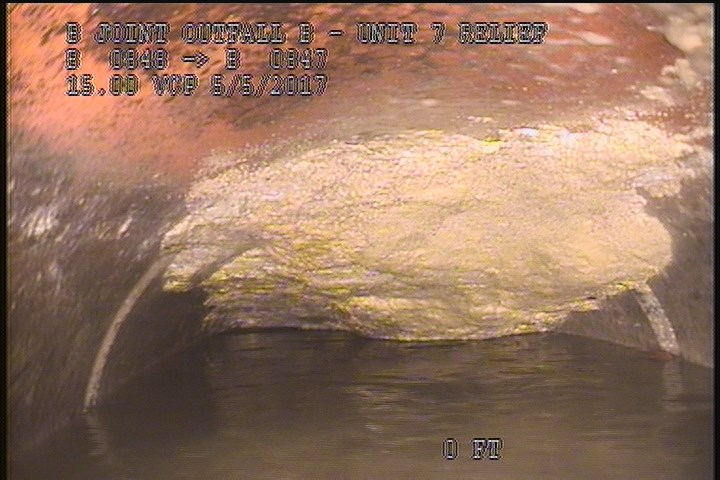

  • Survey Abandoned - DOWNLEG UPSTREAM SIPHON NORTH

    3.5 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON NORTH

All inspections of P09141Work order 0624515

Observations (5)

DistanceCodeObservation
3DAGS—
0MWL—
0MWM—
0AMH2:55AM
3.5MSADOWNLEG UPSTREAM SIPHON NORTH

Properties (5)

additional_info
DOWNLEG UPSTREAM SIPHON - NORTH
custom_field_three
GREASE COVERED
custom_field_two
5
customer
LACSD
datetime
2017-05-05T02:16:07-07:00
