Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 5, 2017, 07:37 AM

  • B 0851_B 0849_552017_004507.mp4

Date
05/05/2017
W/O
0624515
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00102
PipeID
P09143
Time
12:37 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
HO516
Sewer Name
B JOINT OUTFALL B - UNIT 7 RELIEF
City
MONTEREY PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
26
Purpose
Routine Assessment
Project
20170505MDM_JOINT_OUTFALL_B_UNIT_7_RELIEF
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
B 0849
Downstream MH
B 0851
Dir. of Survey
Upstream
Length Surveyed
278.1 ft.
Total Length
278.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole B 0849 to B 0851
MH: B 0849MH: B 0851upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:10AM45.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active121.7 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open121.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE173.4 ft. MWL - Water Level, 20 %of cross sectional area173.4 ft. MWM - Water Mark, 30 %of cross sectional area226.6 ft. MGO - General Observation - SEALED JOINTS IN TRUN243.4 ft. MGO - General Observation - 15" VCP278.1 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active278.1 ft. MWM - Water Mark, 60 %of cross sectional area278.1 ft. MWL - Water Level, 50 %of cross sectional area278.1 ft. AMH - Downstream Manhole, Survey Begins - 12:40AM278.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN STOPLOG IN PLACE

Observation photos (3)

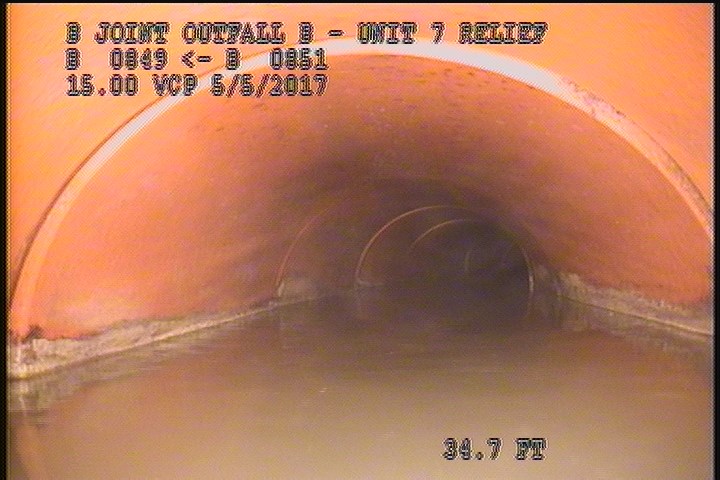

  • General Observation - 15" VCP

    34.7 ft. - General Observation - 15" VCP

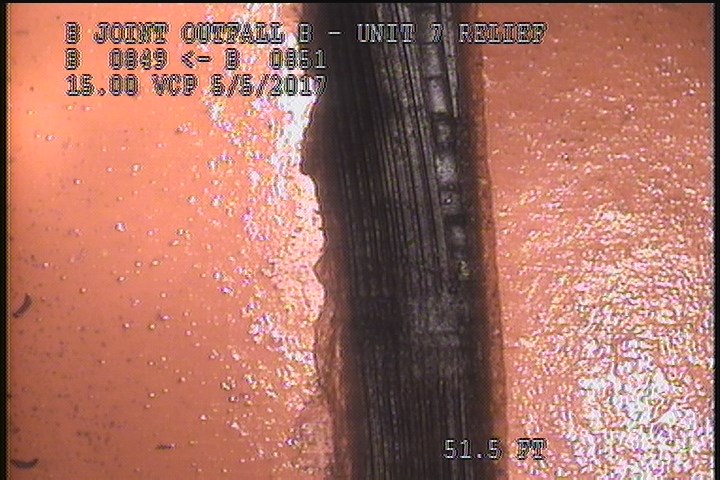

  • General Observation - SEALED JOINTS IN TRUN

    51.5 ft. - General Observation - SEALED JOINTS IN TRUN

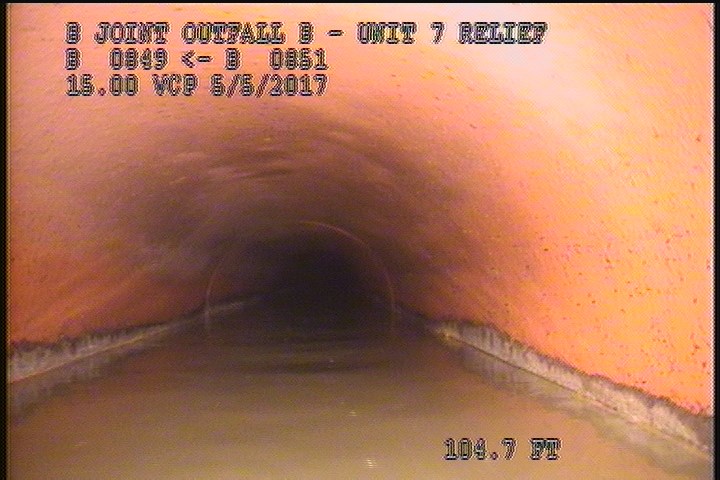

  • Water Mark, 30 %of cross sectional area

    104.7 ft. - Water Mark, 30 %of cross sectional area

All inspections of P09143Work order 0624515

Observations (13)

DistanceCodeObservation
0MGOConn. @ Mh, 9 O' Clock. Active
0MWM—
34.7MGO15" VCP
0MWL—
0AMH12:40AM
104.7MWL—
0MGOConn. @ Mh, 3 O' Clock. OPEN STOPLOG IN PLACE
156.4TBOpen
278.1AMH1:10AM
156.4FLHAIRLINE
104.7MWM—
51.5MGOSEALED JOINTS IN TRUN
232.7TBActive

Properties (4)

custom_field_two
4
customer
LACSD
datetime
2017-05-05T00:37:04-07:00
year_laid
19840320
