Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 4, 2017, 04:32 PM

  • 05 1168_05 1120_542017_095424.mp4

Date
05/04/2017
W/O
0630075
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00489
PipeID
P06368
Time
9:32 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7396
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 2
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
20170504DF_MONETA_EXTENSION_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
05 1168
Downstream MH
05 1120
Dir. of Survey
Downstream
Length Surveyed
108.6 ft.
Total Length
108.6 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 05 1168 to 05 1120
MH: 05 1168MH: 05 1120downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 9:35 AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start86.8 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES102 ft. CM - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES105.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish108.6 ft. AMH - Downstream Manhole, Survey Ends - 10:03 AM108.6 ft. MGO - General Observation - ROACHES @ MH

Observation photos (2)

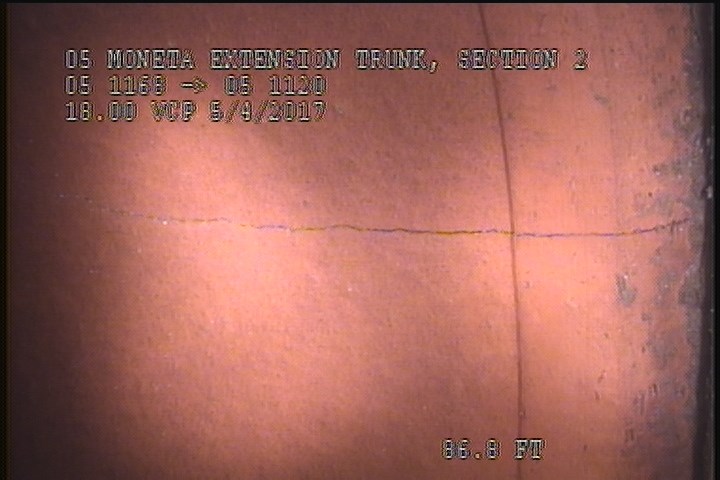

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    86.8 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

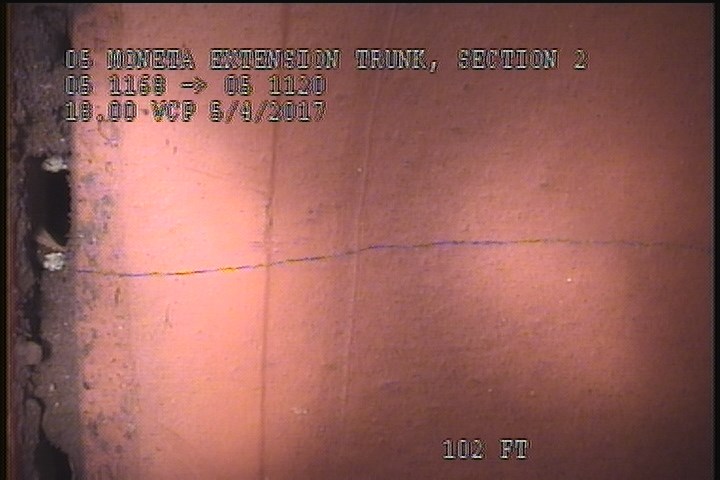

  • Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

    102 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

All inspections of P06368Work order 0630075

Observations (11)

DistanceCodeObservation
108.6AMH10:03 AM
0MWL—
0MWM—
0MGOROACHES @ MH
108.6MGOROACHES @ MH
0MGOConn. @ Mh, 3 O' Clock. Active
2SSS—
0AMH9:35 AM
105.9SSS—
102CM—
86.8CL—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2017-05-04T09:32:49-07:00
