Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 4, 2017, 03:33 PM

  • 05 1132_05 1131_542017_084353.mp4

Date
05/04/2017
W/O
0630075
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00489
PipeID
P06368
Time
8:33 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7395
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 2
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
20170504DF_MONETA_EXTENSION_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 1132
Downstream MH
05 1131
Dir. of Survey
Downstream
Length Surveyed
23.2 ft.
Total Length
23.2 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
12
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 05 1132 to 05 1131
MH: 05 1132MH: 05 1131downstream0 ft. AMH - Upstream Manhole, Survey Begins - 8:40 AM0.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0.1 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0.1 ft. MWM - Water Mark, 30 %of cross sectional area0.1 ft. MWL - Water Level, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7.5 ft. B - Broken, from 08 to 03 o'clock, within 8 inches of joint: YES11.5 ft. CM - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES14.7 ft. MGP - General Photograph - SPALLING19.6 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES23.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish23.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish23.2 ft. MSA - Survey Abandoned - INSPECTIN COMPLETE

Observation photos (6)

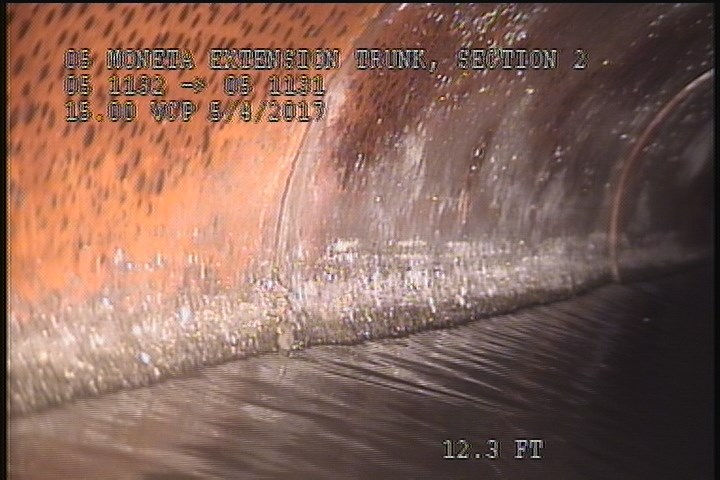

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

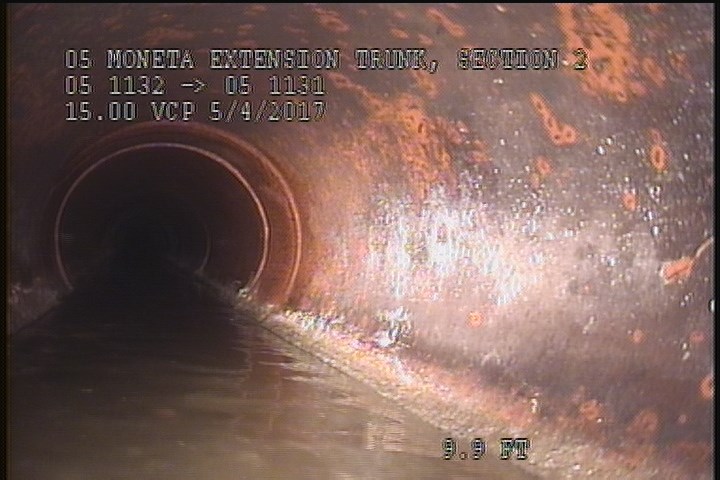

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

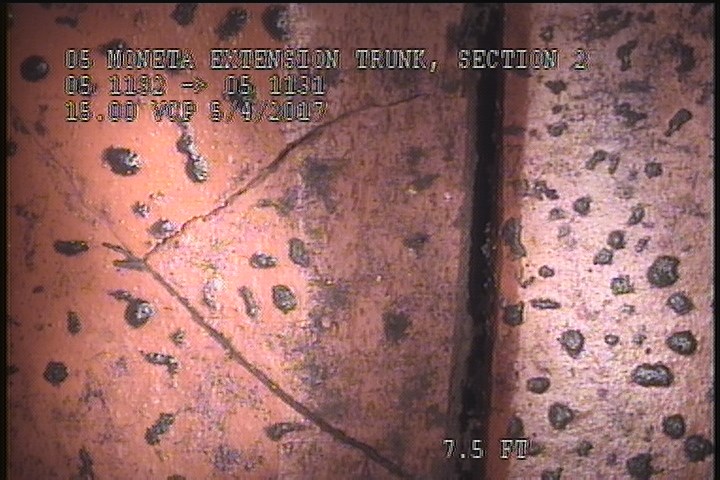

  • Broken, from 08 to 03 o'clock, within 8 inches of joint: YES

    7.5 ft. - Broken, from 08 to 03 o'clock, within 8 inches of joint: YES

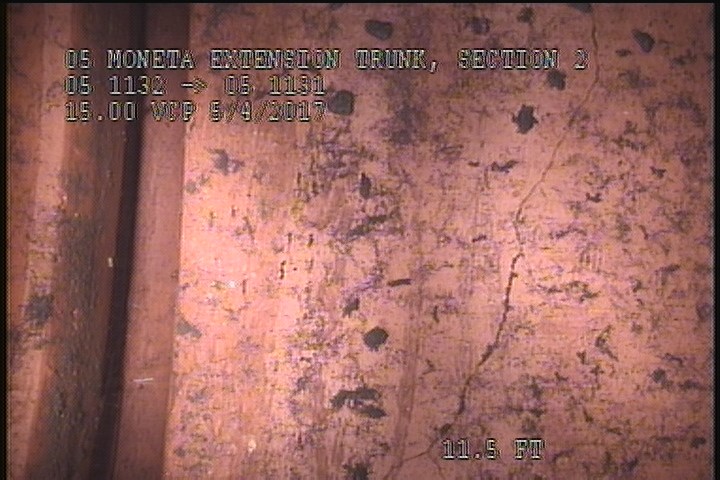

  • Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

    11.5 ft. - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

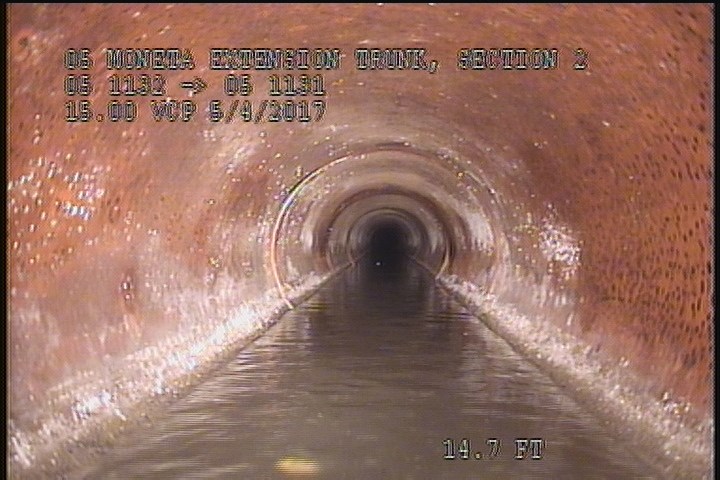

  • General Photograph - SPALLING

    14.7 ft. - General Photograph - SPALLING

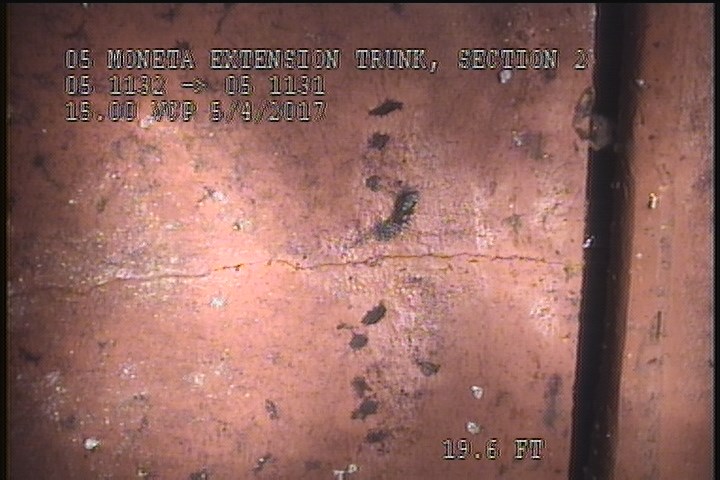

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    19.6 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

All inspections of P06368Work order 0630075

Observations (14)

DistanceCodeObservation
19.6CL—
7.5B—
0.1MGOConn. @ Mh, 3 O' Clock. Active
23.2SSS—
0.1MGOConn. @ Mh, 9 O' Clock. Active
0AMH8:40 AM
14.7MGPSPALLING
2DAGS—
2SSS—
23.2DAGS—
0.1MWM—
23.2MSAINSPECTIN COMPLETE
11.5CM—
0.1MWL—

Properties (4)

additional_info
INSPECTION WAS ABANDONED 20' D/S OF MH 1132
custom_field_two
5
customer
LACSD
datetime
2017-05-04T08:33:54-07:00
