Wastewater/Activity/PacpInspection/1.0Dec 24, 2015, 08:21 AM
14 0433_14 0432_24122015_002157.mp4
- Date
- 12/24/2015
- W/O
- 541758
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00578
- PipeID
- P18518
- Time
- 12:21 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3058
- Sewer Name
- 14 TRUNK "B"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_541758_TV14019_DEC2015
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 14 0433
- Downstream MH
- 14 0432
- Dir. of Survey
- Downstream
- Length Surveyed
- 382.1 ft.
- Total Length
- 382.1 ft.
- Structural Index
- 3
- Structural Quick
- 3222
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (3)

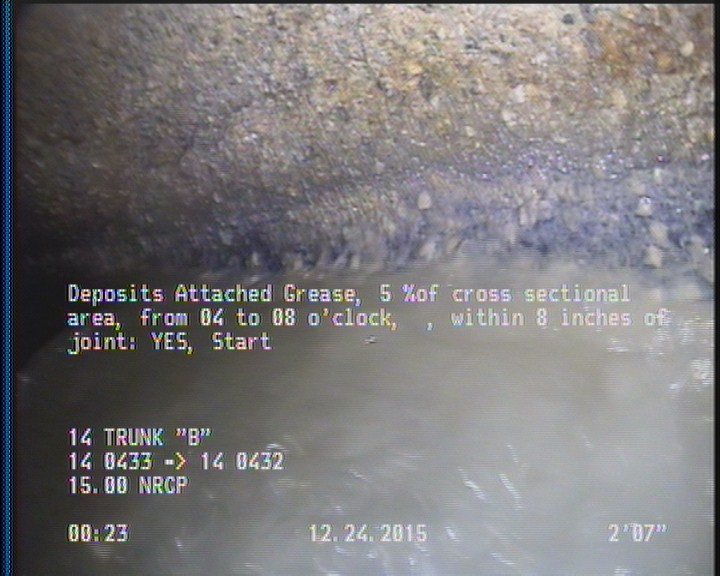

2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

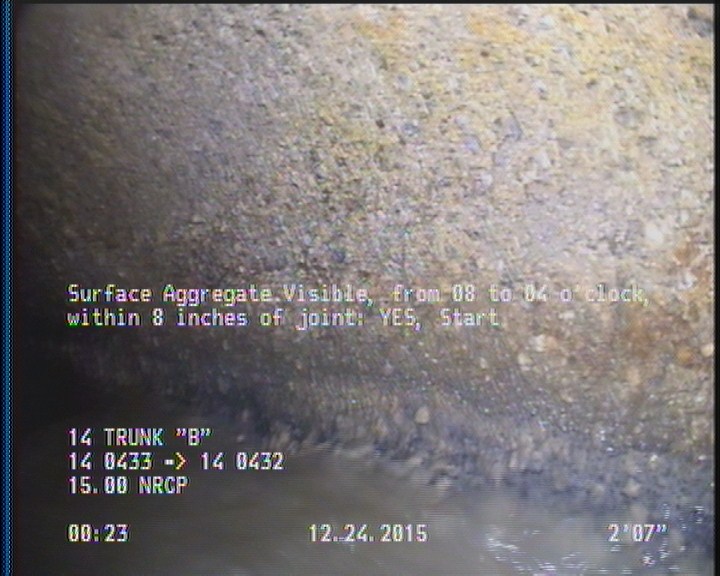

2.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

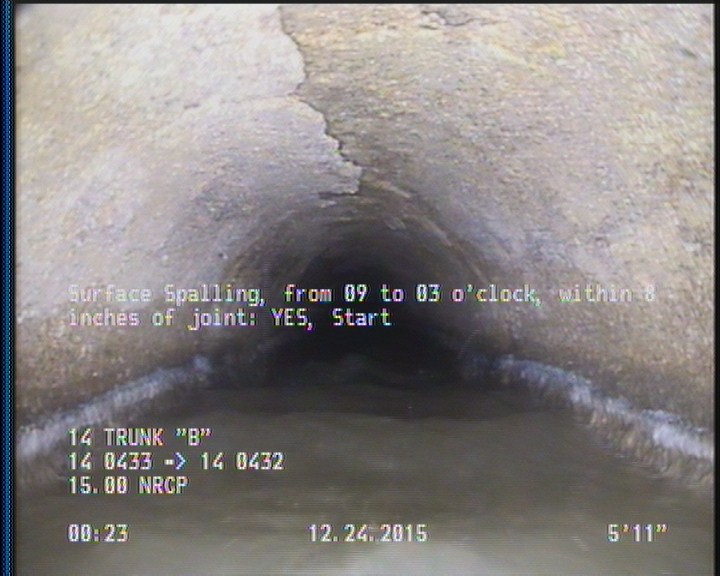

5.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (22)
| Distance | Code | Observation |
|---|---|---|
| 2.6 | DAGS | — |
| 189.6 | TFC | — |
| 112.2 | TFC | — |
| 0 | MWM | — |
| 0 | AMH | 14 0433 |
| 379.9 | SSS | — |
| 2.6 | SAV | — |
| 316.7 | TFC | — |
| 379.9 | SAV | — |
| 382.1 | AMH | 14 0432 |
| 214.4 | TFC | — |
| 161.8 | TFC | — |
| 263.2 | TFC | — |
| 5.9 | SSS | — |
| 0 | MWL | — |
| 59.5 | TFC | — |
| 136.5 | TFC | — |
| 292.3 | TFC | — |
| 379.9 | DAGS | — |
| 239.4 | TFC | — |
| 39.2 | TFC | — |
| 340.9 | TFC | — |
Properties (5)
- additional_info
- SC204197
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2015-12-24T00:21:45-08:00
- sewer_category
- GRAVITY
