Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 28, 2016, 08:18 AM

  • 05 0139_05 0138_20160128_003033.mp4

Date
01/28/2016
W/O
541742
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00431
PipeID
P05431
Time
12:18 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2784
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
HAWTHORNE
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_541742_TV05147_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
05 0139
Downstream MH
05 0138
Dir. of Survey
Downstream
Length Surveyed
320 ft.
Total Length
320 ft.
Structural Index
3
Structural Quick
3400
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 05 0139 to 05 0138
MH: 05 0139MH: 05 0138downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 01392.7 ft. MGO - General Observation - MAG COAT38.1 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES64.6 ft. SAV - Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO92.8 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO150 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Start312.1 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Finish320 ft. AMH - Downstream Manhole, Survey Ends - 05 0138320 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK

Observation photos (4)

  • Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO

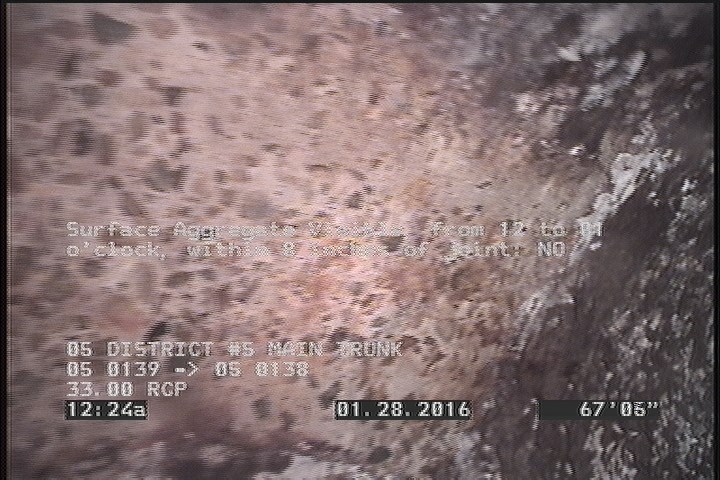

    64.6 ft. - Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO

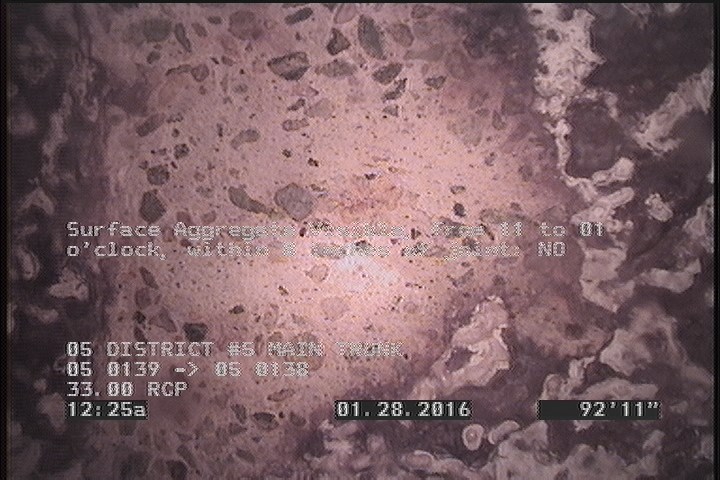

    92.8 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Start

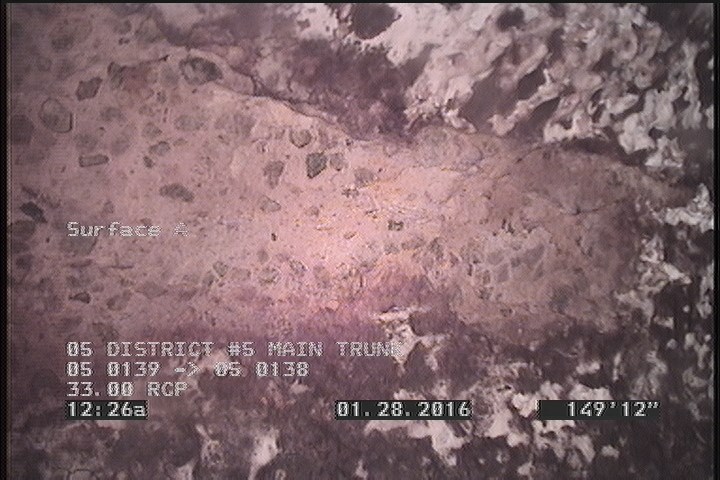

    150 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Start

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Finish

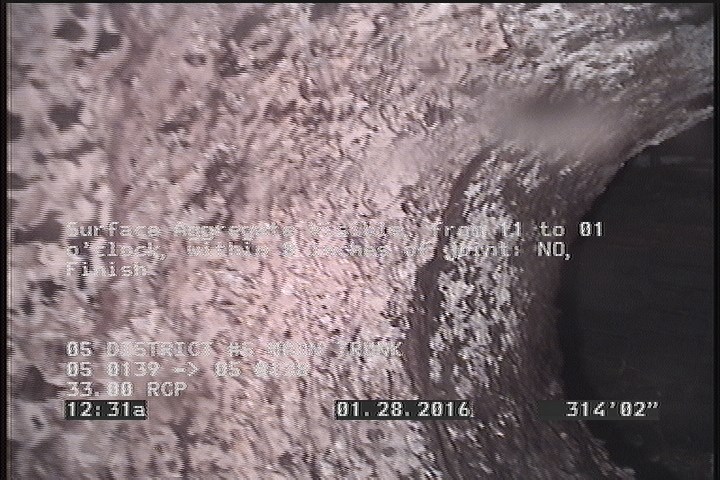

    312.1 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Finish

All inspections of P05431Work order 541742

Observations (11)

DistanceCodeObservation
38.1SAV—
150SAV—
0MWM—
312.1SAV—
92.8SAV—
2.7MGOMAG COAT
0MWL—
64.6SAV—
320AMH05 0138
320MGOLATERAL AT MH 3 OCLOCK
0AMH05 0139

Properties (4)

additional_info
SC207096
custom_field_two
3
customer
LACSD
datetime
2016-01-28T00:18:47-08:00
