Wastewater/Activity/PacpInspection/1.0Feb 8, 2016, 02:06 PM
05 0163_05 0162_20160208_063051.mp4
- Date
- 02/08/2016
- W/O
- 541742
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00431
- PipeID
- P05455
- Time
- 6:06 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3138
- Sewer Name
- 05 DISTRICT #5 MAIN TRUNK
- City
- HAWTHORNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_541742_TV05147_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 05 0163
- Downstream MH
- 05 0162
- Dir. of Survey
- Downstream
- Length Surveyed
- 327.8 ft.
- Total Length
- 327.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412L
- O&M Rating
- 132
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 132
Observation photos (2)

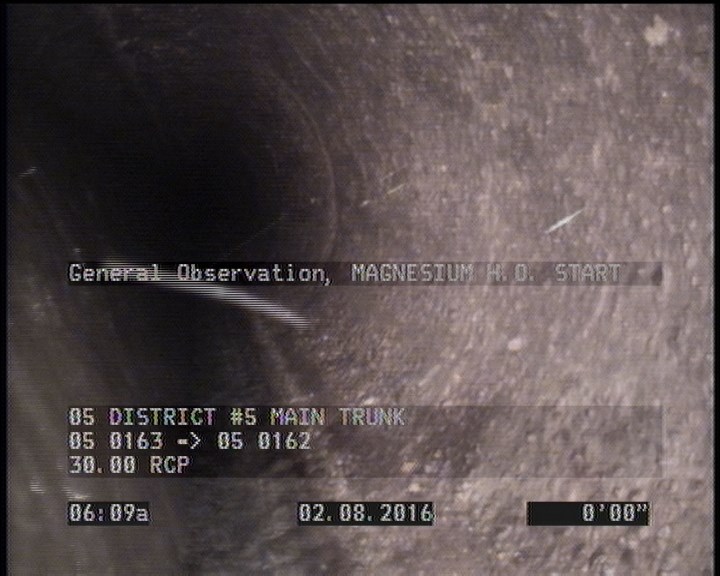

2 ft. - General Observation - MAGNESIUM H.O. START

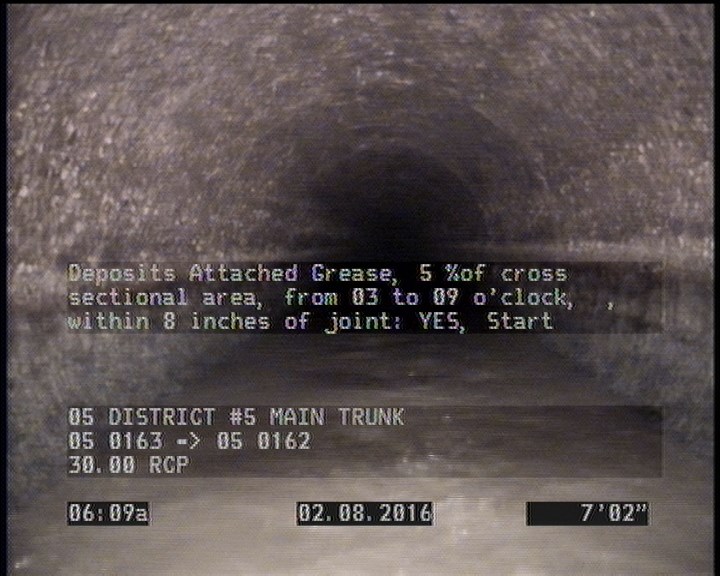

7.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 7.2 | DAGS | — |
| 326.6 | DAGS | — |
| 327.8 | MGO | LATERAL AT MH 12 OCLOCK |
| 327.8 | AMH | 05 0162 |
| 0 | MWL | — |
| 327.8 | MGO | LATERAL AT MH 3 OCLOCK |
| 0 | AMH | 05 0163 |
| 0.1 | MWM | — |
| 2 | MGO | MAGNESIUM H.O. START |
Properties (4)
- additional_info
- SC225525
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-02-08T06:06:00-08:00
