Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 29, 2016, 06:39 AM

  • 05 0130_05 0129_20160128_224640.mp4

Date
01/28/2016
W/O
541742
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00431
PipeID
P05420
Time
10:39 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2785
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
HAWTHORNE
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_541742_TV05147_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
05 0130
Downstream MH
05 0129
Dir. of Survey
Downstream
Length Surveyed
33.6 ft.
Total Length
33.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 05 0130 to 05 0129
MH: 05 0130MH: 05 0129downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 01300 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area3.7 ft. MGO - General Observation - MAG COAT3.7 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start33.6 ft. MSA - Survey Abandoned - CAM BLKD BY DEBRIS33.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Finish

Observation photos (1)

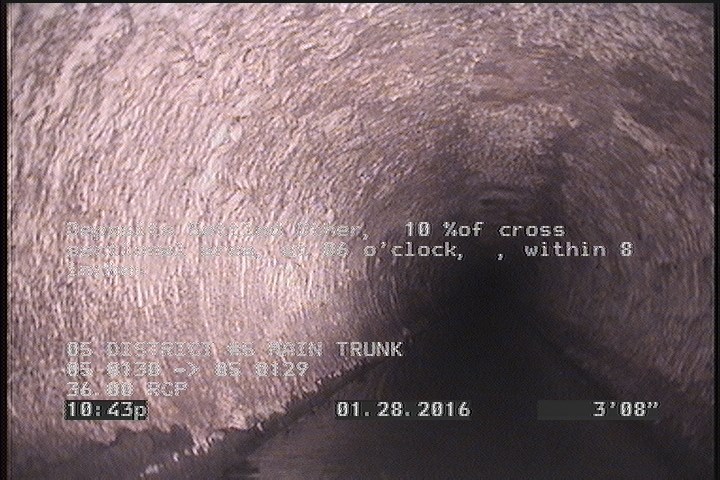

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

    3.7 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

All inspections of P05420Work order 541742

Observations (7)

DistanceCodeObservation
0AMH05 0130
3.7MGOMAG COAT
33.6MSACAM BLKD BY DEBRIS
0MWM—
3.7DSZ—
33.6DSZ—
0MWL—

Properties (4)

additional_info
SC207097
custom_field_two
5
customer
LACSD
datetime
2016-01-28T22:39:24-08:00
