Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 8, 2016, 02:55 PM

  • 05 0166_05 2425_20160208_070306.mp4

Date
02/08/2016
W/O
541742
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00431
PipeID
P07559
Time
6:55 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3138
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
10
Purpose
Routine Assessment
Project
WO_541742_TV05147_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
05 0166
Downstream MH
05 2425
Dir. of Survey
Downstream
Length Surveyed
33.8 ft.
Total Length
33.8 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2500
O&M Rating
10
Overall Index
2
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 05 0166 to 05 2425
MH: 05 0166MH: 05 2425downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 01660 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK0 ft. MGO - General Observation - LATERAL AT MH 6 OCLOCK0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - MAGNESIUM H.O. START7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start20.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start31.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish31.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish33.8 ft. AMH - Downstream Manhole, Survey Ends - 05 2425

Observation photos (2)

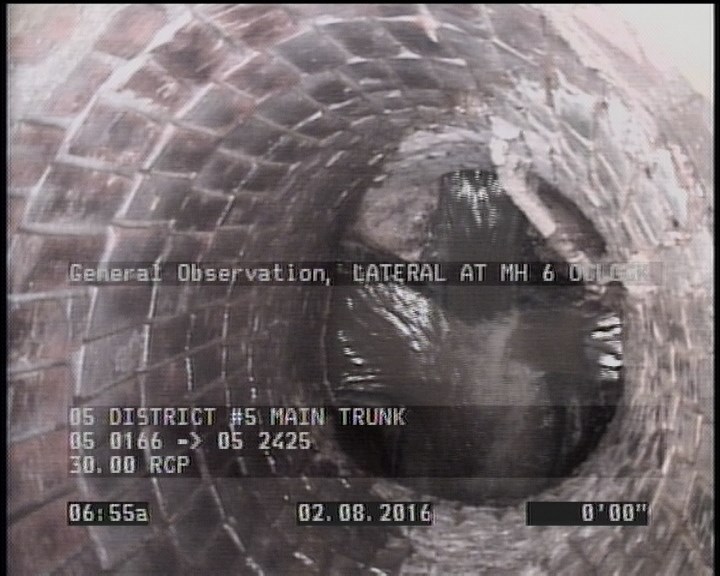

  • General Observation - LATERAL AT MH 6 OCLOCK

    0 ft. - General Observation - LATERAL AT MH 6 OCLOCK

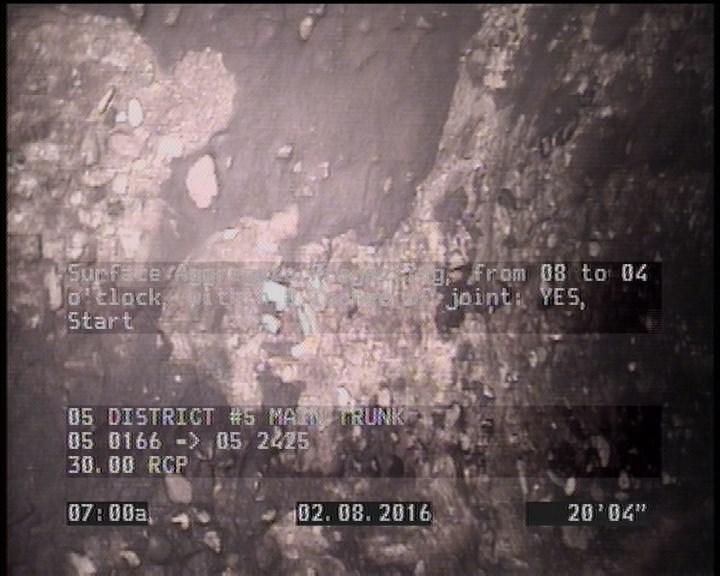

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    20.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P07559Work order 541742

Observations (12)

DistanceCodeObservation
33.8AMH05 2425
0AMH05 0166
0MWM—
20.4SAP—
0MGOLATERAL AT MH 9 OCLOCK
0MGOLATERAL AT MH 3 OCLOCK
31.3DAGS—
0MGOLATERAL AT MH 6 OCLOCK
2MGOMAGNESIUM H.O. START
31.3SAP—
0MWL—
7DAGS—

Properties (4)

additional_info
SC225525
custom_field_two
3
customer
LACSD
datetime
2016-02-08T06:55:00-08:00
