Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 28, 2016, 07:08 AM

  • 05 0142_05 0141_20160127_233334.mp4

Date
01/27/2016
W/O
541742
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00431
PipeID
P05434
Time
11:08 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2784
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
HAWTHORNE
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_541742_TV05147_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
05 0142
Downstream MH
05 0141
Dir. of Survey
Downstream
Length Surveyed
327.4 ft.
Total Length
327.4 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 05 0142 to 05 0141
MH: 05 0142MH: 05 0141downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 01420 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK0 ft. MGO - General Observation - LATERAL AT MH 6 OCLOCK0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area6 ft. MGO - General Observation - MAG COAT29.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start170.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start324.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish324.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish326.9 ft. MGO - General Observation - LATERAL AT MH 12 OCLOCK CAPPED327.4 ft. AMH - Downstream Manhole, Survey Ends - 05 0141

Observation photos (5)

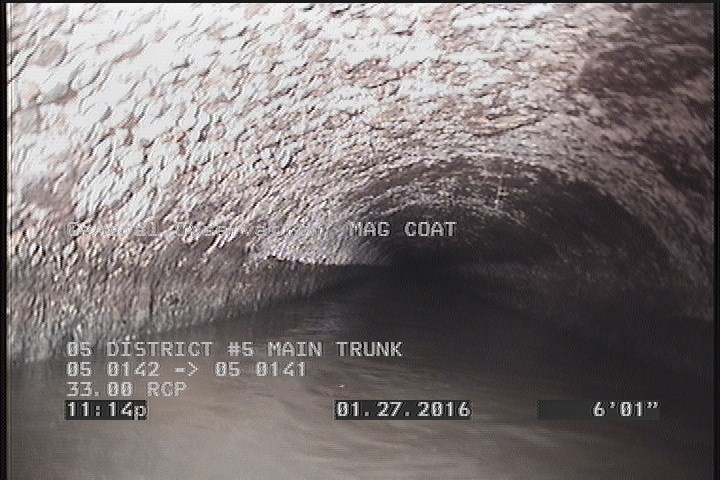

  • General Observation - MAG COAT

    6 ft. - General Observation - MAG COAT

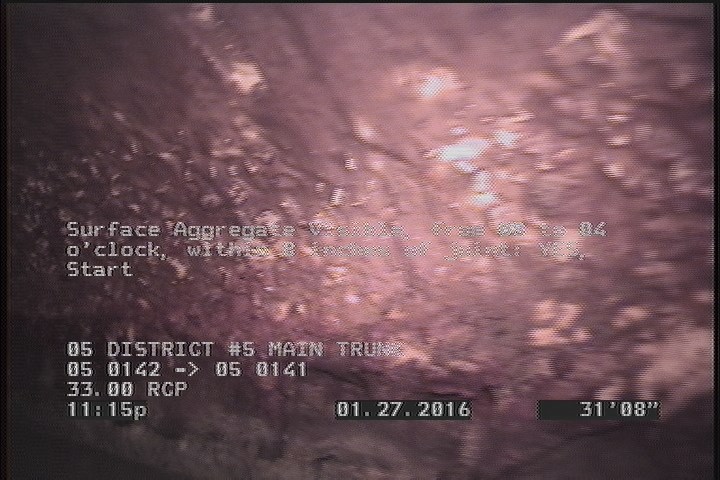

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    29.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

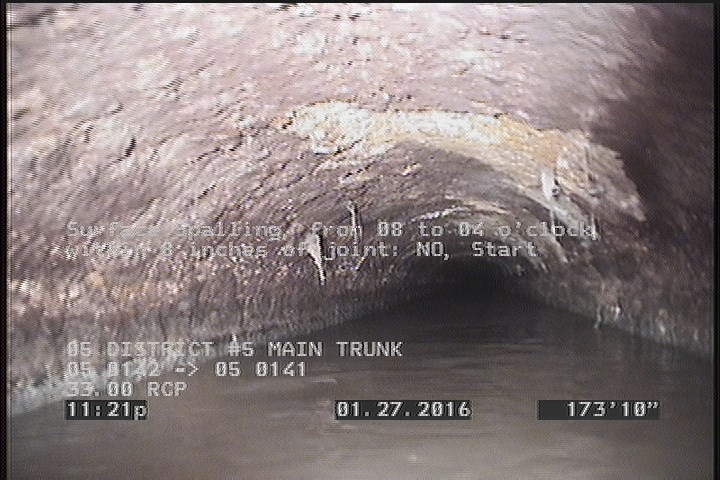

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    170.4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

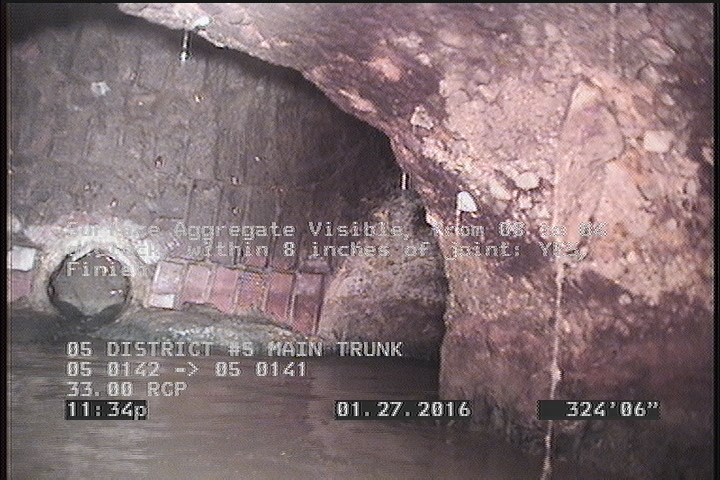

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    324.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

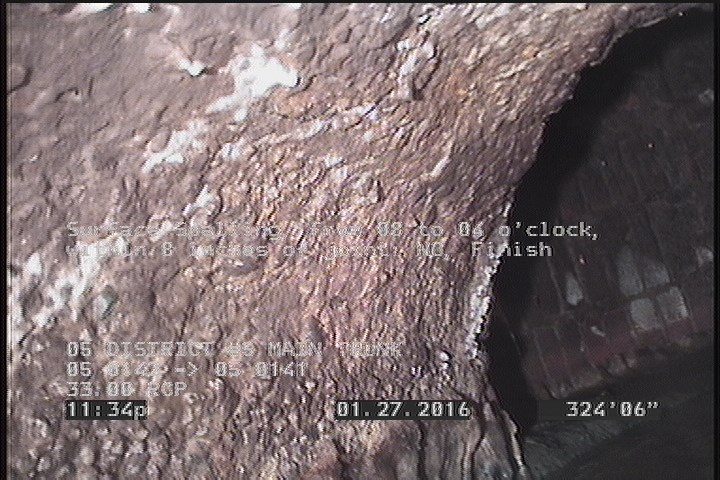

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish

    324.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish

All inspections of P05434Work order 541742

Observations (12)

DistanceCodeObservation
324.5SAV—
0AMH05 0142
0MGOLATERAL AT MH 3 OCLOCK
327.4AMH05 0141
0MGOLATERAL AT MH 6 OCLOCK
324.5SSS—
0MWL—
326.9MGOLATERAL AT MH 12 OCLOCK CAPPED
0MWM—
29.2SAV—
170.4SSS—
6MGOMAG COAT

Properties (4)

additional_info
SC207096
custom_field_two
3
customer
LACSD
datetime
2016-01-27T23:08:57-08:00
