Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 28, 2016, 10:22 AM

  • 05 0137_05 0136_20160128_023428.mp4

Date
01/28/2016
W/O
541742
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00431
PipeID
P05428
Time
2:22 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2784
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
HAWTHORNE
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_541742_TV05147_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
05 0136
Downstream MH
05 0137
Dir. of Survey
Upstream
Length Surveyed
333.8 ft.
Total Length
333.8 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 05 0136 to 05 0137
MH: 05 0136MH: 05 0137upstream0 ft. AMH - Upstream Manhole, Survey Ends - 05 01370.1 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK0.2 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: NO, Finish17.5 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 05 to 06 o'clock, , within 8 inches of joint: NO18.3 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Finish325.7 ft. DSF - Deposits Settled Fine, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start328.1 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: NO, Start333.8 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK333.8 ft. AMH - Downstream Manhole, Survey Begins - 05 0136333.8 ft. MWM - Water Mark, 10 %of cross sectional area333.8 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (2)

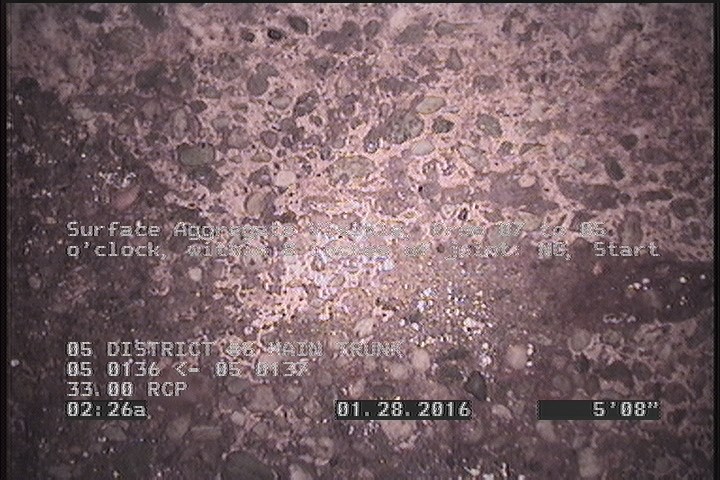

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: NO, Start

    5.7 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: NO, Start

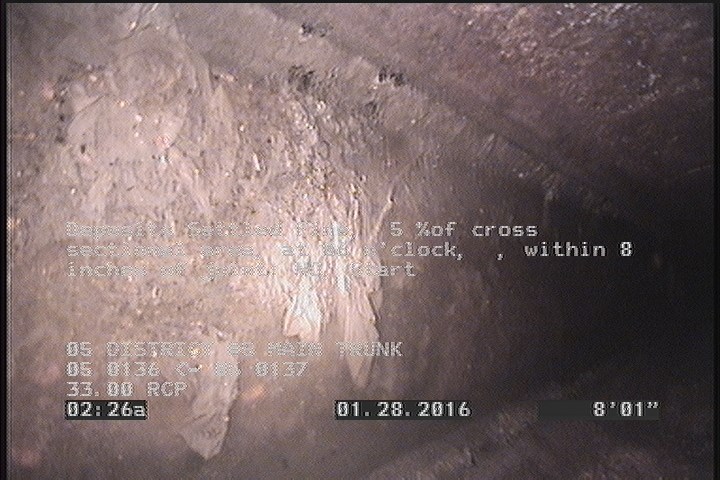

  • Deposits Settled Fine, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

    8.1 ft. - Deposits Settled Fine, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

All inspections of P05428Work order 541742

Observations (11)

DistanceCodeObservation
333.6SAV—
8.1DSF—
0MGOLATERAL AT MH 3 OCLOCK
0AMH05 0136
0MWM—
0MWL—
333.7MGOLATERAL AT MH 3 OCLOCK
5.7SAV—
333.8AMH05 0137
315.5DSF—
316.3DSZ—

Properties (4)

additional_info
SC207096
custom_field_two
3
customer
LACSD
datetime
2016-01-28T02:22:19-08:00
