Wastewater/Activity/PacpInspection/1.0Jan 5, 2016, 10:04 AM
- Date
- 01/05/2016
- W/O
- 541701
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00316
- PipeID
- P07921
- Time
- 2:04 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2903
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- POMONA, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_541701_TV21025_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- A 0712
- Downstream MH
- A 0711
- Dir. of Survey
- Downstream
- Length Surveyed
- 185.7 ft.
- Total Length
- 185.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 72
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 72
Observation photos (4)

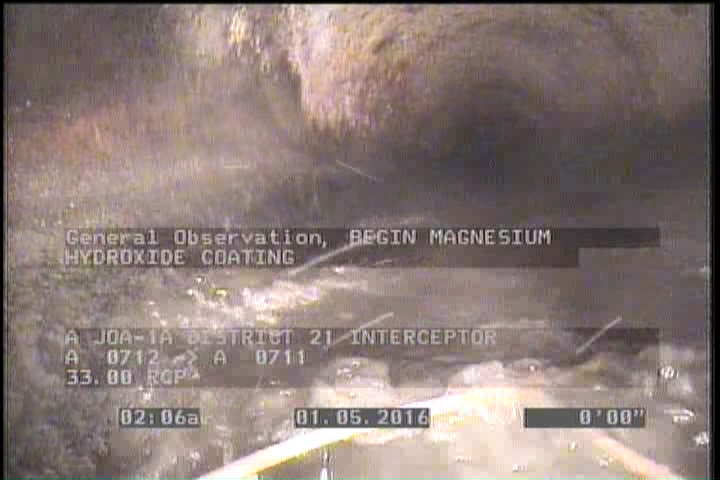

0.1 ft. - General Observation - DROP CONNECTION AT MANHOLE ACTIVE 3 O'CLOCK

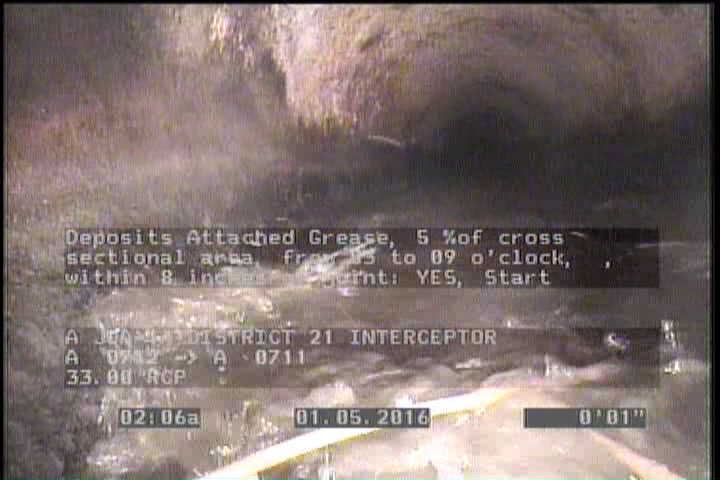

0.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

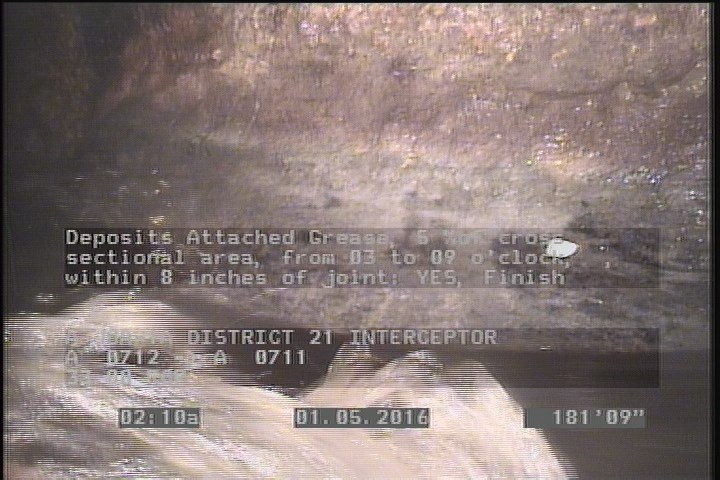

181.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish

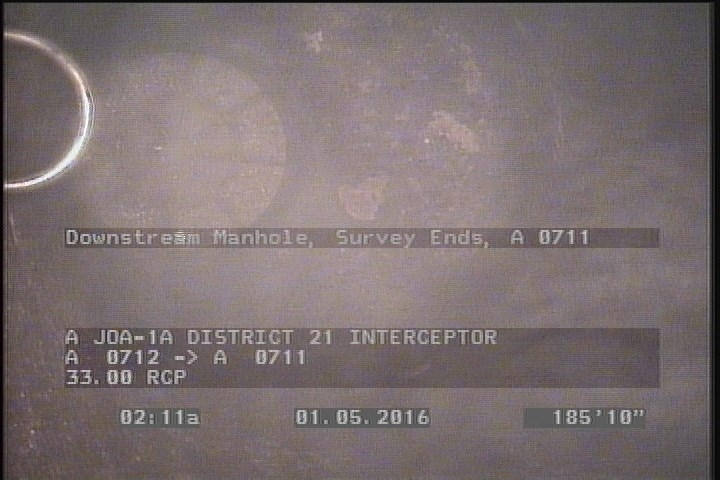

185.7 ft. - Downstream Manhole, Survey Ends - A 0711
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 185.7 | AMH | A 0711 |
| 0 | MWM | — |
| 0 | AMH | A 0712 |
| 0.1 | MGO | DROP CONNECTION AT MANHOLE ACTIVE 3 O'CLOCK |
| 181.8 | DAGS | — |
| 0.1 | DAGS | — |
| 2 | MGO | BEGIN MAGNESIUM HYDROXIDE COATING |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC224482
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-01-05T02:04:00-08:00
- sewer_category
- GRAVITY
- year_laid
- 19711026
