Wastewater/Activity/PacpInspection/1.0May 3, 2017, 05:55 PM
05 1118_05 1117_532017_105801.mp4
- Date
- 05/03/2017
- W/O
- 0630075
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00489
- PipeID
- P06353
- Time
- 10:55 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7395
- Sewer Name
- 05 MONETA EXTENSION TRUNK, SECTION 2
- City
- GARDENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20170501DF_MONETA_EXTENSION_TRUNK_SECTION_2
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 05 1118
- Downstream MH
- 05 1117
- Dir. of Survey
- Downstream
- Length Surveyed
- 366 ft.
- Total Length
- 366 ft.
- Structural Index
- 3
- Structural Quick
- 3322
- Structural Rating
- 13
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (5)

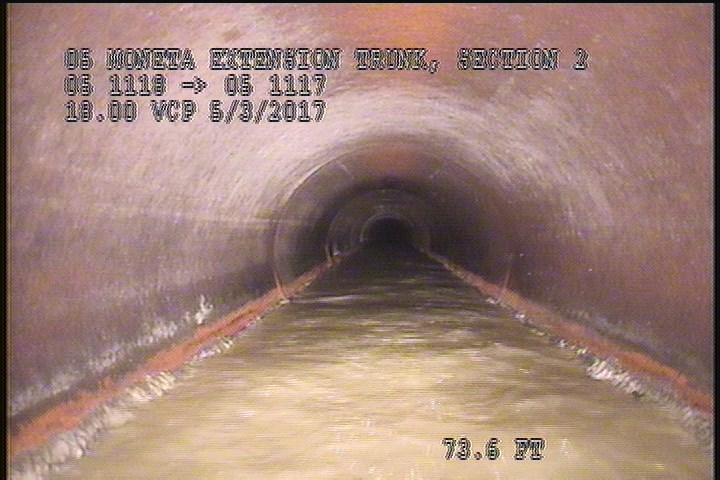

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

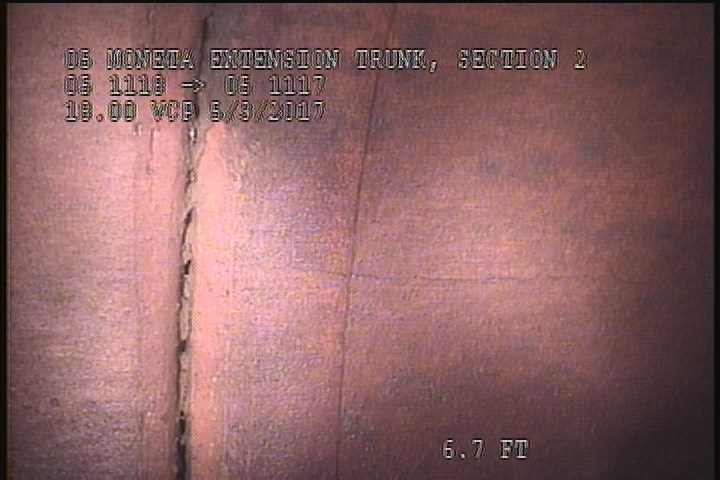

6.7 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

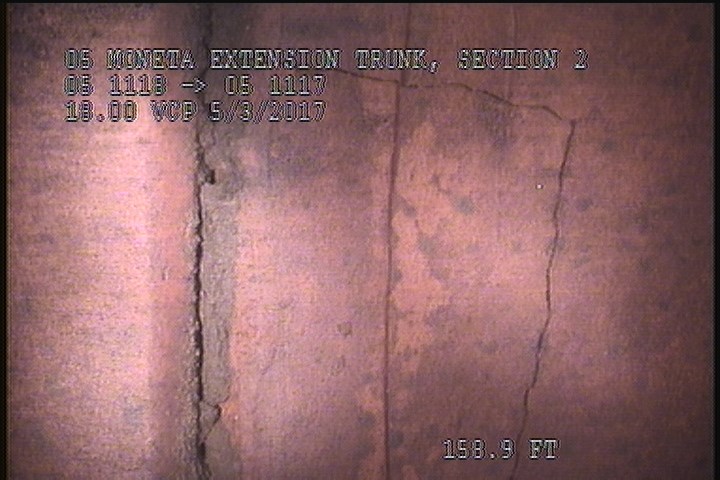

158.9 ft. - Crack Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

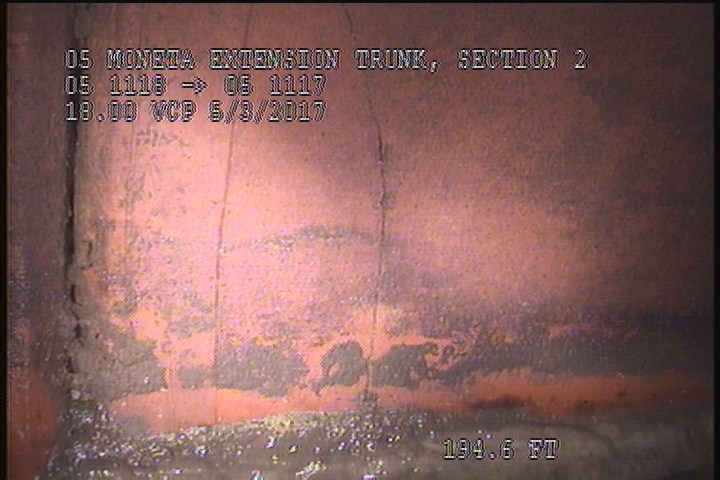

194.6 ft. - Crack Spiral, from 07 to 09 o'clock, within 8 inches of joint: YES

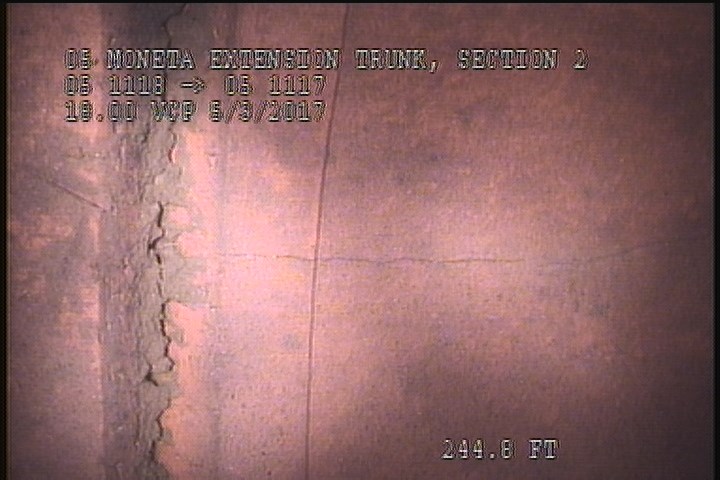

244.8 ft. - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 158.9 | CM | — |
| 0 | MWM | — |
| 244.8 | CM | — |
| 366 | AMH | 11:22 AM |
| 0 | AMH | 10:55 AM |
| 2 | SSS | — |
| 364.3 | MGO | Grease Throughout The Reach (5%) |
| 6.7 | CM | — |
| 220.8 | TBA | — |
| 364.3 | SSS | — |
| 194.6 | CS | — |
| 0 | MWL | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-03T10:55:19-07:00
