Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 3, 2017, 05:04 PM

  • 05 1119_05 1118_532017_102508.mp4

Date
05/03/2017
W/O
0630075
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00489
PipeID
P06354
Time
10:04 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7395
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 2
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
20170501DF_MONETA_EXTENSION_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
05 1119
Downstream MH
05 1118
Dir. of Survey
Downstream
Length Surveyed
367 ft.
Total Length
367 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 1119 to 05 1118
MH: 05 1119MH: 05 1118downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:15 AM0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 4", 4"8 ft. MGO - General Observation - Grease Throughout The Reach (5%)79.4 ft. MGO - General Observation - SPALLING168.4 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES170.5 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"242.8 ft. MGP - General Photograph313.2 ft. MGP - General Photograph - SPALLING333.6 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES349.5 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"351.8 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"365.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish367 ft. AMH - Downstream Manhole, Survey Ends - 10:54 AM

Observation photos (8)

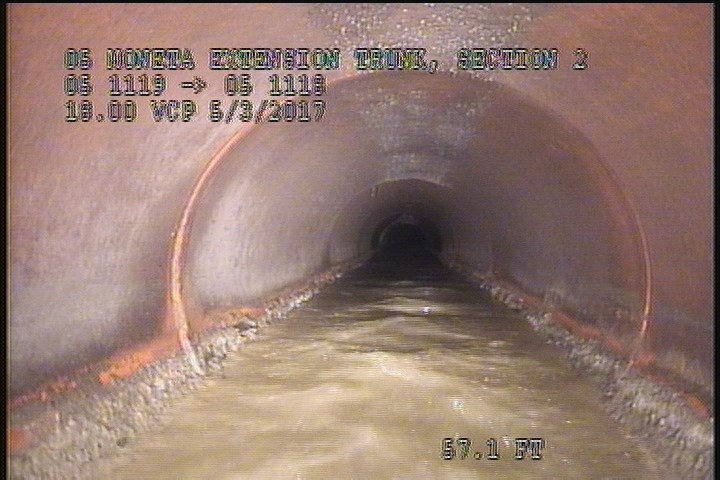

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

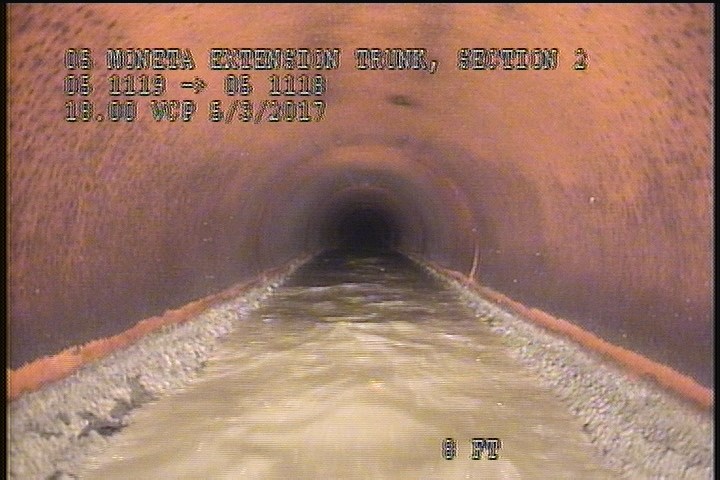

  • General Observation - Grease Throughout The Reach (5%)

    8 ft. - General Observation - Grease Throughout The Reach (5%)

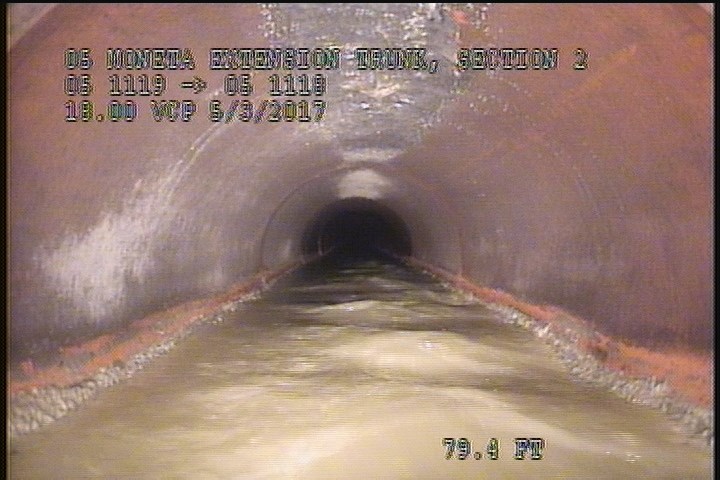

  • General Observation - SPALLING

    79.4 ft. - General Observation - SPALLING

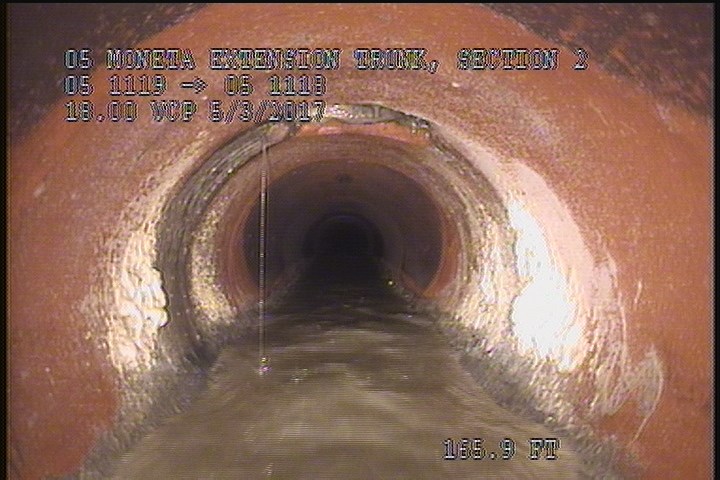

  • Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    168.4 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

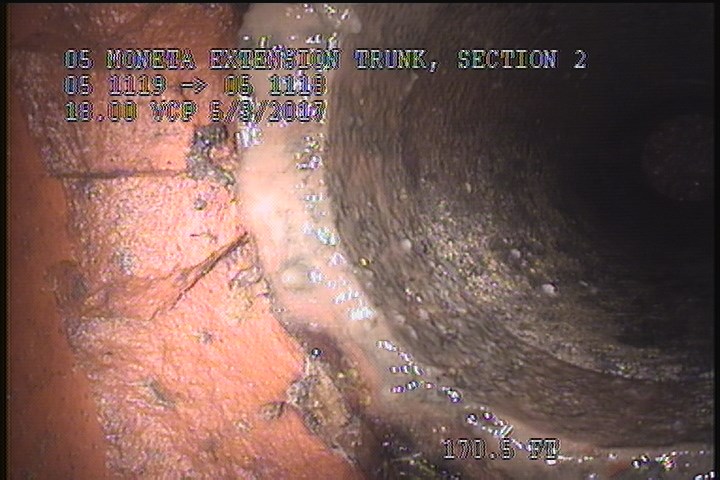

  • Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"

    170.5 ft. - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"

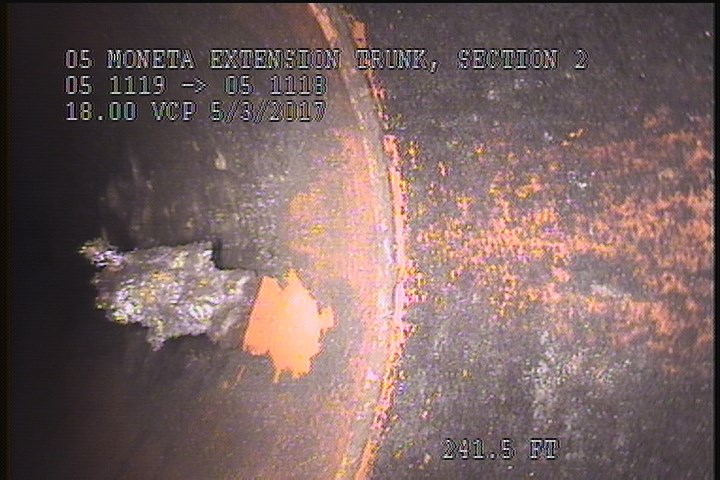

  • General Photograph

    242.8 ft. - General Photograph

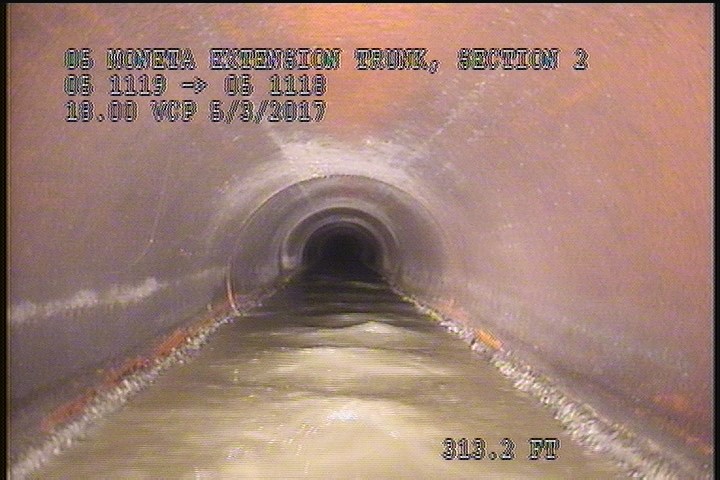

  • General Photograph - SPALLING

    313.2 ft. - General Photograph - SPALLING

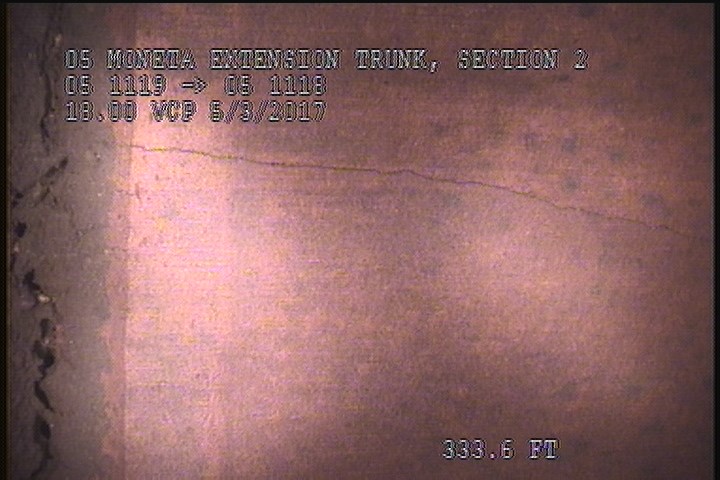

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    333.6 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P06354Work order 0630075

Observations (16)

DistanceCodeObservation
313.2MGPSPALLING
349.5TBA—
170.5TBA—
8MGOGrease Throughout The Reach (5%)
367AMH10:54 AM
351.8TBA—
242.8MGP—
0AMH10:15 AM
365.1SSS—
0MWM—
79.4MGOSPALLING
168.4DAGS—
6TBA—
333.6CL—
0MWL—
2SSS—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2017-05-03T10:04:21-07:00
