Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 2, 2017, 07:36 PM

  • 05 1122_05 1121_522017_125903.mp4

Date
05/02/2017
W/O
0630075
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00489
PipeID
P06358
Time
12:36 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7395
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 2
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
14
Purpose
Routine Assessment
Project
20170501DF_MONETA_EXTENSION_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
05 1122
Downstream MH
05 1121
Dir. of Survey
Downstream
Length Surveyed
236 ft.
Total Length
236 ft.
Structural Index
2
Structural Quick
3123
Structural Rating
9
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 05 1122 to 05 1121
MH: 05 1122MH: 05 1121downstream0 ft. MGO - General Observation - ROACHES @ MH0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 12:39 PM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start122.3 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES151.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES162.5 ft. MGO - General Observation - SPALLING188.3 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES193.2 ft. CM - Crack Multiple, from 11 to 05 o'clock, within 8 inches of joint: YES232.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish235.9 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active236 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. CAPPED236 ft. MGO - General Observation - ROACHES @ MH236 ft. AMH - Downstream Manhole, Survey Ends - 1:17 PM

Observation photos (6)

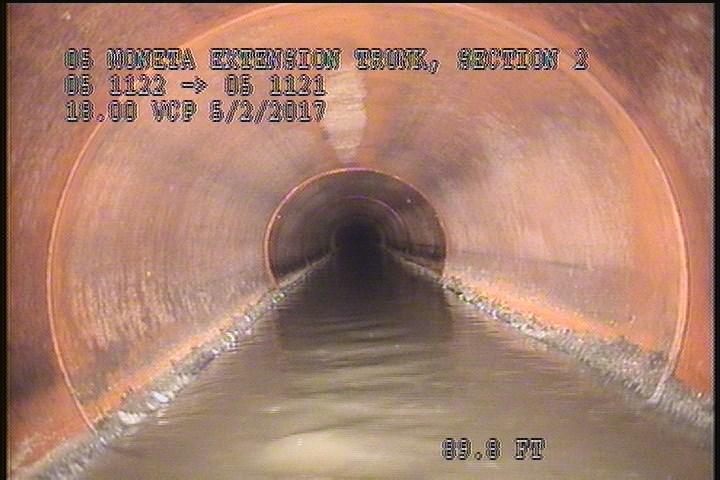

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

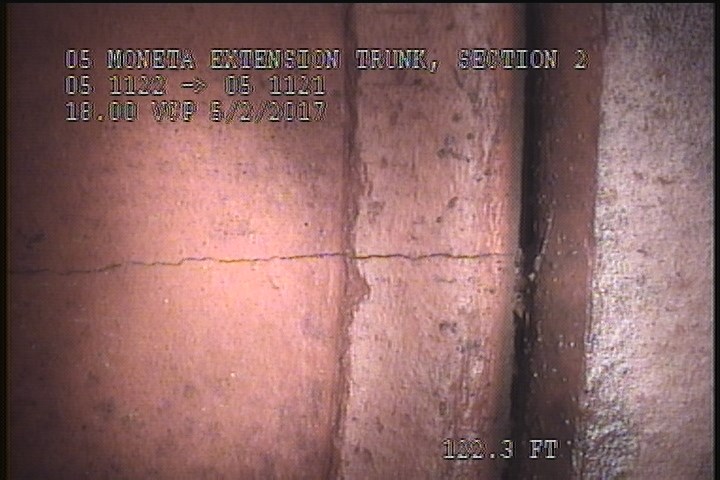

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    122.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

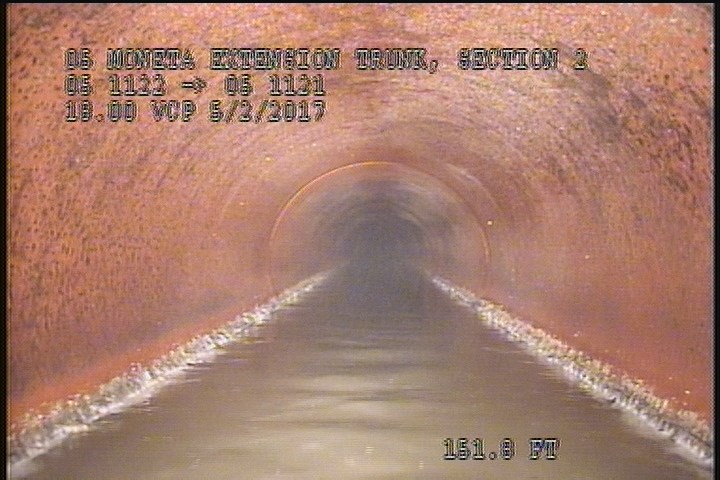

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    151.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

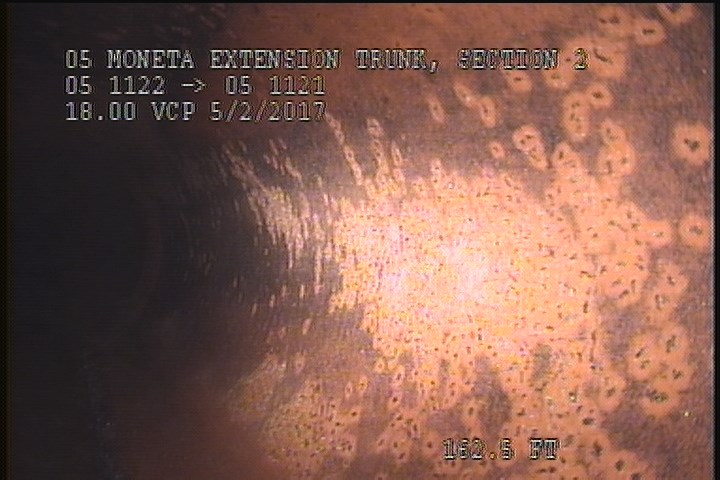

  • General Observation - SPALLING

    162.5 ft. - General Observation - SPALLING

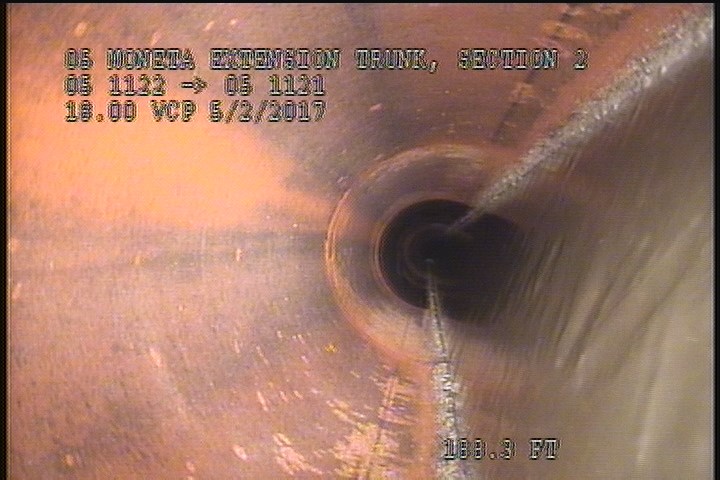

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    188.3 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

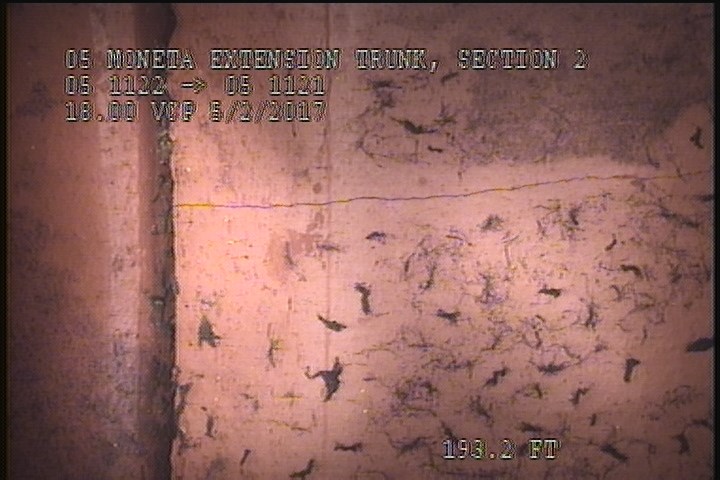

  • Crack Multiple, from 11 to 05 o'clock, within 8 inches of joint: YES

    193.2 ft. - Crack Multiple, from 11 to 05 o'clock, within 8 inches of joint: YES

All inspections of P06358Work order 0630075

Observations (17)

DistanceCodeObservation
0MGOROACHES @ MH
151.8DAGS—
122.3CL—
236MGOConn. @ Mh, 3 O' Clock. CAPPED
0MWM—
0MGOConn. @ Mh, 9 O' Clock. Active
0AMH12:39 PM
0MGOConn. @ Mh, 3 O' Clock. Active
232.4SSS—
236MGOROACHES @ MH
236AMH1:17 PM
0MWL—
162.5MGOSPALLING
188.3CL—
2SSS—
193.2CM—
235.9MGOConn. @ Mh, 9 O' Clock. Active

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2017-05-02T12:36:13-07:00
