Wastewater/Activity/PacpInspection/1.0Dec 29, 2015, 10:51 AM
14 0907_14 0906_29122015_025202.mp4
- Date
- 12/29/2015
- W/O
- 541692
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00579
- PipeID
- P22382
- Time
- 2:51 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3061
- Sewer Name
- 14 TRUNK "C"
- City
- PALMDALE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_541692_TV14020_DEC2015
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 14 0907
- Downstream MH
- 14 0906
- Dir. of Survey
- Downstream
- Length Surveyed
- 385.1 ft.
- Total Length
- 385.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 152
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 152
Observation photos (1)

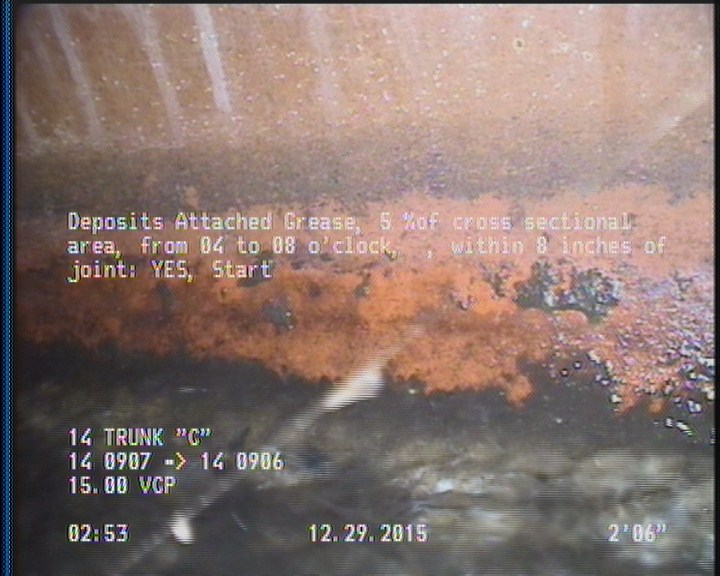

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 383.4 | DAGS | — |
| 0 | MWL | — |
| 2.5 | DAGS | — |
| 0 | AMH | 14 0907 |
| 0 | MWM | — |
| 385.1 | AMH | 14 0906 |
Properties (5)
- additional_info
- SC
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-12-29T02:51:40-08:00
- sewer_category
- GRAVITY
