Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2016, 01:46 PM

  • 14 0520_14 0519_04012016_054647.mp4

Date
01/04/2016
W/O
541692
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00579
PipeID
P18611
Time
5:46 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3064
Sewer Name
14 TRUNK "C"
City
LANCASTER
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
09
Purpose
Routine Assessment
Project
WO_541692_TV14020_DEC2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
14 0519
Downstream MH
14 0520
Dir. of Survey
Upstream
Length Surveyed
386.5 ft.
Total Length
386.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412N
O&M Rating
158
Overall Index
2
Overall Quick
—
Overall Rating
158
Pipe schematic from manhole 14 0519 to 14 0520
MH: 14 0519MH: 14 0520upstream0 ft. AMH - Upstream Manhole, Survey Ends - 14 05200 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish8.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"33.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"59.4 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"84.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"110.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"135.8 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"161.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"187.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"213.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"238.1 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"264 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"289.4 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"314.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"340.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"366 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"384.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start386.5 ft. MWM - Water Mark, 50 %of cross sectional area386.5 ft. AMH - Downstream Manhole, Survey Begins - 14 0519386.5 ft. MWL - Water Level, 20 %of cross sectional area

Observation photos (1)

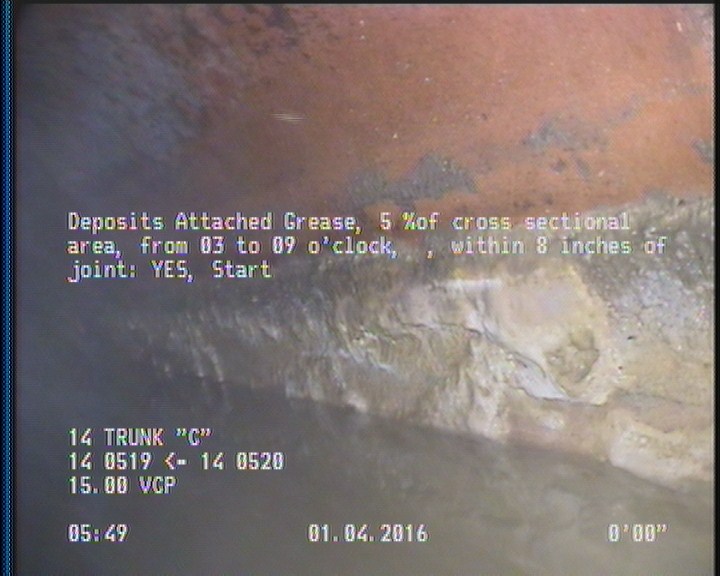

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P18611Work order 541692

Observations (21)

DistanceCodeObservation
173.3TFC—
386.5AMH14 0520
2DAGS—
122.5TFC—
97.1TFC—
0MWM—
250.7TFC—
20.5TFC—
378.2TFC—
301.7TFC—
386.5DAGS—
224.8TFC—
148.4TFC—
0AMH14 0519
327.1TFC—
198.9TFC—
0MWL—
276.2TFC—
45.7TFC—
352.6TFC—
71.7TFC—

Properties (5)

additional_info
SC224849
custom_field_two
4
customer
LACSD
datetime
2016-01-04T05:46:16-08:00
sewer_category
GRAVITY
