Wastewater/Activity/PacpInspection/1.0Jan 12, 2016, 12:45 PM
20 0531_20 0530_12012016_044705.mp4
- Date
- 01/12/2016
- W/O
- 541619
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00737
- PipeID
- P19434
- Time
- 4:45 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3071
- Sewer Name
- 20 AVENUE "Q" RELIEF TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 06
- Purpose
- V
- Project
- WO_541619_TV20034_DEC2015
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 20 0530
- Downstream MH
- 20 0531
- Dir. of Survey
- Upstream
- Length Surveyed
- 21.9 ft.
- Total Length
- 21.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2700
- O&M Rating
- 14
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (3)

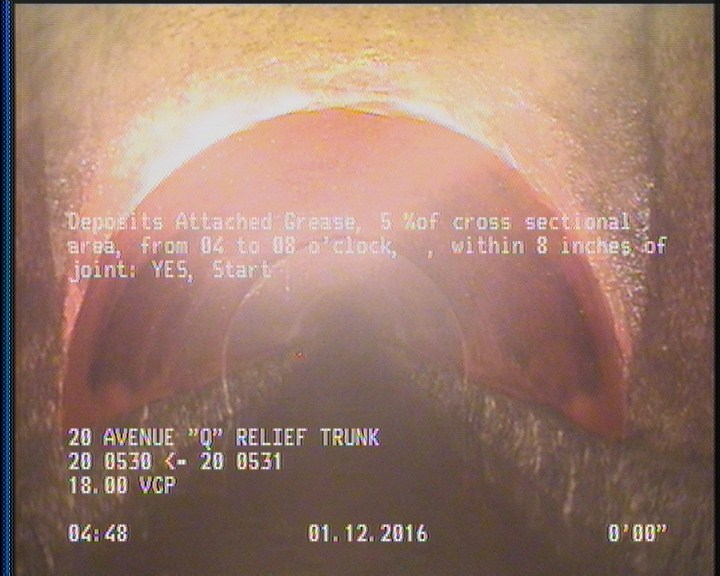

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

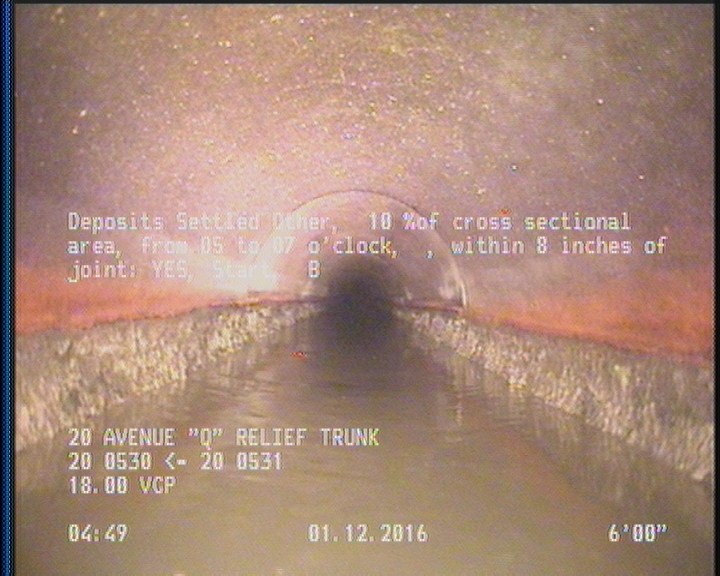

6 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - B

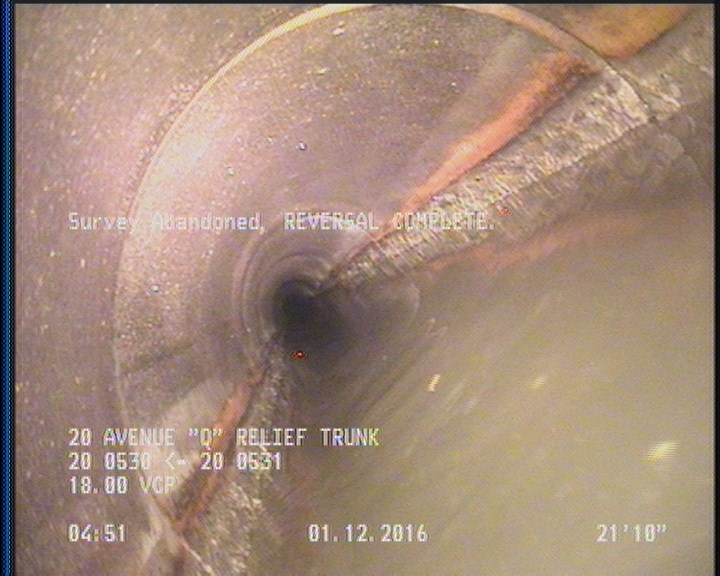

21.9 ft. - Survey Abandoned - REVERSAL COMPLETE.
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 6 | DSZ | B |
| 21.9 | DSZ | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 21.9 | DAGS | — |
| 21.9 | MSA | REVERSAL COMPLETE. |
| 0 | AMH | 20 0530 |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC224843
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-01-12T04:45:52-08:00
- sewer_category
- GRAVITY
- year_laid
- 19890731
