Wastewater/Activity/PacpInspection/1.0Dec 4, 2015, 09:09 AM
30 0145_30 0144_20151204_021458_.mpg
- Date
- 12/04/2015
- W/O
- 536532
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00878
- PipeID
- P17850
- Time
- 1:09 AM
- Certificate
- 12345
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2957
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- REDONDO BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_536532_TV30036_NOV2015
- Material
- Vitrified Clay Pipe
- Shape
- Other
- Height
- 18 in.
- Upstream MH
- 30 0145
- Downstream MH
- 30 0144
- Dir. of Survey
- Downstream
- Length Surveyed
- 39.5 ft.
- Total Length
- 39.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4600
- O&M Rating
- 24
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 24
Observation photos (2)

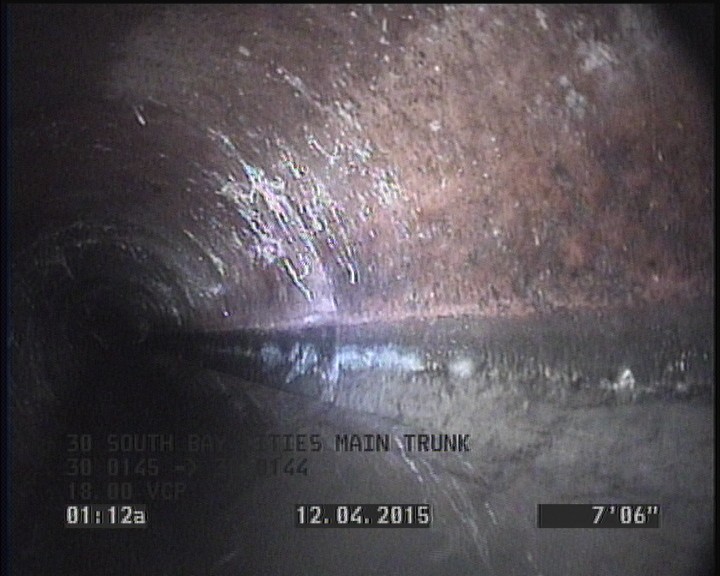

7.3 ft. - Deposits Attached Grease, 30 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

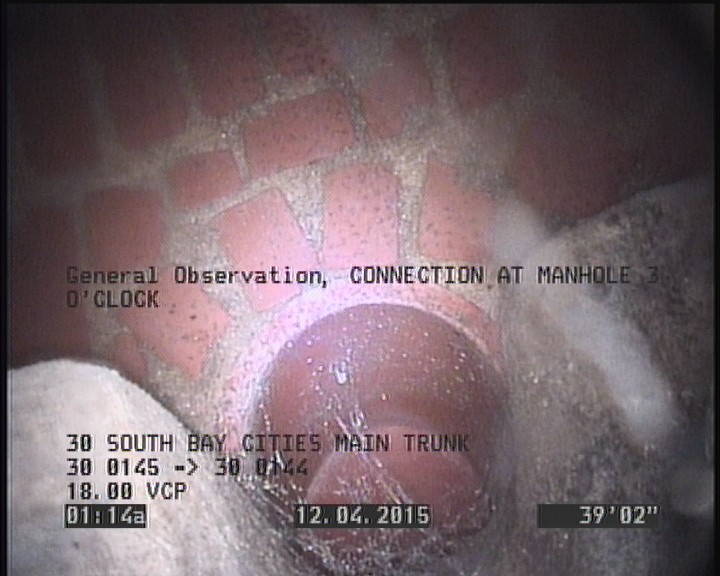

39.2 ft. - General Observation - CONNECTION AT MANHOLE 3 O'CLOCK
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 39.2 | MGO | CONNECTION AT MANHOLE 3 O'CLOCK |
| 7.3 | DAGS | — |
| 39.5 | AMH | 30 0144 |
| 36.3 | DAGS | — |
| 0 | AMH | 30 0145 |
Properties (5)
- additional_info
- SC205554
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-12-04T01:09:12-08:00
- sewer_category
- GRAVITY
