Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 4, 2015, 06:44 AM

  • 30 0149_30 0148_20151204_000027_.mpg

Date
12/03/2015
W/O
536532
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00878
PipeID
P17854
Time
10:44 PM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2957
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
07
Purpose
Routine Assessment
Project
WO_536532_TV30036_NOV2015
Material
Vitrified Clay Pipe
Shape
Other
Height
18 in.
Upstream MH
30 0149
Downstream MH
30 0148
Dir. of Survey
Downstream
Length Surveyed
176.1 ft.
Total Length
176.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4E00
O&M Rating
128
Overall Index
4
Overall Quick
—
Overall Rating
128
Pipe schematic from manhole 30 0149 to 30 0148
MH: 30 0149MH: 30 0148downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 30 01490.1 ft. MGO - General Observation - CONNECTION AT MANHOLE 3 O'CLOCK14.6 ft. DAGS - Deposits Attached Grease, 25 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start133.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"176 ft. DAGS - Deposits Attached Grease, 25 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish176.1 ft. AMH - Downstream Manhole, Survey Ends - 30 0148

Observation photos (2)

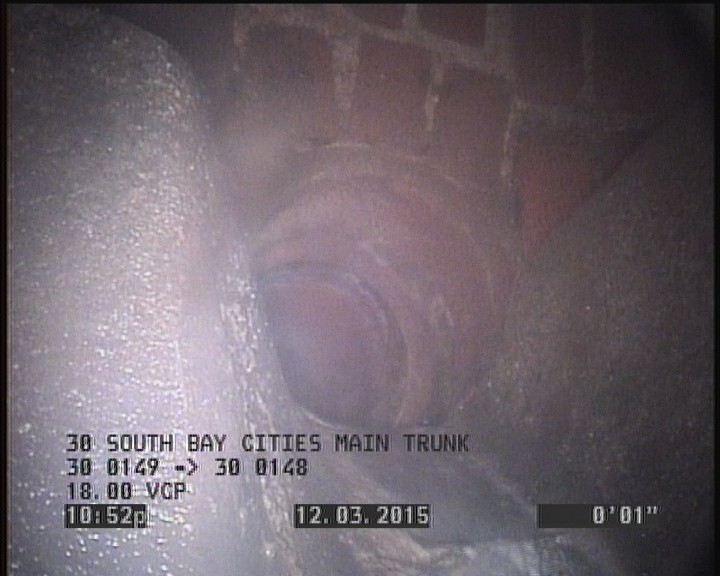

  • General Observation - CONNECTION AT MANHOLE 3 O'CLOCK

    0.1 ft. - General Observation - CONNECTION AT MANHOLE 3 O'CLOCK

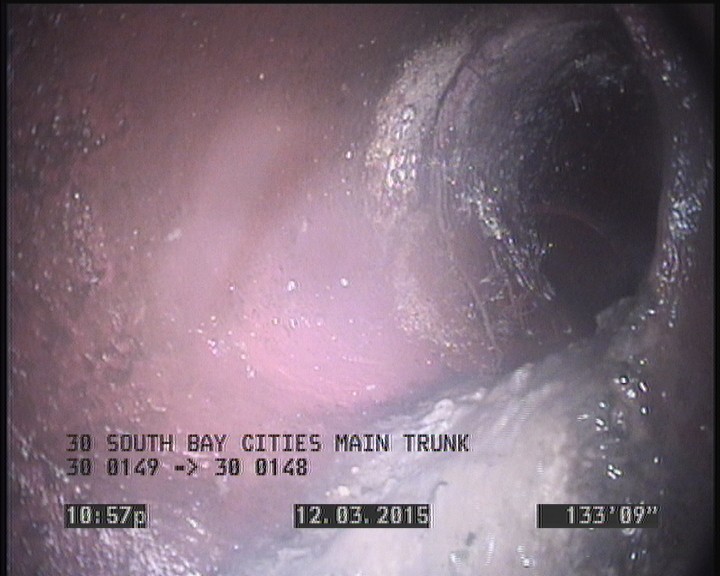

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"

    133.8 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"

All inspections of P17854Work order 536532

Observations (8)

DistanceCodeObservation
176DAGS—
0MWM—
176.1AMH30 0148
0MWL—
0.1MGOCONNECTION AT MANHOLE 3 O'CLOCK
0AMH30 0149
133.8TF—
14.6DAGS—

Properties (5)

additional_info
SC205554
custom_field_two
4
customer
LACSD
datetime
2015-12-03T22:44:43-08:00
sewer_category
GRAVITY
