Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 25, 2015, 07:59 AM

  • 14 0236_14 0235_25112015_000012.mp4

Date
11/24/2015
W/O
536453
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00575
PipeID
P18287
Time
11:59 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2871
Sewer Name
14 NORTH SIDE TRUNK
City
LANCASTER
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
04
Purpose
Routine Assessment
Project
WO_536453_TV14067_NOV2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
14 0236
Downstream MH
14 0235
Dir. of Survey
Downstream
Length Surveyed
212.3 ft.
Total Length
212.3 ft.
Structural Index
3
Structural Quick
423G
Structural Rating
136
O&M Index
2
O&M Quick
2G00
O&M Rating
82
Overall Index
3
Overall Quick
—
Overall Rating
218
Pipe schematic from manhole 14 0236 to 14 0235
MH: 14 0236MH: 14 0235downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 0236 (2359)0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT THE MH 12 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK7.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start7.2 ft. CM - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES15.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES18.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start49.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES69.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start75 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish134.7 ft. OBR - Obstacles Rocks, 10 %of cross sectional area, from 05 to 07 o'clock203.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES208.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES209.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish209.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish212.3 ft. AMH - Downstream Manhole, Survey Ends - 14 0235 (0045)212.3 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK

Observation photos (3)

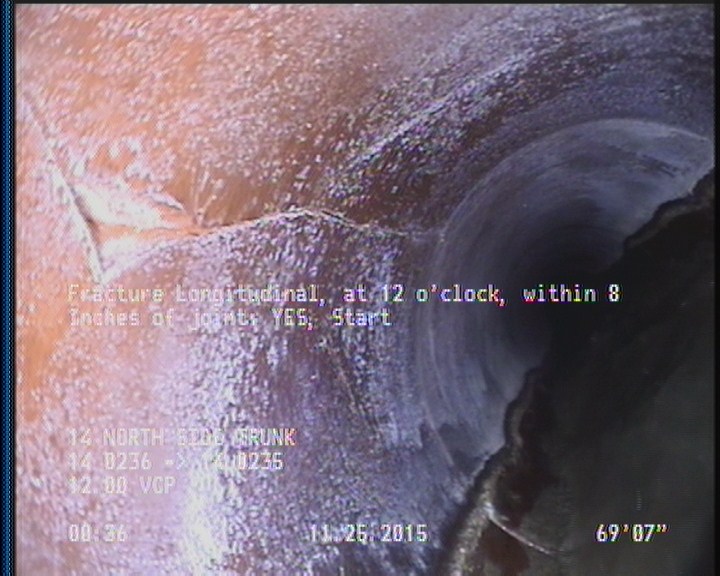

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    69.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

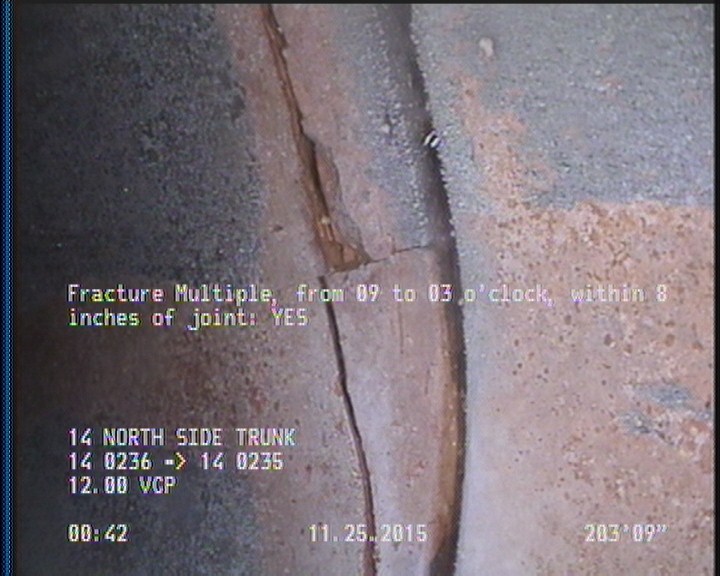

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    203.7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

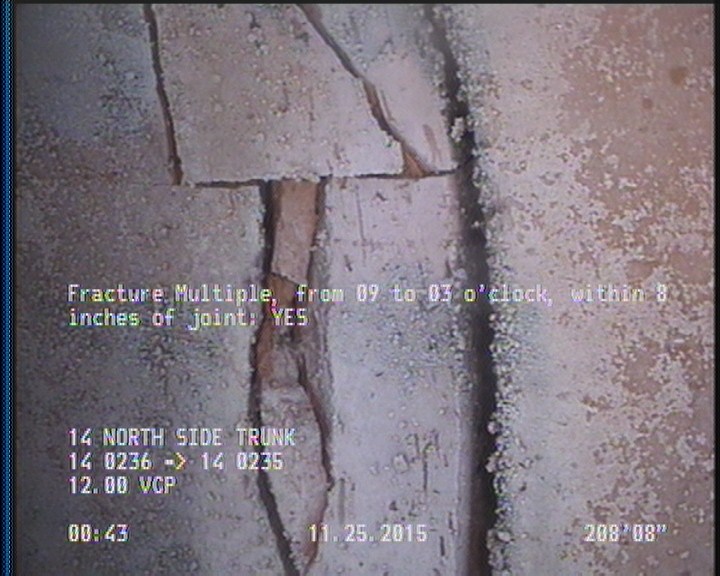

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    208.7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P18287Work order 536453

Observations (20)

DistanceCodeObservation
49.8FL—
134.7OBR—
0MWM—
18.8CM—
0MWL—
212.3AMH14 0235 (0045)
7.2DAGS—
212.3MGOCONNECTION AT THE MH 9 O'CLOCK
209.3DAGS—
203.7FM—
75FL—
15.5CL—
0AMH14 0236 (2359)
208.7FM—
7.2CM—
69.6FL—
0MGOCONNECTION AT THE MH 3 O'CLOCK
209.3CM—
0MGOCONNECTION AT THE MH 12 O'CLOCK
0MGOCONNECTION AT THE MH 9 O'CLOCK

Properties (5)

additional_info
SC205639
custom_field_two
3
customer
LACSD
datetime
2015-11-24T23:59:00-08:00
sewer_category
GRAVITY
