Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 7, 2015, 10:00 AM

  • 22 0709A_22 0709_20151207_021158.mp4

Date
12/07/2015
W/O
536447
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00826
PipeID
P17063
Time
2:00 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2879
Sewer Name
22 SAN DIMAS CONNECTION EXTENSION TRUNK
City
SAN DIMAS, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Routine Assessment
Project
WO_536447_TV22088_NOV2015
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
22 0709A
Downstream MH
22 0709
Dir. of Survey
Downstream
Length Surveyed
160.6 ft.
Total Length
160.6 ft.
Structural Index
3
Structural Quick
3E2E
Structural Rating
148
O&M Index
2
O&M Quick
2E00
O&M Rating
62
Overall Index
2
Overall Quick
—
Overall Rating
210
Pipe schematic from manhole 22 0709A to 22 0709
MH: 22 0709AMH: 22 0709downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOC0 ft. AMH - Upstream Manhole, Survey Begins - 22 0709A1.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start11.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start105.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"155 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish158.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish158.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish160.6 ft. AMH - Downstream Manhole, Survey Ends - 22 0709

Observation photos (2)

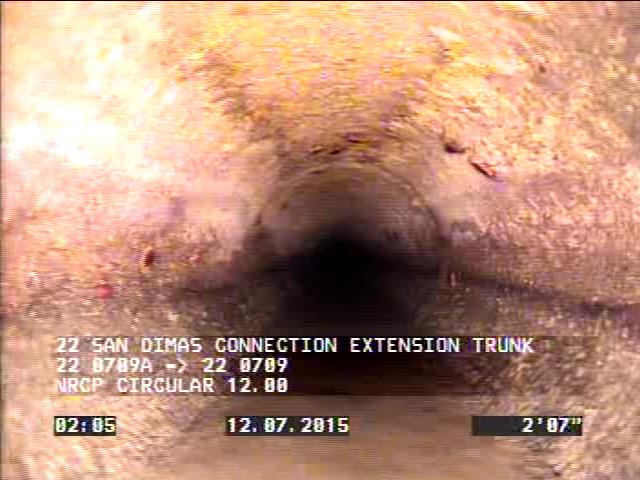

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

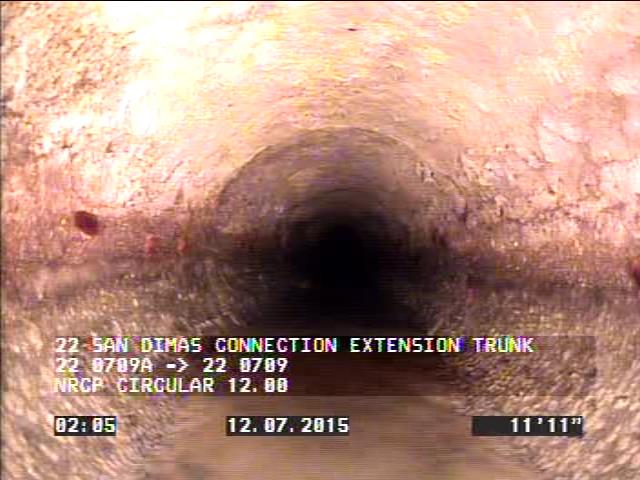

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    11.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P17063Work order 536447

Observations (12)

DistanceCodeObservation
0MWM—
105.8TFC—
11.9SSS—
0MWL—
0MGOCONNECTION AT MH 9 O'CLOC
0AMH22 0709A
158.4SSS—
1.6DAGS—
160.6AMH22 0709
158.4DAGS—
5SAV—
155SAV—

Properties (5)

additional_info
SC205647
custom_field_two
3
customer
LACSD
datetime
2015-12-07T02:00:00-08:00
sewer_category
GRAVITY
