Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 8, 2015, 08:28 AM

  • 22 0713_22 0712_20151208_004258.mp4

Date
12/08/2015
W/O
536447
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00826
PipeID
P17067
Time
12:28 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2880
Sewer Name
22 SAN DIMAS CONNECTION EXTENSION TRUNK
City
SAN DIMAS, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Routine Assessment
Project
WO_536447_TV22088_NOV2015
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0712
Downstream MH
22 0713
Dir. of Survey
Upstream
Length Surveyed
332.1 ft.
Total Length
332.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412L
O&M Rating
132
Overall Index
2
Overall Quick
—
Overall Rating
132
Pipe schematic from manhole 22 0712 to 22 0713
MH: 22 0712MH: 22 0713upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 07133.4 ft. MGO - General Observation - LARGE OFFSET AT MANHOLE3.4 ft. DAR - Deposits Attached Ragging, 25 %of cross sectional area, from 02 to 05 o'clock, , within 8 inches of joint: YES3.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish155.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"261 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"325.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start330.1 ft. MGO - General Observation - 90% MAG COAT INTACT332.1 ft. MWM - Water Mark, 35 %of cross sectional area332.1 ft. MWL - Water Level, 10 %of cross sectional area332.1 ft. AMH - Downstream Manhole, Survey Begins - 22 0712

Observation photos (1)

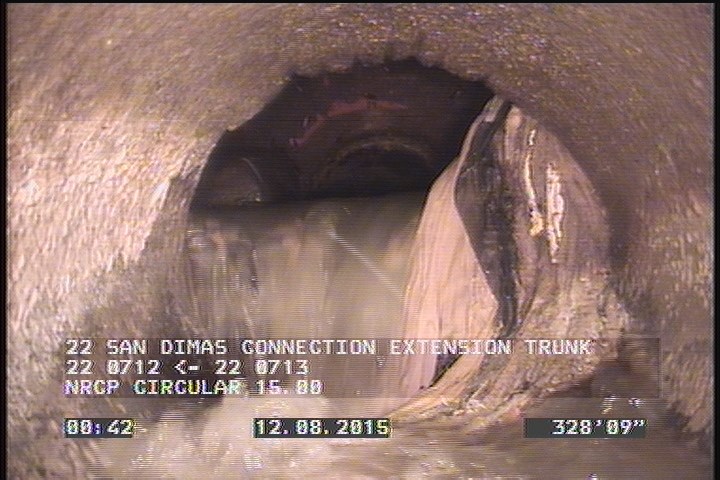

  • Deposits Attached Ragging, 25 %of cross sectional area, from 02 to 05 o'clock, , within 8 inches of joint: YES

    328.7 ft. - Deposits Attached Ragging, 25 %of cross sectional area, from 02 to 05 o'clock, , within 8 inches of joint: YES

All inspections of P17067Work order 536447

Observations (11)

DistanceCodeObservation
328.7MGOLARGE OFFSET AT MANHOLE
332.1AMH22 0713
0MWM—
7DAGS—
0MWL—
328.7DAR—
71.1TFC—
328.7DAGS—
177TFC—
0AMH22 0712
2MGO90% MAG COAT INTACT

Properties (5)

additional_info
SC205648
custom_field_two
5
customer
LACSD
datetime
2015-12-08T00:28:00-08:00
sewer_category
GRAVITY
