Wastewater/Activity/PacpInspection/1.0Jan 6, 2016, 07:45 AM
H 1232_H 1231_20160106_004842.mp4
- Date
- 01/05/2016
- W/O
- 536444
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z01181
- PipeID
- P21327
- Time
- 11:45 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3106
- Sewer Name
- H JOINT OUTFALL H - UNIT 8K
- City
- WEST COVINA, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_536444_TV22032_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- H 1232
- Downstream MH
- H 1231
- Dir. of Survey
- Downstream
- Length Surveyed
- 87.2 ft.
- Total Length
- 87.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 30
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 30
Observation photos (1)

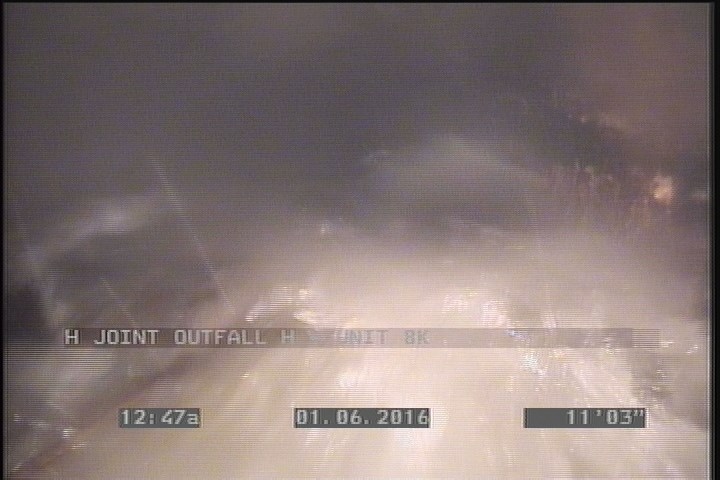

11.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 11.2 | DAGS | — |
| 0 | MWL | — |
| 84.3 | DAGS | — |
| 87.2 | AMH | H 1231 |
| 0 | MWM | — |
| 2 | MGO | BEGIN MAGNESIUM HYDROXIDE COATING |
| 86.8 | MGO | CONNECTION AT MANHOLE ACTIVE 3 O'CLOCK |
| 0 | AMH | H 1232 |
Properties (5)
- additional_info
- SC224486
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-01-05T23:45:00-08:00
- sewer_category
- GRAVITY
