Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2016, 10:56 AM

  • 05 0350_05 0349_11012016_025630.mp4

Date
01/11/2016
W/O
536429
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00432
PipeID
P05564
Time
2:56 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3069
Sewer Name
05 DISTRICT #5 MAIN RELIEF TRUNK
City
HAWTHORNE
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
WO_536429_TV05014_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
05 0350
Downstream MH
05 0349
Dir. of Survey
Downstream
Length Surveyed
439.1 ft.
Total Length
439.1 ft.
Structural Index
3
Structural Quick
3P2P
Structural Rating
435
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
439
Pipe schematic from manhole 05 0350 to 05 0349
MH: 05 0350MH: 05 0349downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 03502 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start436.8 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish436.8 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish439.1 ft. AMH - Downstream Manhole, Survey Ends - 05 0349439.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

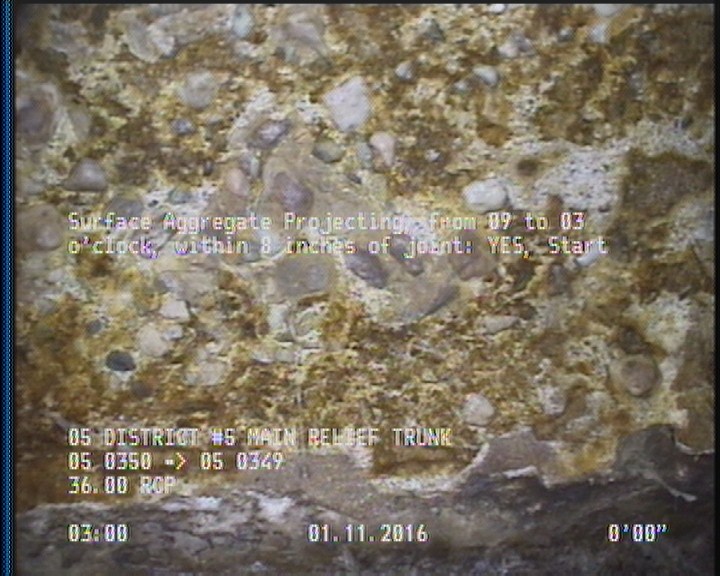

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

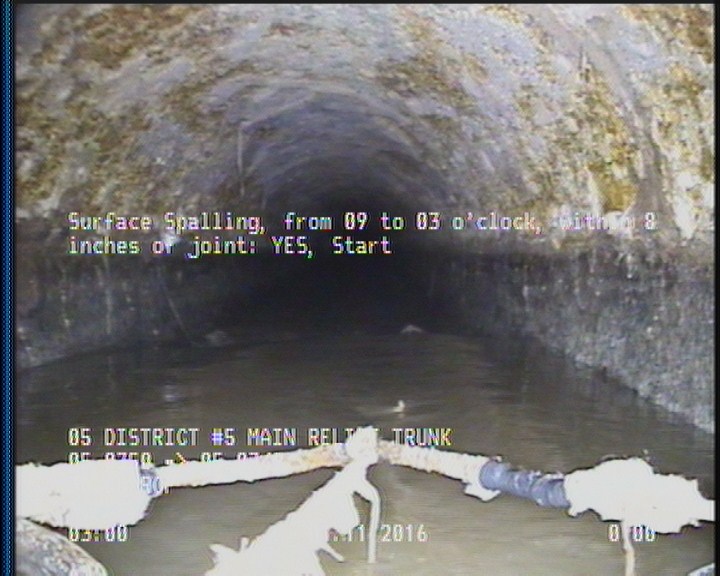

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

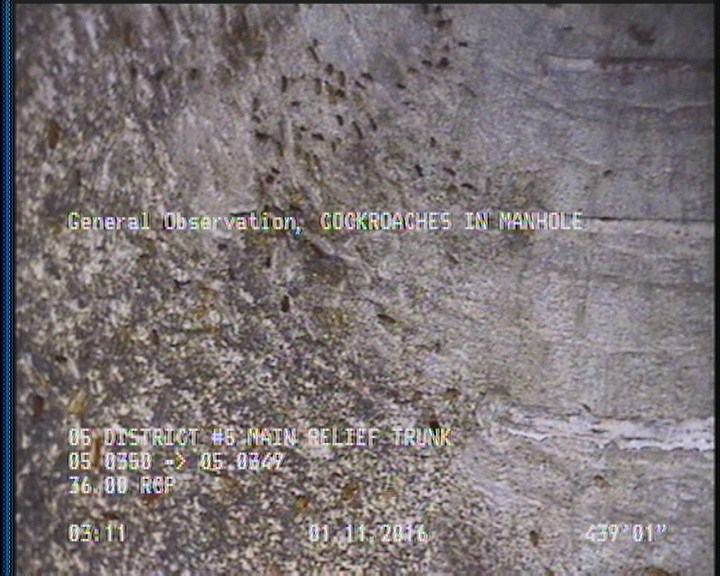

  • General Observation - COCKROACHES IN MANHOLE

    439.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P05564Work order 536429

Observations (9)

DistanceCodeObservation
436.8SAP—
436.8SSS—
2SAP—
0MWM—
439.1AMH05 0349
439.1MGOCOCKROACHES IN MANHOLE
0MWL—
2SSS—
0AMH05 0350

Properties (4)

additional_info
SC224841
custom_field_two
3
customer
LACSD
datetime
2016-01-11T02:56:16-08:00
