Wastewater/Activity/PacpInspection/1.0Jan 7, 2016, 09:59 AM
05 0360_05 0359_07012016_020003.mp4
- Date
- 01/07/2016
- W/O
- 536429
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00432
- PipeID
- P05574
- Time
- 1:59 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3067
- Sewer Name
- 05 DISTRICT #5 MAIN RELIEF TRUNK
- City
- HAWTHORNE
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_536429_TV05014_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 05 0360
- Downstream MH
- 05 0359
- Dir. of Survey
- Downstream
- Length Surveyed
- 441 ft.
- Total Length
- 441 ft.
- Structural Index
- 3
- Structural Quick
- 3P2P
- Structural Rating
- 435
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 435
Observation photos (2)

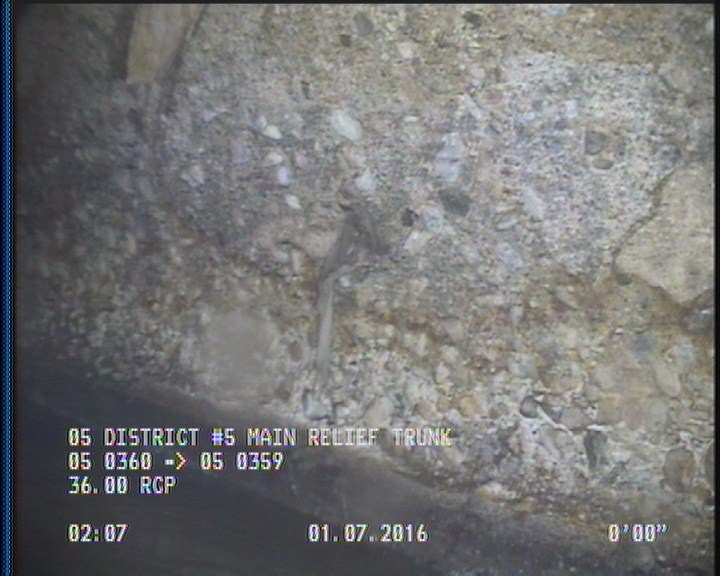

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

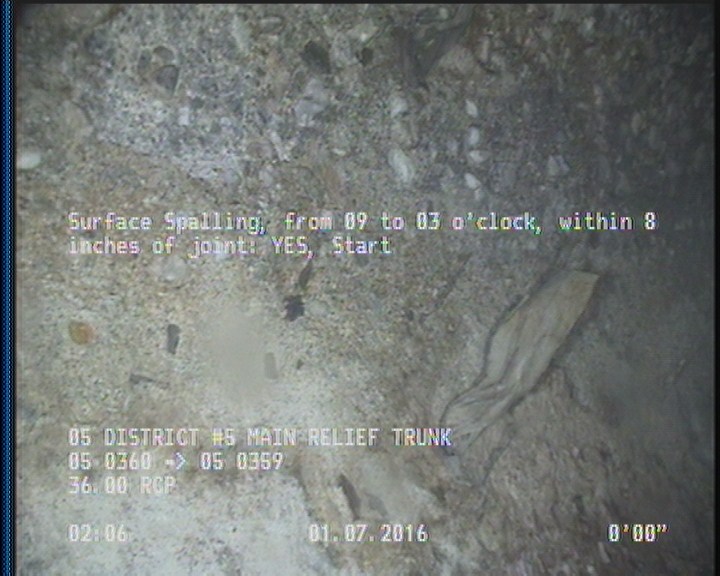

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 439.1 | SSS | — |
| 2 | SAV | — |
| 0 | AMH | 05 0360 |
| 439.1 | SAV | — |
| 441 | AMH | 05 0359 |
| 0 | MWM | — |
| 0 | MWL | — |
| 439.1 | MGO | ACTIVE CONNECTION AT MH O'CLOCK |
| 2 | SSS | — |
Properties (4)
- additional_info
- SC224839
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-07T01:59:45-08:00
