Wastewater/Activity/PacpInspection/1.0Jan 21, 2016, 08:35 AM
05 2078_05 2077_20160121_003311.mp4
- Date
- 01/21/2016
- W/O
- 536429
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00432
- PipeID
- P07222
- Time
- 12:35 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3119
- Sewer Name
- 05 DISTRICT #5 MAIN RELIEF TRUNK
- City
- HAWTHORNE, CA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_536429_TV05014_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 05 2078
- Downstream MH
- 05 2077
- Dir. of Survey
- Downstream
- Length Surveyed
- 49.1 ft.
- Total Length
- 49.1 ft.
- Structural Index
- 5
- Structural Quick
- 5300
- Structural Rating
- 15
- O&M Index
- 2
- O&M Quick
- 4129
- O&M Rating
- 22
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 37
Observation photos (5)

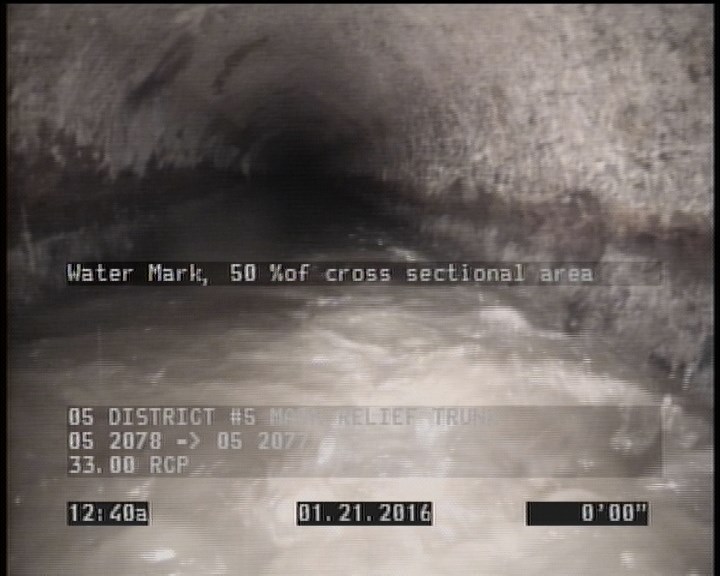

0 ft. - Water Mark, 50 %of cross sectional area

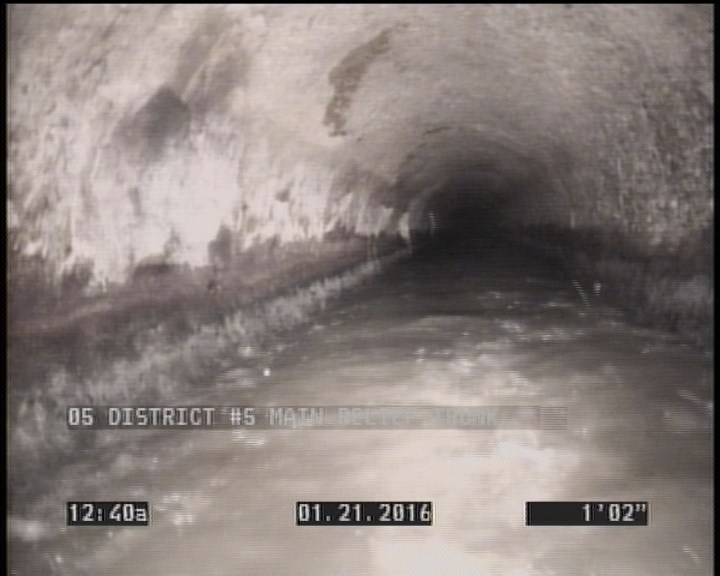

2 ft. - General Observation - MAGNESIUM H.O. START

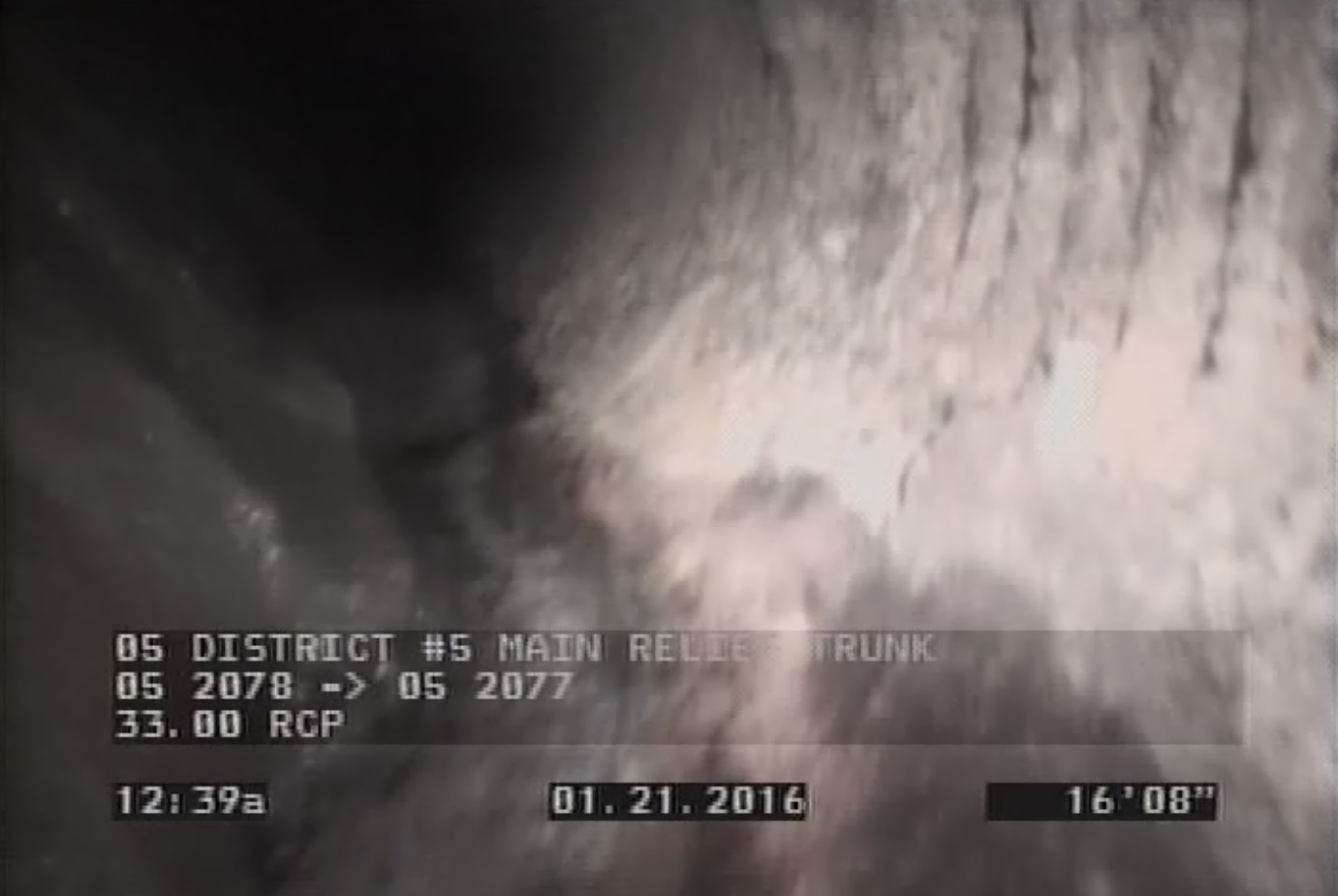

4 ft. - Surface Reinforcement Corroded, from 01 to 03 o'clock, within 8 inches of joint: NO

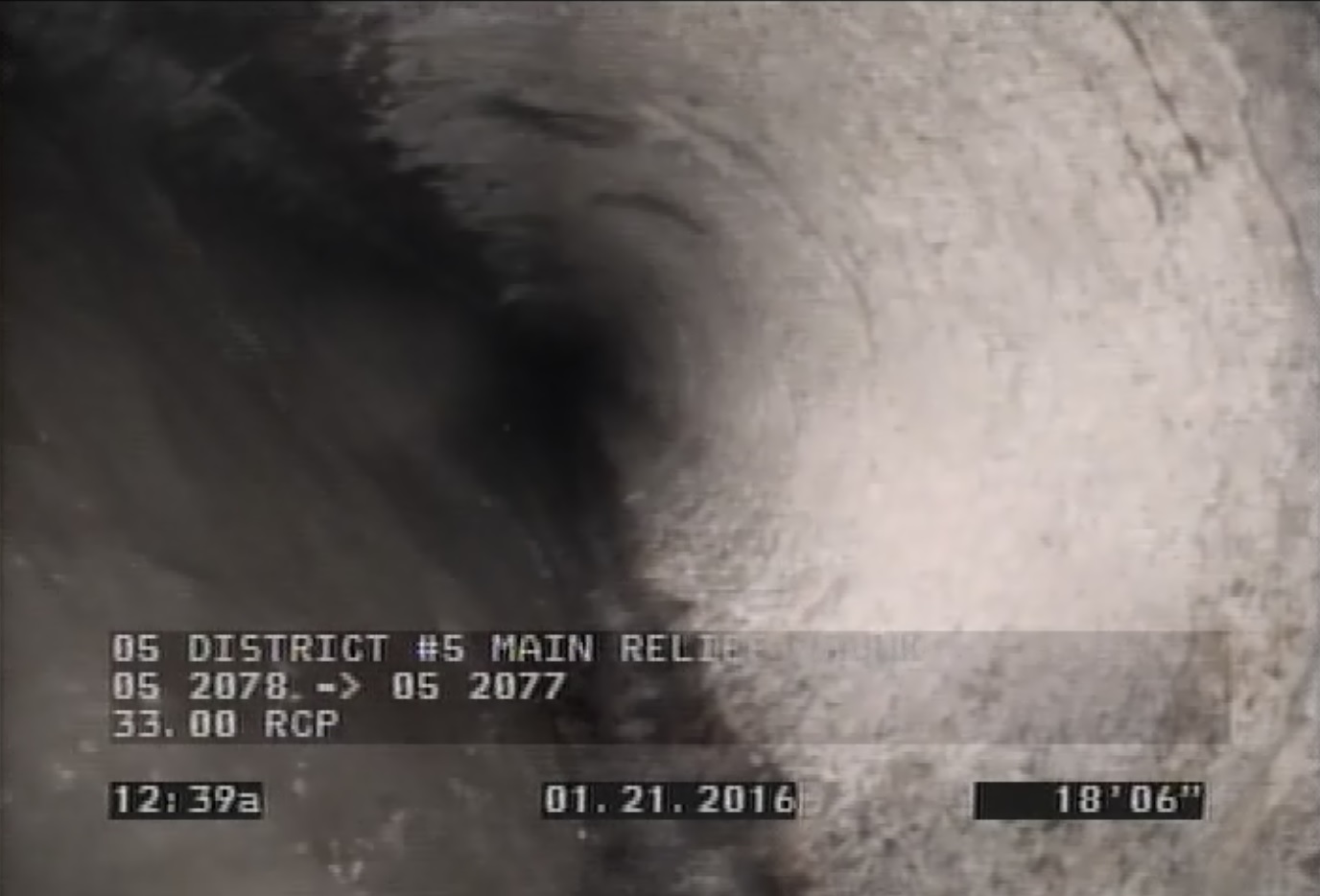

8.9 ft. - Surface Reinforcement Corroded, at 12 o'clock, within 8 inches of joint: NO

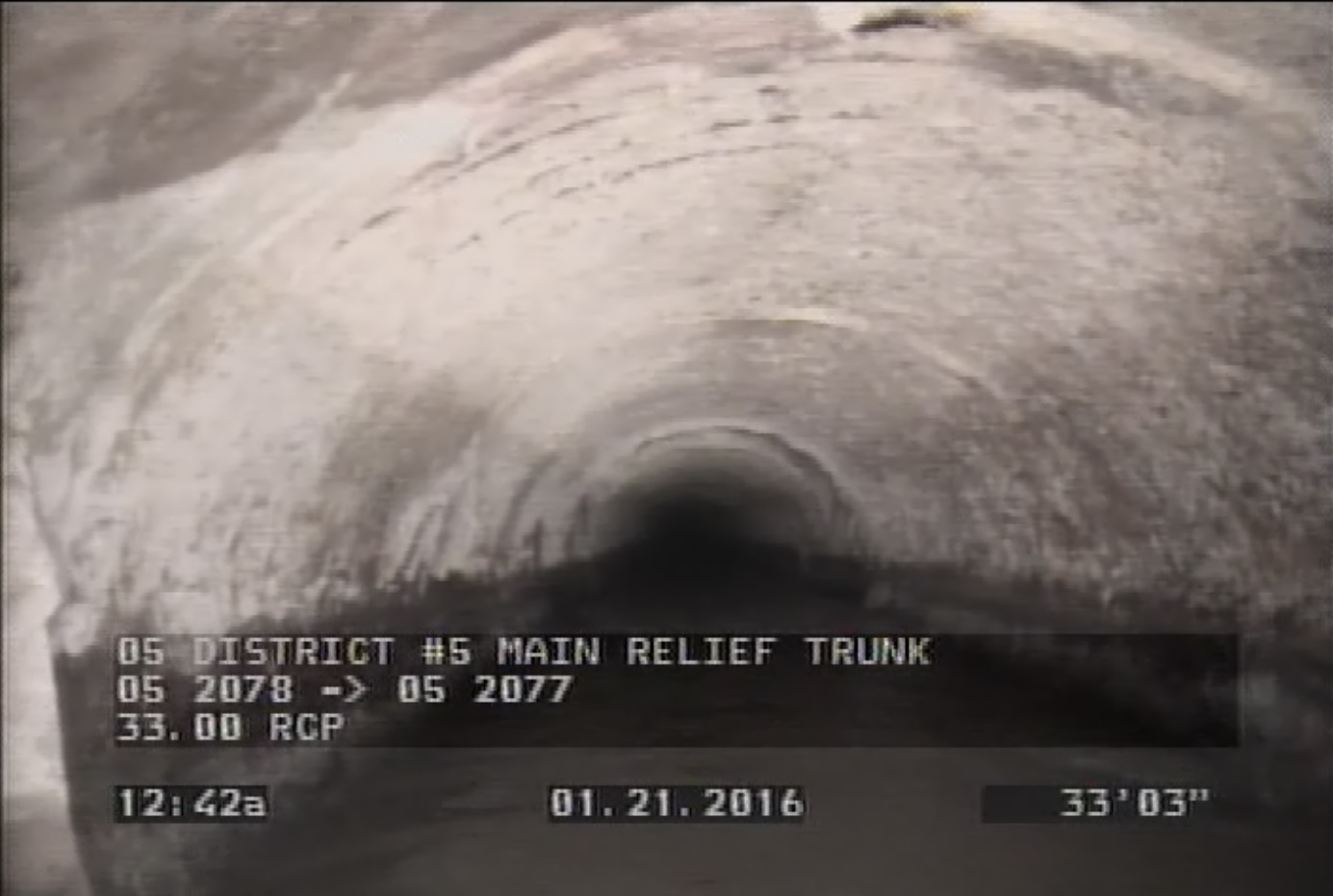

36.1 ft. - Surface Reinforcement Corroded, from 10 to 12 o'clock, within 8 inches of joint: NO
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAGNESIUM H.O. START |
| 0 | MWM | — |
| 8.9 | SRC | — |
| 1.2 | DAGS | — |
| 49.1 | AMH | 05 2077 |
| 0 | AMH | 05 2078 |
| 45.2 | DAGS | — |
| 36.1 | SRC | — |
| 4 | SRC | — |
| 0 | MWL | — |
| 49.1 | MGO | LATERAL AT MH 3 OCLOCK ABANDONED |
Properties (4)
- additional_info
- SC225504
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-01-21T00:35:00-08:00
