Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 7, 2016, 09:00 AM

  • 05 0361_05 0360_07012016_010022.mp4

Date
01/07/2016
W/O
536429
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00432
PipeID
P05575
Time
1:00 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3067
Sewer Name
05 DISTRICT #5 MAIN RELIEF TRUNK
City
HAWTHORNE
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_536429_TV05014_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
05 0361
Downstream MH
05 0360
Dir. of Survey
Downstream
Length Surveyed
444.5 ft.
Total Length
444.5 ft.
Structural Index
2
Structural Quick
3O2Q
Structural Rating
410
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
414
Pipe schematic from manhole 05 0361 to 05 0360
MH: 05 0361MH: 05 0360downstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 05 03610 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start51.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start443.3 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish443.3 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish444.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE444.5 ft. AMH - Downstream Manhole, Survey Ends - 05 0360

Observation photos (3)

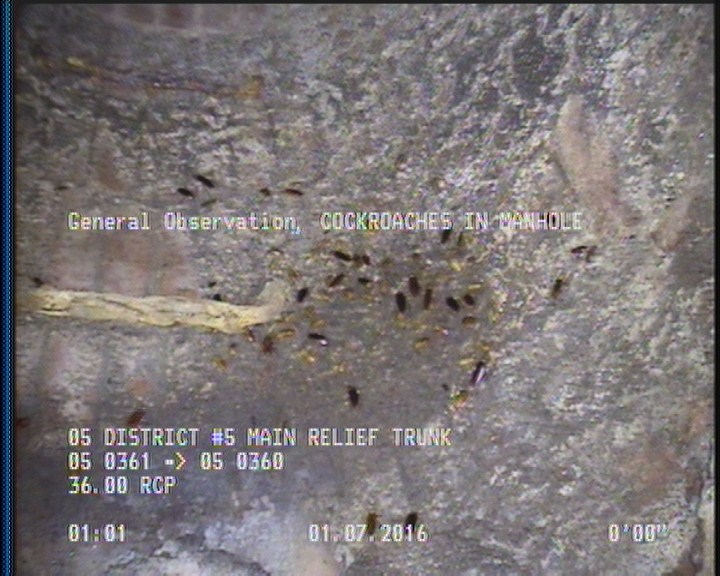

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

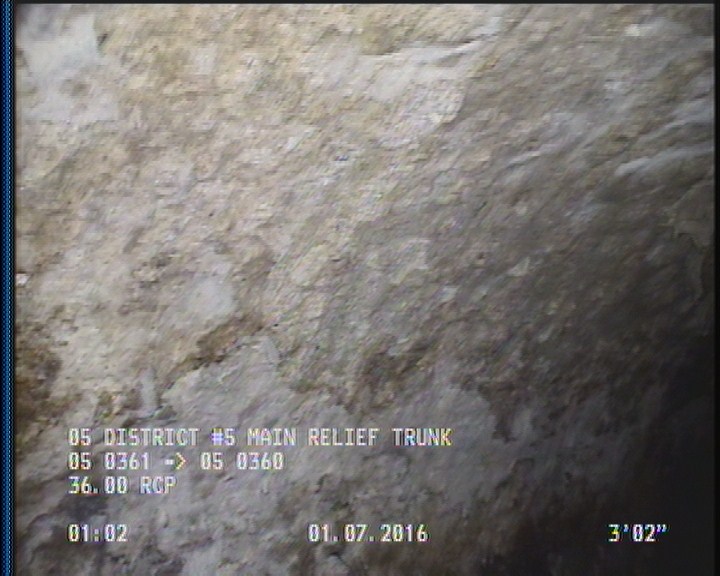

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

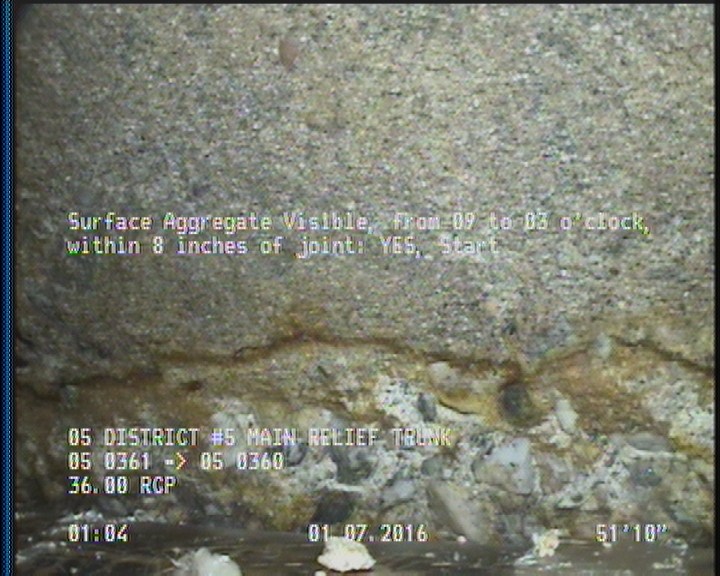

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    51.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P05575Work order 536429

Observations (11)

DistanceCodeObservation
444.5AMH05 0360
0MWL—
0MWM—
51.9SAV—
443.3SSS—
443.3SAV—
2SSS—
0MGOCOCKROACHES IN MANHOLE
444.3MGOCOCKROACHES IN MANHOLE
0AMH05 0361
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK

Properties (4)

additional_info
SC224839
custom_field_two
3
customer
LACSD
datetime
2016-01-07T01:00:07-08:00
