Wastewater/Activity/PacpInspection/1.0Jan 7, 2016, 11:06 AM
05 0358_05 0357_07012016_030938.mp4
- Date
- 01/07/2016
- W/O
- 536429
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00432
- PipeID
- P05572
- Time
- 3:06 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3067
- Sewer Name
- 05 DISTRICT #5 MAIN RELIEF TRUNK
- City
- HAWTHORNE
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_536429_TV05014_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 05 0358
- Downstream MH
- 05 0357
- Dir. of Survey
- Downstream
- Length Surveyed
- 432.1 ft.
- Total Length
- 432.1 ft.
- Structural Index
- 3
- Structural Quick
- 3P2P
- Structural Rating
- 430
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 430
Observation photos (3)

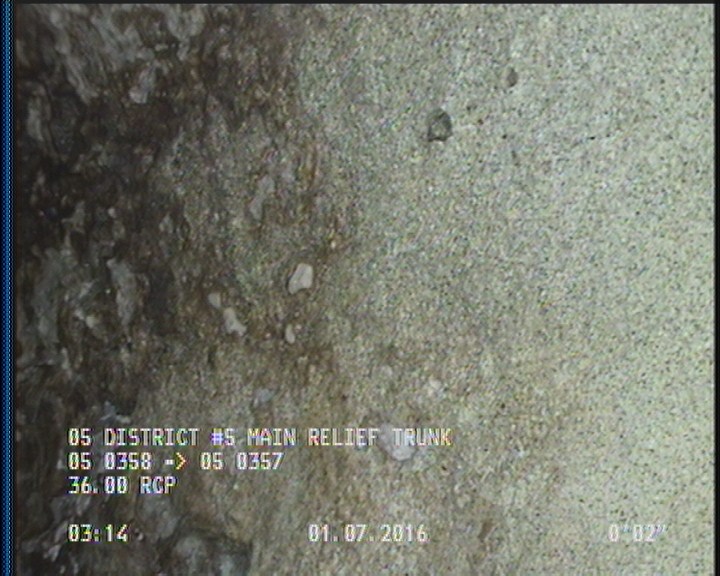

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - WANDERING VISIBLE AGG

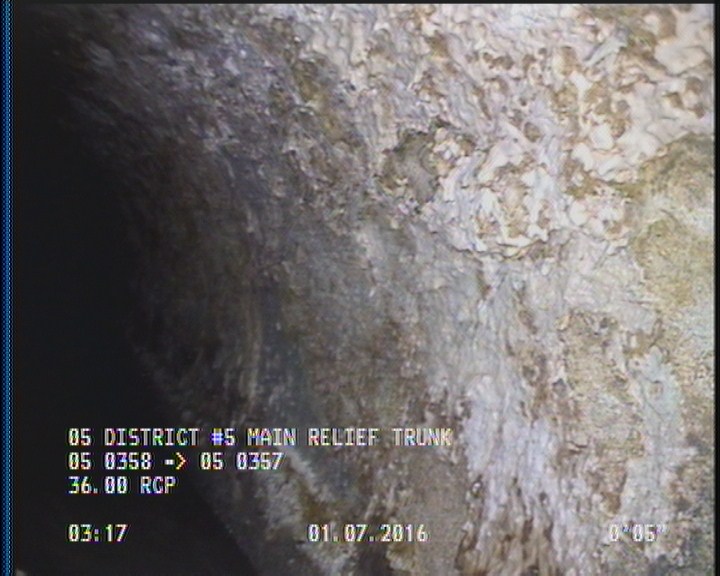

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

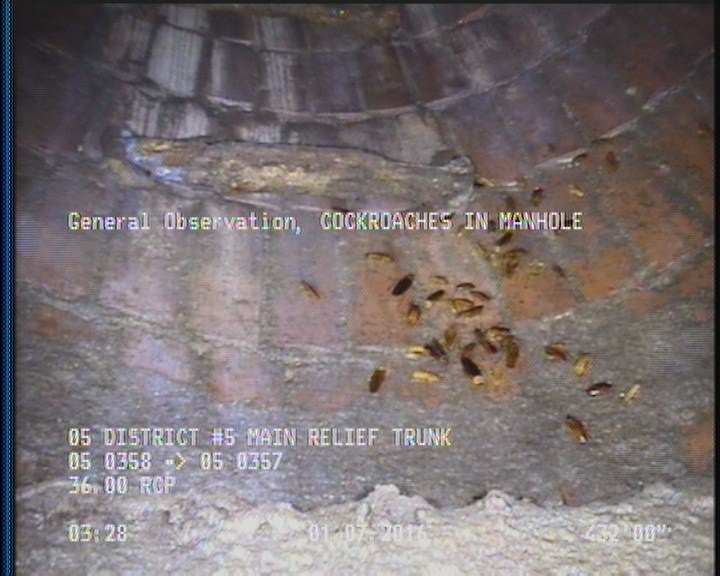

432 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 432 | MGO | COCKROACHES IN MANHOLE |
| 2 | SAV | WANDERING VISIBLE AGG |
| 0 | MWL | — |
| 0 | AMH | 05 0358 |
| 430.4 | SAV | — |
| -0.1 | MWM | — |
| 432 | AMH | 05 0357 |
| 430.4 | SSS | — |
| 2 | SSS | — |
Properties (4)
- additional_info
- SC224839
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-01-07T03:06:59-08:00
