Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2016, 07:31 AM

  • 05 0366_05 0365_07012016_233110.mp4

Date
01/07/2016
W/O
536429
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00432
PipeID
P05581
Time
11:31 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3068
Sewer Name
05 DISTRICT #5 MAIN RELIEF TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_536429_TV05014_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
05 0366
Downstream MH
05 0365
Dir. of Survey
Downstream
Length Surveyed
329.6 ft.
Total Length
329.6 ft.
Structural Index
4
Structural Quick
5434
Structural Rating
36
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
40
Pipe schematic from manhole 05 0366 to 05 0365
MH: 05 0366MH: 05 0365downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 03660 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start67.7 ft. SRV - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES67.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start136.9 ft. SRV - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES147.2 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start153.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start326.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish326.9 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish326.9 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - MOSTLY AROUND 12 O CLOCK326.9 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish329.6 ft. AMH - Downstream Manhole, Survey Ends - 05 0365

Observation photos (6)

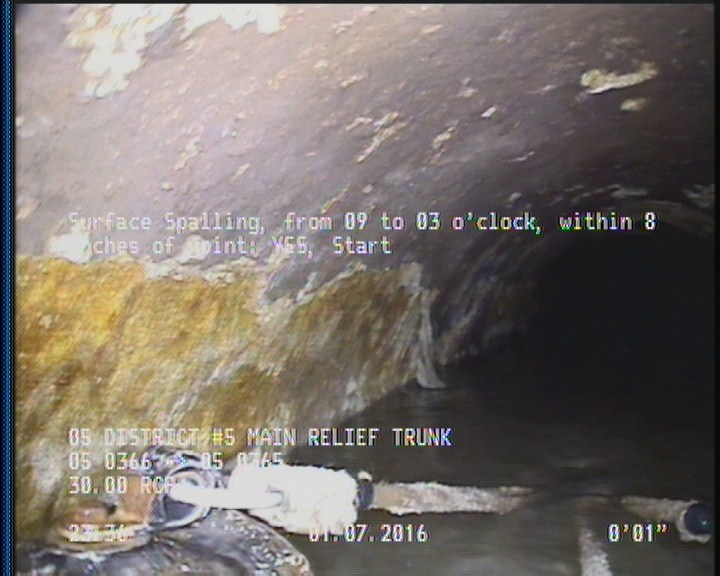

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

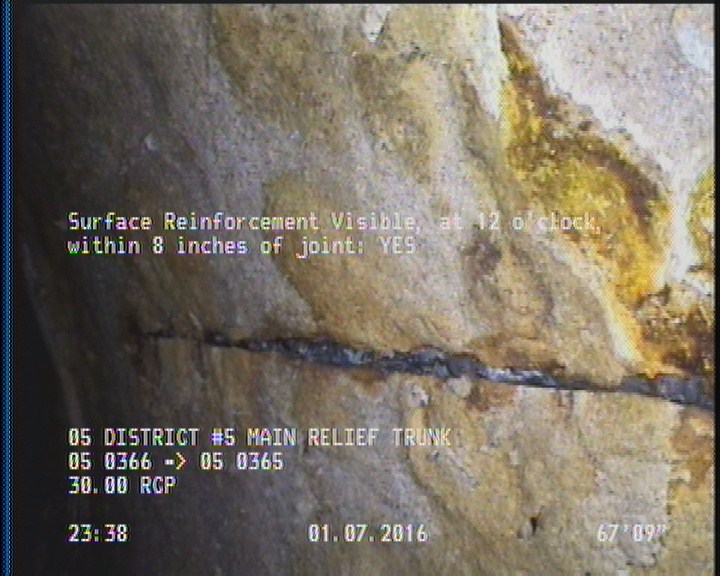

  • Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES

    67.7 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES

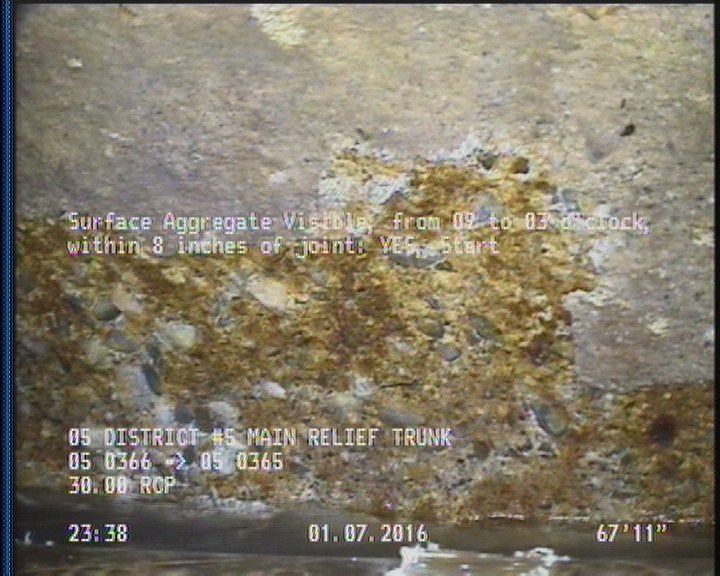

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    67.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

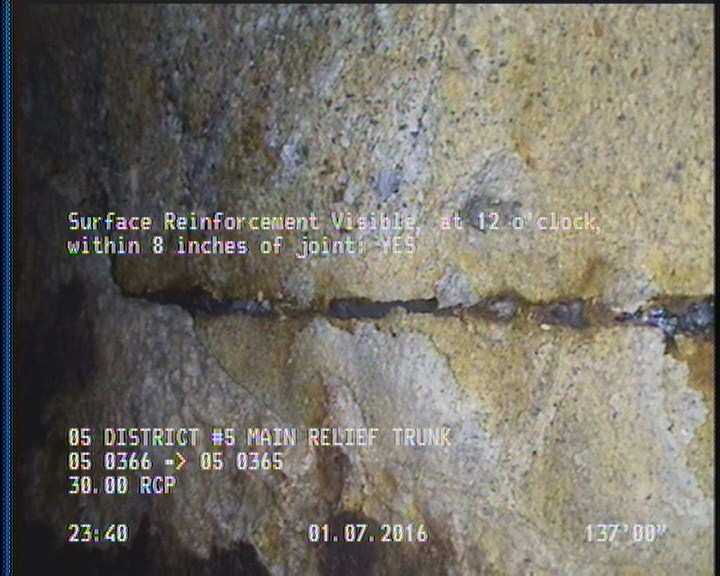

  • Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES

    136.9 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES

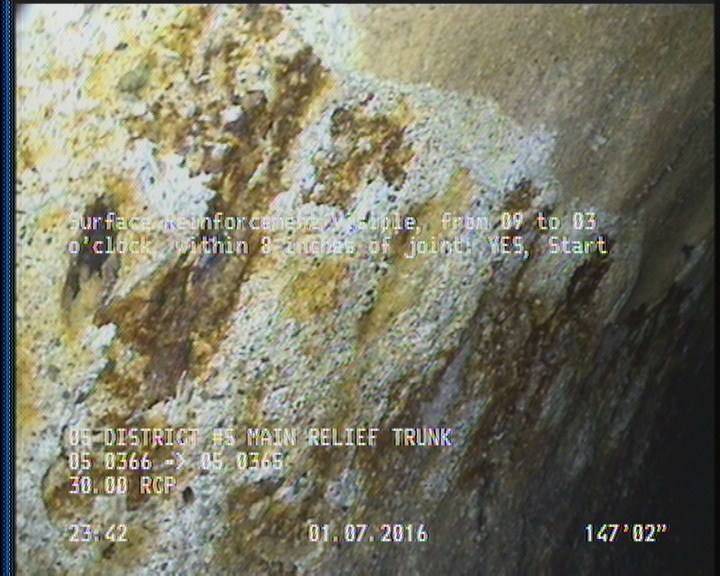

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    147.2 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

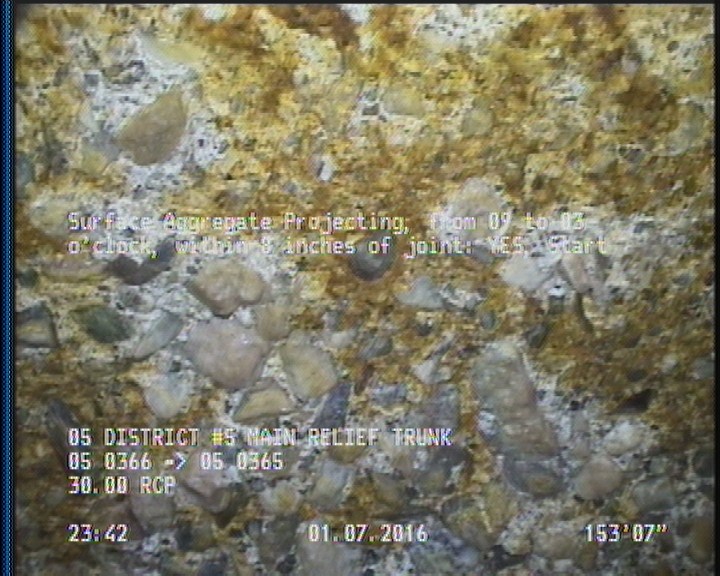

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    153.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P05581Work order 536429

Observations (14)

DistanceCodeObservation
153.5SAP—
0AMH05 0366
326.9SAV—
67.9SAV—
326.9SSS—
329.6AMH05 0365
0MWM—
2SSS—
0MWL—
147.2SRV—
67.7SRV—
326.9SRVMOSTLY AROUND 12 O CLOCK
136.9SRV—
326.9SAP—

Properties (4)

additional_info
SC224840
custom_field_two
2
customer
LACSD
datetime
2016-01-07T23:31:24-08:00
