Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 7, 2016, 10:17 AM

  • 05 0359_05 0358_07012016_021753.mp4

Date
01/07/2016
W/O
536429
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00432
PipeID
P05573
Time
2:17 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3067
Sewer Name
05 DISTRICT #5 MAIN RELIEF TRUNK
City
HAWTHORNE
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_536429_TV05014_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
05 0359
Downstream MH
05 0358
Dir. of Survey
Downstream
Length Surveyed
439.6 ft.
Total Length
439.6 ft.
Structural Index
4
Structural Quick
5P3P
Structural Rating
696
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
700
Pipe schematic from manhole 05 0359 to 05 0358
MH: 05 0359MH: 05 0358downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 03590 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 35 %of cross sectional area4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start4 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SPORATICALLY VISIBLE437.7 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish437.7 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish439.6 ft. AMH - Downstream Manhole, Survey Ends - 05 0358

Observation photos (2)

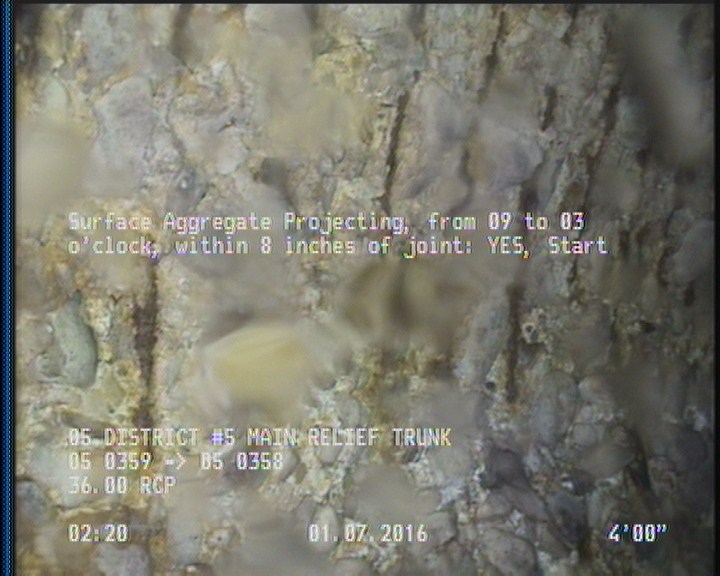

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

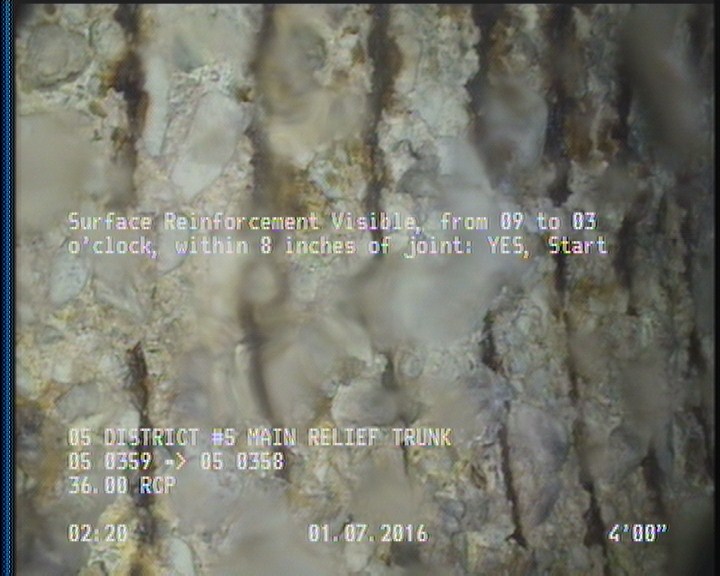

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SPORATICALLY VISIBLE

    4 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SPORATICALLY VISIBLE

All inspections of P05573Work order 536429

Observations (9)

DistanceCodeObservation
4SAP—
437.7SAP—
437.7SRV—
0AMH05 0359
0MWM—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MWL—
4SRVSPORATICALLY VISIBLE
439.6AMH05 0358

Properties (4)

additional_info
SC224839
custom_field_two
2
customer
LACSD
datetime
2016-01-07T02:17:32-08:00
