Wastewater/Activity/PacpInspection/1.0Jan 21, 2016, 09:39 AM
05 0375_05 2078_20160121_013959.mp4
- Date
- 01/21/2016
- W/O
- 536429
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00432
- PipeID
- P05587
- Time
- 1:39 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3119
- Sewer Name
- 05 DISTRICT #5 MAIN RELIEF TRUNK
- City
- HAWTHORNE, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_536429_TV05014_DEC2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 05 0375
- Downstream MH
- 05 2078
- Dir. of Survey
- Downstream
- Length Surveyed
- 15.8 ft.
- Total Length
- 15.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

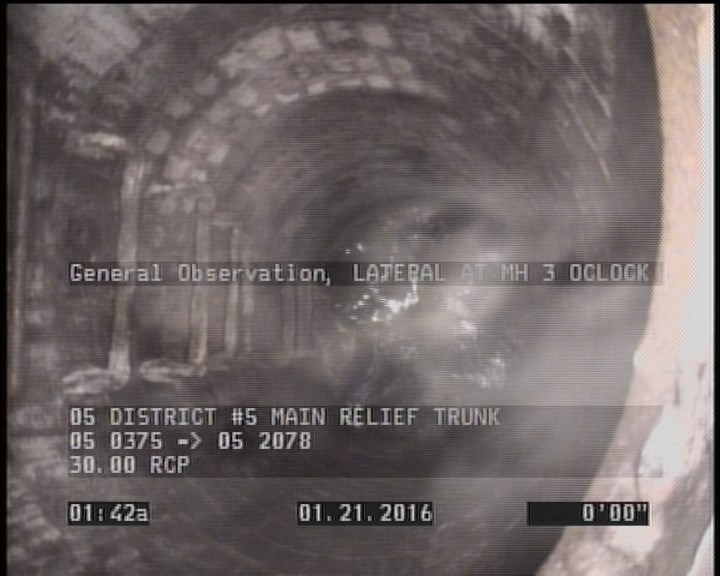

0 ft. - General Observation - LATERAL AT MH 3 OCLOCK

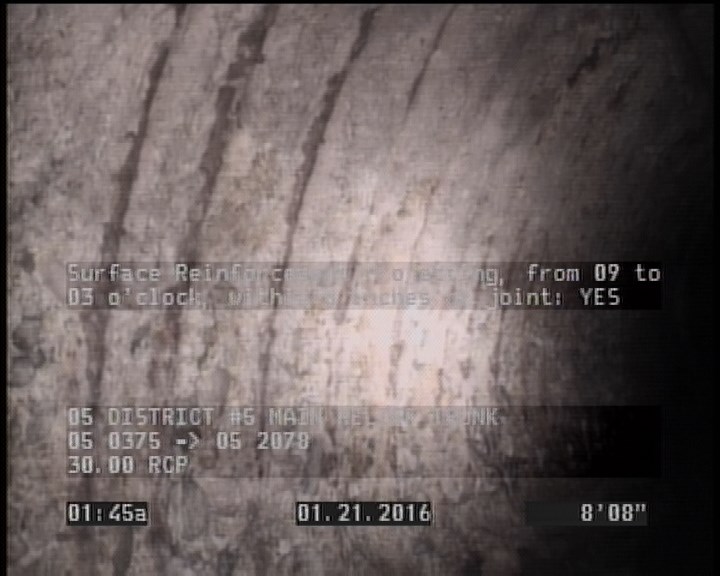

8.6 ft. - Surface Reinforcement Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0.5 | MWM | — |
| 15.8 | AMH | 05 2078 |
| 8.6 | SRP | — |
| 0 | AMH | 05 0375 |
| 2 | MGO | MAGNESIUM H.O. START |
| 0 | MGO | LATERAL AT MH 9 OCLOCK |
| 0 | MWL | — |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
Properties (4)
- additional_info
- SC225504
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-01-21T01:39:21-08:00
