Wastewater/Activity/PacpInspection/1.0Dec 9, 2015, 10:59 AM
H 1486_H 1485_20151209_031010.mp4
- Date
- 12/09/2015
- W/O
- 536417
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z01206
- PipeID
- P16446
- Time
- 2:59 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2883
- Sewer Name
- H JOINT OUTFALL H - UNIT 8M RELIEF
- City
- W. COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_536417_TV22149_NOV2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- H 1486
- Downstream MH
- H 1485
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

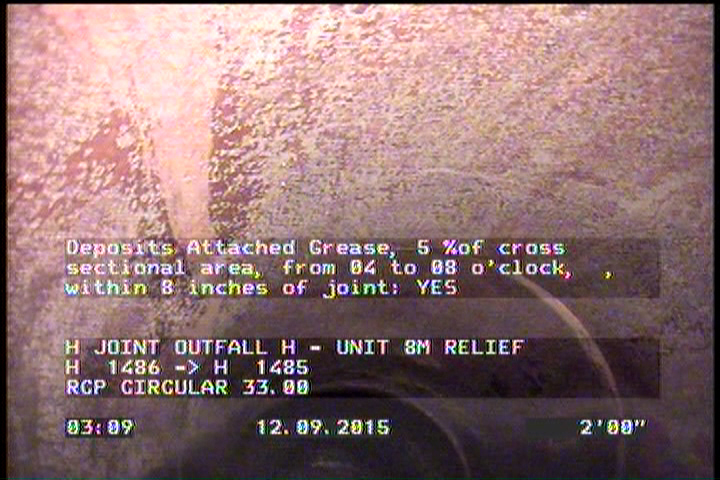

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

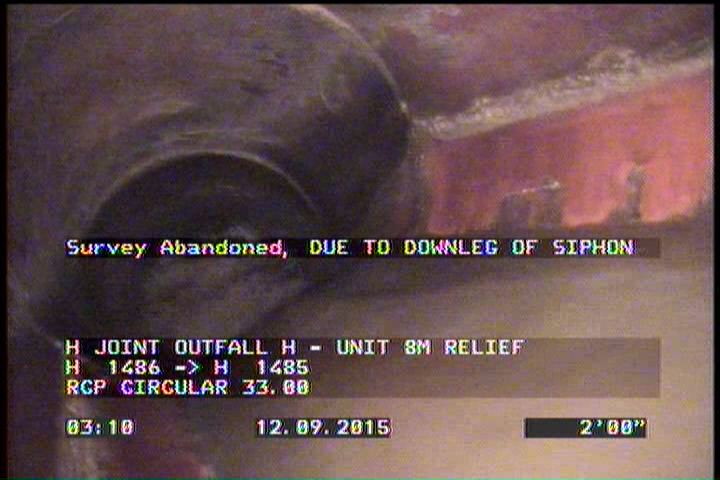

2 ft. - Survey Abandoned - DUE TO DOWNLEG OF SIPHON
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | H 1486 |
| 2 | MGO | DOWNLEG OF SIPHON |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | MGO | AIR VENT IN MANHOLE 12 O'CLOCK |
| 2 | MSA | DUE TO DOWNLEG OF SIPHON |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC224456
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-12-09T02:59:00-08:00
- sewer_category
- GRAVITY
