Wastewater/Activity/PacpInspection/1.0Dec 8, 2015, 12:15 PM
H 1492_H 1491_20151208_041825.mp4
- Date
- 12/08/2015
- W/O
- 536417
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z01206
- PipeID
- P16452
- Time
- 4:15 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2882
- Sewer Name
- H JOINT OUTFALL H - UNIT 8M RELIEF
- City
- WEST COVINA, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 30
- Purpose
- V
- Project
- WO_536417_TV22149_NOV2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- H 1491
- Downstream MH
- H 1492
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4131
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

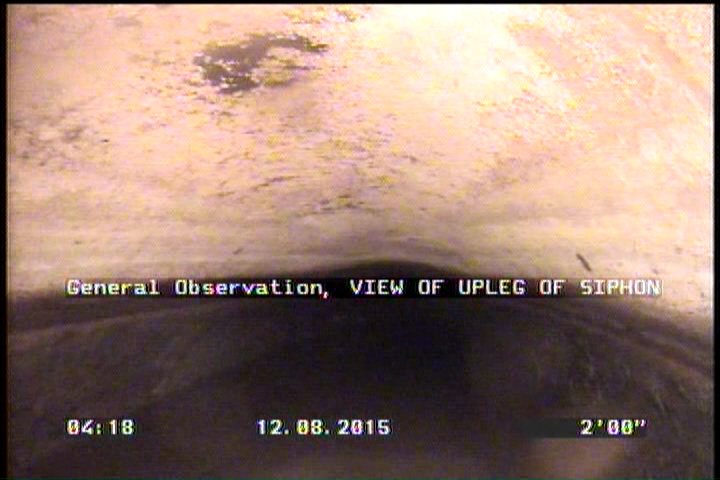

2 ft. - Survey Abandoned - DUE TO SIPHON

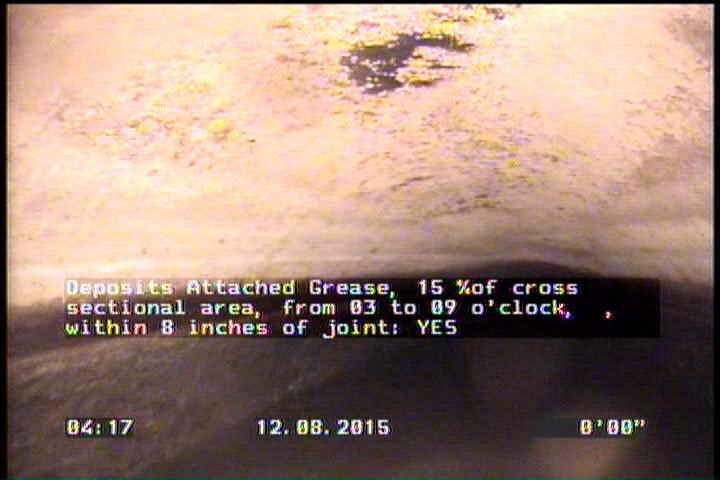

2 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

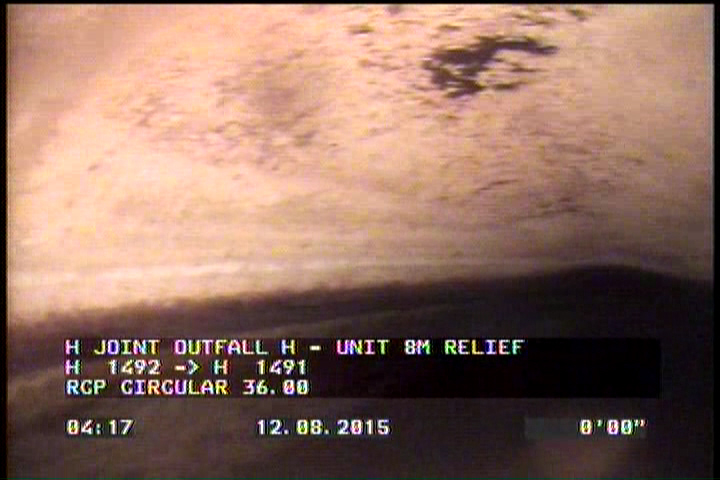

2 ft. - General Observation - MAGNESIUM H.O. START 80%
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | VIEW OF UPLEG OF SIPHON |
| 0 | MWL | — |
| 2 | MSA | DUE TO SIPHON |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | AMH | H 1491 |
| 2 | MGO | MAGNESIUM H.O. START 80% |
Properties (5)
- additional_info
- SC224454
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-12-08T04:15:00-08:00
- sewer_category
- GRAVITY
