Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 30, 2015, 12:19 PM

  • 22 0366_22 0365_20151130_043642.mp4

Date
11/30/2015
W/O
536378
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00831
PipeID
P16699
Time
4:19 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2872
Sewer Name
22 WALNUT CREEK TRUNK, SECTION 3
City
COVINA, CA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
33
Purpose
Routine Assessment
Project
WO_536378_TV22066_NOV2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
22 0365
Downstream MH
22 0366
Dir. of Survey
Upstream
Length Surveyed
245 ft.
Total Length
245 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 22 0365 to 22 0366
MH: 22 0365MH: 22 0366upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 03660 ft. MGO - General Observation - LATERAL CAPPED AT MH 3 OCLOCK1.2 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH1.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES59.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"236.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES243 ft. MGO - General Observation - MAGNEZIUM H.O. START245 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK245 ft. AMH - Downstream Manhole, Survey Begins - 22 0365245 ft. MWL - Water Level, 5 %of cross sectional area245 ft. MWM - Water Mark, 30 %of cross sectional area

Observation photos (2)

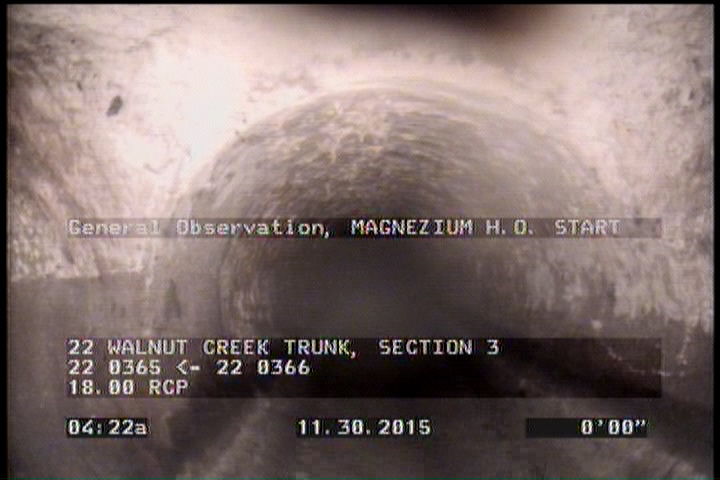

  • General Observation - MAGNEZIUM H.O. START

    2 ft. - General Observation - MAGNEZIUM H.O. START

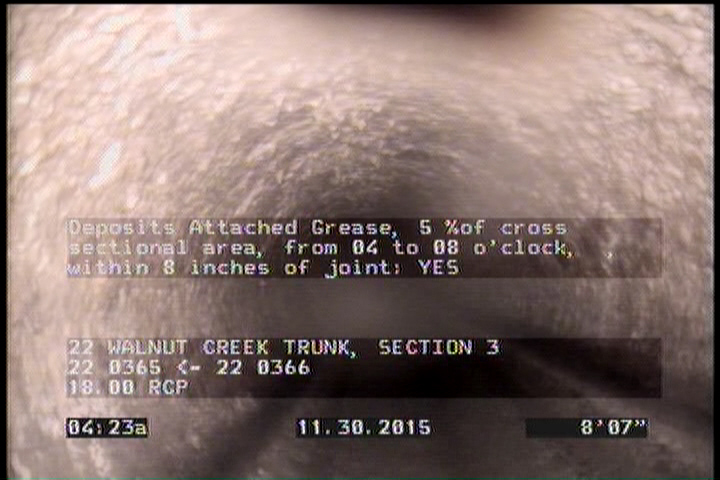

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

    8.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

All inspections of P16699Work order 536378

Observations (11)

DistanceCodeObservation
245AMH22 0366
0MGOLATERAL AT MH 3 OCLOCK
185.4TFC—
8.5DAGS—
0AMH22 0365
2MGOMAGNEZIUM H.O. START
0MWL—
243.8MGOMAGNEZIUM H.O. FINISH
0MWM—
243.8DAGS—
245MGOLATERAL CAPPED AT MH 3 OCLOCK

Properties (5)

additional_info
SC205640
custom_field_two
4
customer
LACSD
datetime
2015-11-30T04:19:00-08:00
sewer_category
GRAVITY
