Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 1, 2015, 09:01 AM

  • 22 0368_22 0367_20151201_011930.mp4

Date
12/01/2015
W/O
536378
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00831
PipeID
P16701
Time
1:01 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2873
Sewer Name
22 WALNUT CREEK TRUNK, SECTION 3
City
COVINA, CA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
33
Purpose
Routine Assessment
Project
WO_536378_TV22066_NOV2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
22 0367
Downstream MH
22 0368
Dir. of Survey
Upstream
Length Surveyed
445.3 ft.
Total Length
445.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 22 0367 to 22 0368
MH: 22 0367MH: 22 0368upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 03682 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish103.9 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"138.9 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"184.5 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"247.1 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: YES, 6"281.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"384.2 ft. MWL - Water Level, 15 %of cross sectional area387.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"441.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start443.3 ft. MGO - General Observation - MAGNEZIUM H.O. START 90%445.3 ft. MWM - Water Mark, 45 %of cross sectional area445.3 ft. AMH - Downstream Manhole, Survey Begins - 22 0367445.3 ft. MWL - Water Level, 35 %of cross sectional area

Observation photos (2)

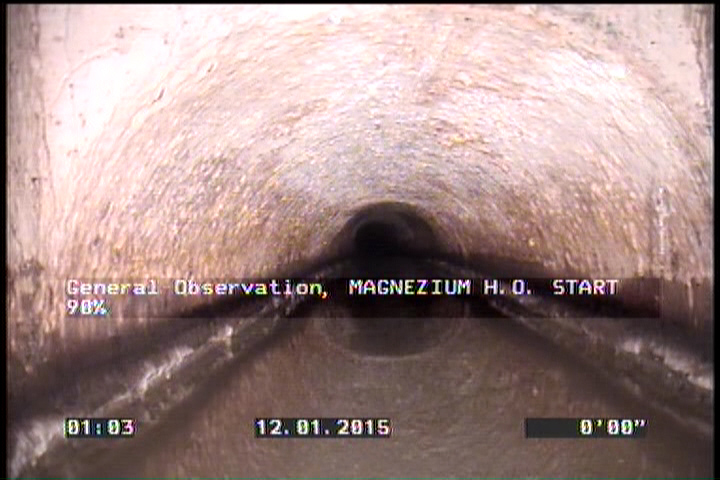

  • General Observation - MAGNEZIUM H.O. START 90%

    2 ft. - General Observation - MAGNEZIUM H.O. START 90%

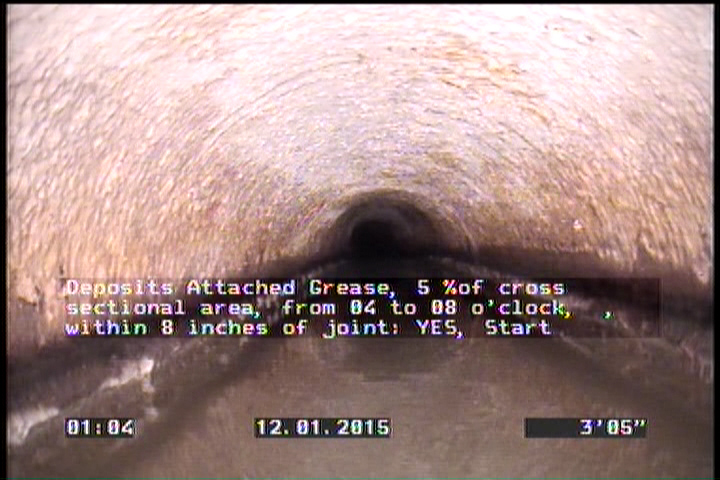

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P16701Work order 536378

Observations (15)

DistanceCodeObservation
443.3MGOMAGNEZIUM H.O. FINISH
341.4TBA—
445.3AMH22 0368
260.8TBA—
306.4TBA—
0MWM—
61.1MWL—
0AMH22 0367
2MGOMAGNEZIUM H.O. START 90%
0MWL—
3.4DAGS—
198.2TBA—
58.2TFC—
163.8TFA—
443.3DAGS—

Properties (5)

additional_info
SC205641
custom_field_two
4
customer
LACSD
datetime
2015-12-01T01:01:00-08:00
sewer_category
GRAVITY
