Wastewater/Activity/PacpInspection/1.0Dec 1, 2015, 07:25 AM
22 0370_22 0369_20151130_233813.mp4
- Date
- 11/30/2015
- W/O
- 536378
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00831
- PipeID
- P16703
- Time
- 11:25 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2873
- Sewer Name
- 22 WALNUT CREEK TRUNK, SECTION 3
- City
- COVINA, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_536378_TV22066_NOV2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 22 0370
- Downstream MH
- 22 0369
- Dir. of Survey
- Downstream
- Length Surveyed
- 183 ft.
- Total Length
- 183 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

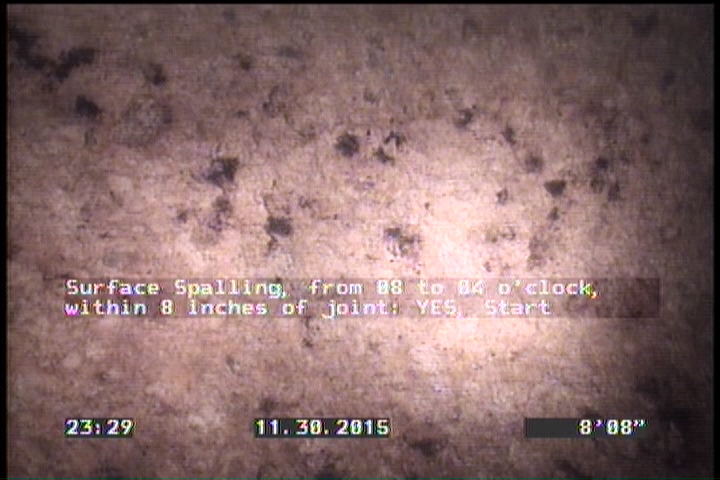

8.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

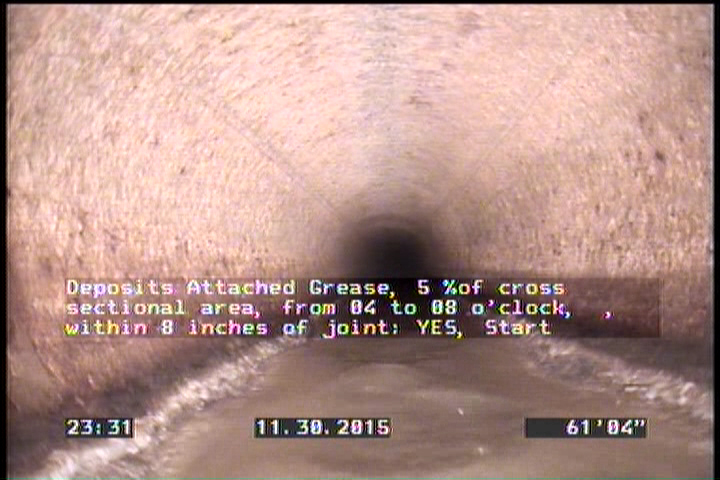

61.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 112.7 | TBA | — |
| 0 | MWM | — |
| 181.3 | DAGS | — |
| 182.6 | MGO | CONNECTION AT MH 9 O'CLOC |
| 96.5 | RFL | — |
| 181.3 | SSS | — |
| 0 | AMH | 22 0370 |
| 183 | AMH | 22 0369 |
| 0 | MWL | — |
| 96.5 | TBA | — |
| 8.7 | SSS | — |
| 61.3 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOC |
Properties (5)
- additional_info
- SC205641
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-11-30T23:25:00-08:00
- sewer_category
- GRAVITY
