Wastewater/Activity/PacpInspection/1.0Nov 30, 2015, 11:26 AM
22 0363_22 1257_20151130_033506.mp4
- Date
- 11/30/2015
- W/O
- 536378
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00831
- PipeID
- P16696
- Time
- 3:26 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2872
- Sewer Name
- 22 WALNUT CREEK TRUNK, SECTION 3
- City
- COVINA, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_536378_TV22066_NOV2015
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 22 1257
- Downstream MH
- 22 0363
- Dir. of Survey
- Upstream
- Length Surveyed
- 75.5 ft.
- Total Length
- 75.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2B13
- O&M Rating
- 31
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 31
Observation photos (2)

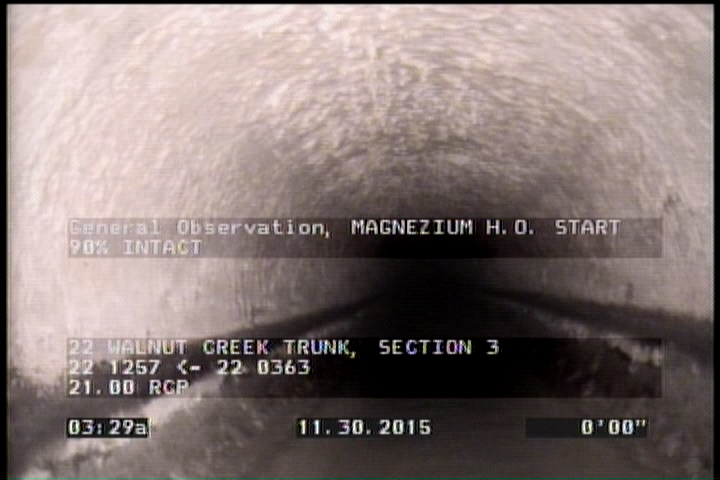

2 ft. - General Observation - MAGNEZIUM H.O. START 90% INTACT

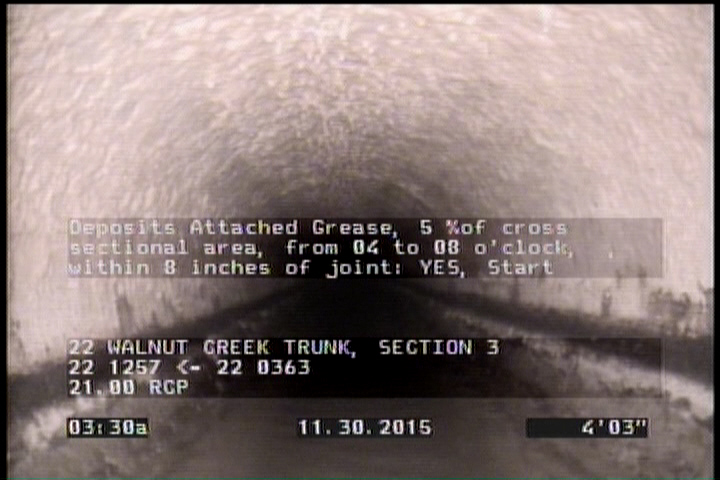

4.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAGNEZIUM H.O. START 90% INTACT |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 0 | MWL | — |
| 0 | AMH | 22 1257 |
| 59 | LL | — |
| 43.5 | LL | — |
| 74.9 | DAGS | — |
| 74.9 | MGO | MAGNEZIUM H.O. FINISH |
| 75.5 | AMH | 22 0363 |
| 4.3 | DAGS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC205640
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-11-30T03:26:00-08:00
- sewer_category
- GRAVITY
