Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 31, 2015, 06:45 AM

  • 22 0866_22 0865_20151230_230450.mp4

Date
12/30/2015
W/O
531046
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00803
PipeID
P17233
Time
10:45 PM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2946
Sewer Name
22 DALTON TRUNK, SECTION 3
City
AZUSA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Routine Assessment
Project
WO_531046_TV22083_DEC2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
22 0866
Downstream MH
22 0865
Dir. of Survey
Downstream
Length Surveyed
375.5 ft.
Total Length
375.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 22 0866 to 22 0865
MH: 22 0866MH: 22 0865downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 08660 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK2 ft. MGO - General Observation - MAGNEZIUM H.O.40% START66.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"74.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"118.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"127.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"167.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"191.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS223.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"247.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"271.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"287.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"319.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"336.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"368.1 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: NO, 4"372.2 ft. MGO - General Observation - MAGNEZIUM H.O.40% FINISH375.5 ft. AMH - Downstream Manhole, Survey Ends - 22 0865

Observation photos (2)

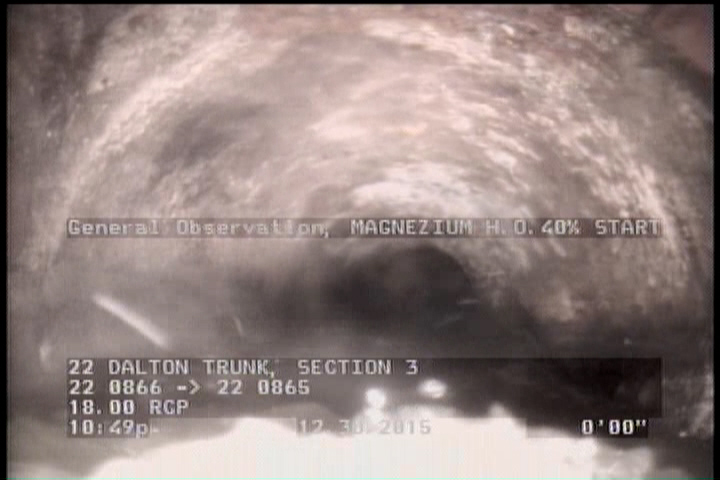

  • General Observation - MAGNEZIUM H.O.40% START

    2 ft. - General Observation - MAGNEZIUM H.O.40% START

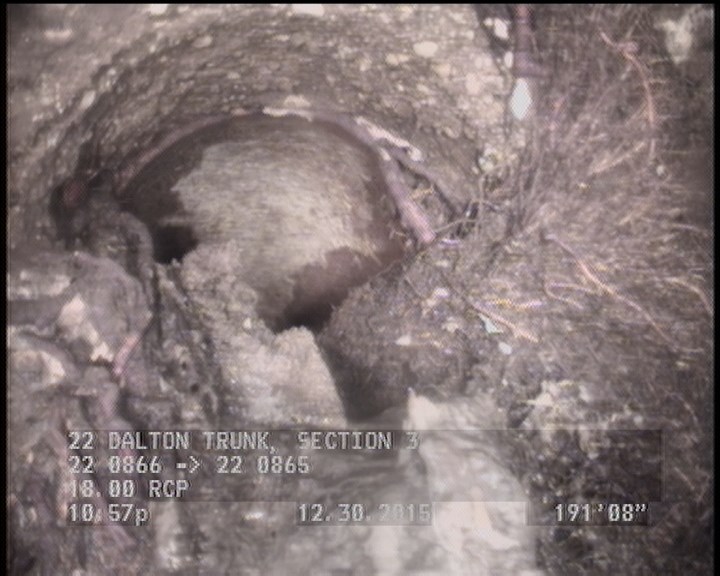

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS

    191.7 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS

All inspections of P17233Work order 531046

Observations (20)

DistanceCodeObservation
0AMH22 0866
0MWM—
375.5AMH22 0865
127.1TFC—
271.7TFC—
247.4TF—
66.8TF—
0MWL—
223.9TF—
319.9TFC—
118.6TF—
0MGOLATERAL AT MH 9 OCLOCK
167.5TF—
2MGOMAGNEZIUM H.O.40% START
287.7TF—
336.3TF—
372.2MGOMAGNEZIUM H.O.40% FINISH
74.9TFC—
368.1TB—
191.7TBROOTS

Properties (5)

additional_info
SC224957
custom_field_two
4
customer
LACSD
datetime
2015-12-30T22:45:02-08:00
sewer_category
GRAVITY
