Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 16, 2015, 10:58 AM

  • 01 0128_01 0127_16122015_025910.mp4

Date
12/16/2015
W/O
524985
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00204
PipeID
P02072
Time
2:58 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2963
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_524985_TV011104_NOV2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
01 0128
Downstream MH
01 0127
Dir. of Survey
Downstream
Length Surveyed
391.5 ft.
Total Length
391.5 ft.
Structural Index
2
Structural Quick
3327
Structural Rating
23
O&M Index
3
O&M Quick
413M
O&M Rating
214
Overall Index
3
Overall Quick
—
Overall Rating
237
Pipe schematic from manhole 01 0128 to 01 0127
MH: 01 0128MH: 01 0127downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 01280 ft. MWL - Water Level, 30 %of cross sectional area41 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start46.8 ft. CS - Crack Spiral, from 12 to 03 o'clock, within 8 inches of joint: YES61 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES61 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES80.9 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES80.9 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES96.3 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES125.9 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES209.9 ft. CM - Crack Multiple, from 10 to 05 o'clock, within 8 inches of joint: YES260.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES270.1 ft. CM - Crack Multiple, from 06 to 04 o'clock, within 8 inches of joint: YES389.1 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish391.5 ft. AMH - Downstream Manhole, Survey Ends - 01 0127

Observation photos (10)

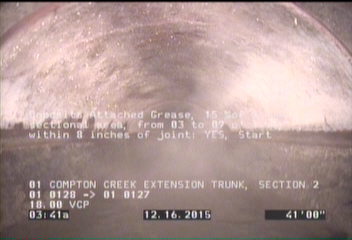

  • Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    41 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

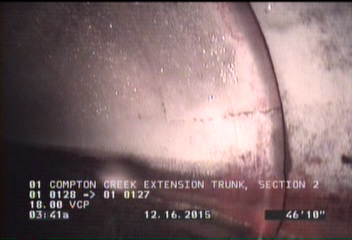

  • Crack Spiral, from 12 to 03 o'clock, within 8 inches of joint: YES

    46.8 ft. - Crack Spiral, from 12 to 03 o'clock, within 8 inches of joint: YES

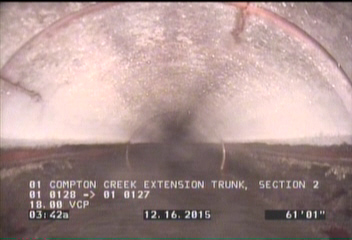

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    61 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

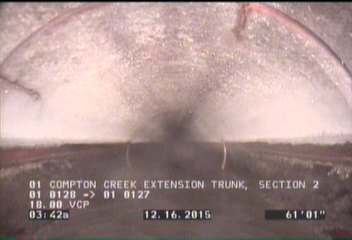

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    61 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

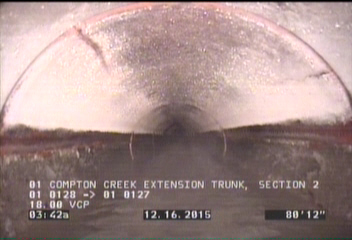

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    80.9 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    80.9 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

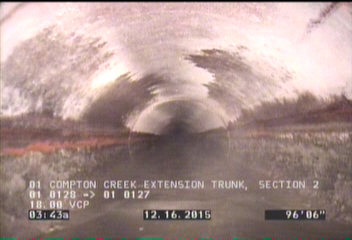

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    96.3 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

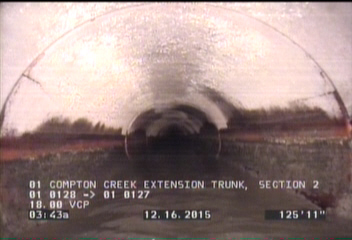

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    125.9 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

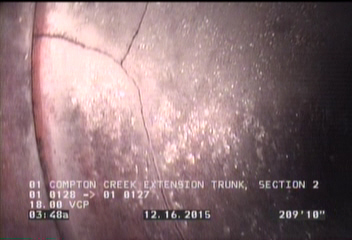

  • Crack Multiple, from 10 to 05 o'clock, within 8 inches of joint: YES

    209.9 ft. - Crack Multiple, from 10 to 05 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 06 to 04 o'clock, within 8 inches of joint: YES

    270.1 ft. - Crack Multiple, from 06 to 04 o'clock, within 8 inches of joint: YES

All inspections of P02072Work order 524985

Observations (16)

DistanceCodeObservation
0MWM—
0AMH01 0128
80.9CL—
125.9CL—
0MWL—
389.1DAGS—
270.1CM—
80.9CL—
61CL—
61CL—
391.5AMH01 0127
96.3CL—
260.4CM—
41DAGS—
209.9CM—
46.8CS—

Properties (5)

additional_info
SC224802
custom_field_two
3
customer
LACSD
datetime
2015-12-16T02:58:21-08:00
sewer_category
GRAVITY
