Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 16, 2015, 08:48 AM

  • 01 0132_01 0131_16122015_004937.mp4

Date
12/16/2015
W/O
524985
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00204
PipeID
P02076
Time
12:48 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2963
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_524985_TV011104_NOV2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 0132
Downstream MH
01 0131
Dir. of Survey
Downstream
Length Surveyed
160.6 ft.
Total Length
160.6 ft.
Structural Index
2
Structural Quick
2600
Structural Rating
12
O&M Index
3
O&M Quick
413E
O&M Rating
97
Overall Index
3
Overall Quick
—
Overall Rating
109
Pipe schematic from manhole 01 0132 to 01 0131
MH: 01 0132MH: 01 0131downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 01322.9 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start103.4 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES113.6 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES113.7 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES132.5 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES132.5 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES138.9 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES158.6 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish160.6 ft. AMH - Downstream Manhole, Survey Ends - 01 0131

Observation photos (7)

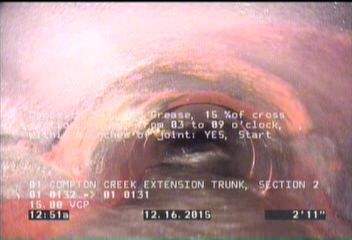

  • Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.9 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

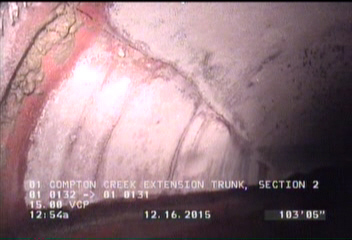

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    103.4 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

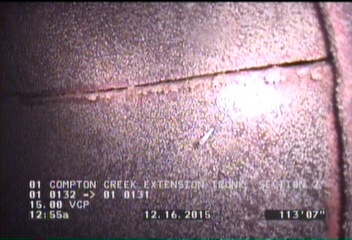

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    113.6 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

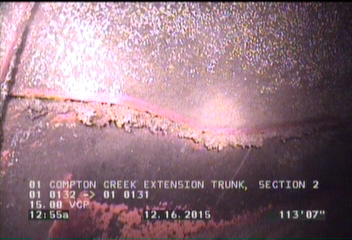

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    113.7 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

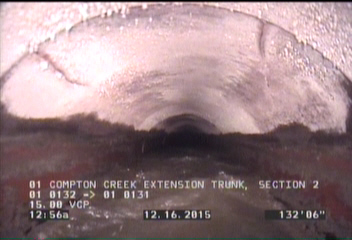

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    132.5 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

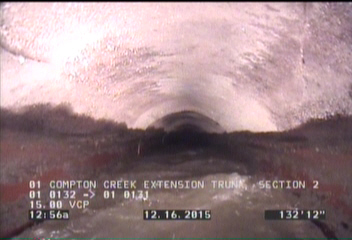

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    132.5 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

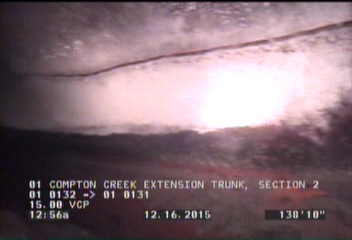

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    138.9 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

All inspections of P02076Work order 524985

Observations (12)

DistanceCodeObservation
158.6DAGS—
0MWM—
113.7CL—
132.5CL—
103.4CL—
138.9CL—
113.6CL—
0MWL—
0AMH01 0132
160.6AMH01 0131
132.5CL—
2.9DAGS—

Properties (5)

additional_info
SC224802
custom_field_two
3
customer
LACSD
datetime
2015-12-16T00:48:35-08:00
sewer_category
GRAVITY
