Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 16, 2015, 08:27 AM

  • 01 0134_01 0133_16122015_002801.mp4

Date
12/16/2015
W/O
524985
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00204
PipeID
P02078
Time
12:27 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2963
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_524985_TV011104_NOV2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 0134
Downstream MH
01 0133
Dir. of Survey
Downstream
Length Surveyed
111.6 ft.
Total Length
111.6 ft.
Structural Index
4
Structural Quick
4C31
Structural Rating
75
O&M Index
4
O&M Quick
4131
O&M Rating
7
Overall Index
4
Overall Quick
—
Overall Rating
82
Pipe schematic from manhole 01 0134 to 01 0133
MH: 01 0134MH: 01 0133downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 01340 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area1.8 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start14 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start56.5 ft. FS - Fracture Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES106 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish109.1 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish111.6 ft. AMH - Downstream Manhole, Survey Begins - 01 0133

Observation photos (4)

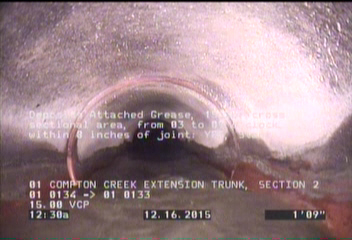

  • Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    1.8 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

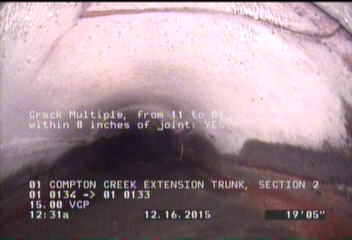

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    14 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

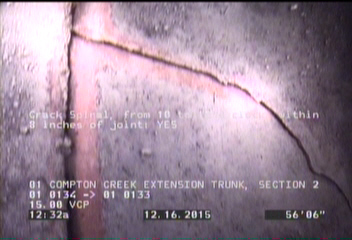

  • Fracture Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES

    56.5 ft. - Fracture Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES

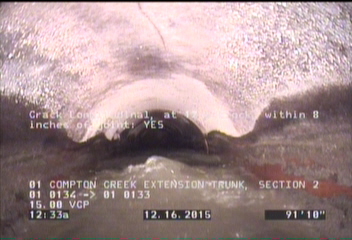

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

    106 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

All inspections of P02078Work order 524985

Observations (9)

DistanceCodeObservation
0AMH01 0134
111.6AMH01 0133
1.8DAGS—
14FM—
0MWM—
0MWL—
56.5FS—
109.1DAGS—
106FM—

Properties (5)

additional_info
SC224802
custom_field_two
2
customer
LACSD
datetime
2015-12-16T00:27:01-08:00
sewer_category
GRAVITY
