Observation photos (14)

•

  6 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

•

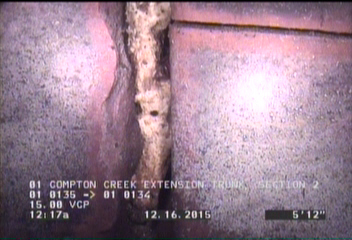

  6 ft. - Crack Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES

•

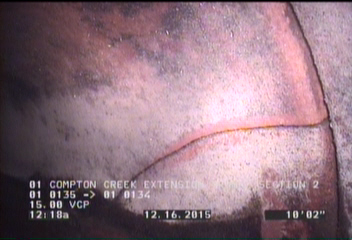

  10.2 ft. - Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

•

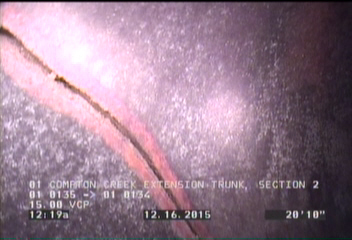

  20.9 ft. - Fracture Multiple, from 06 to 12 o'clock, within 8 inches of joint: YES

•

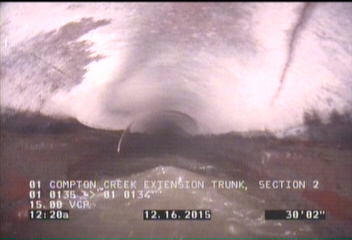

  30.2 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

•

  34.7 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

•

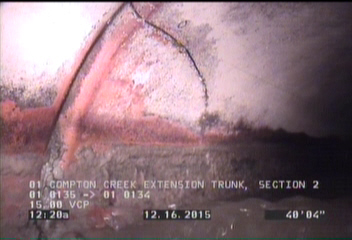

  40.7 ft. - Crack Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES

•

  60.2 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

•

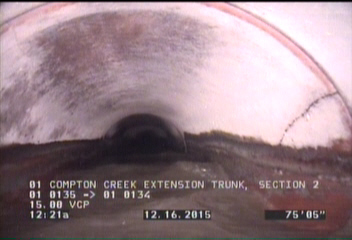

  75.4 ft. - Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

•

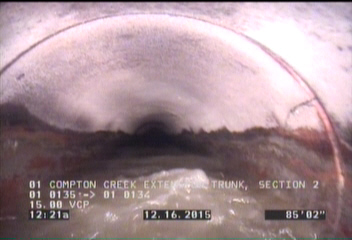

  85.1 ft. - Crack Spiral, from 02 to 03 o'clock, within 8 inches of joint: YES

•

  92 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

•

  102 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

•

  110.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

•

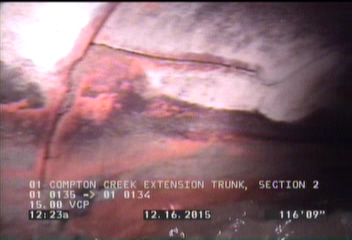

  116.7 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES
