01 0147_01 0146_15122015_010810.mp4
- Date
- 12/15/2015
- W/O
- 524985
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00204
- PipeID
- P02090
- Time
- 1:06 AM
- Certificate
- 12345
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2962
- Sewer Name
- 01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
- City
- COMPTON
- Loc. details
- Alley
- Location Code
- H
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_524985_TV011104_NOV2015
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 01 0147
- Downstream MH
- 01 0146
- Dir. of Survey
- Downstream
- Length Surveyed
- 261.4 ft.
- Total Length
- 261.4 ft.
- Structural Index
- 3
- Structural Quick
- 3625
- Structural Rating
- 28
- O&M Index
- 3
- O&M Quick
- 4132
- O&M Rating
- 10
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 38
Observation photos (12)

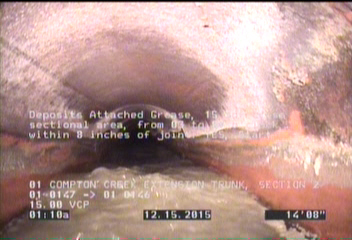

14.7 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

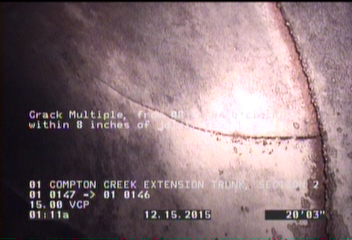

20.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

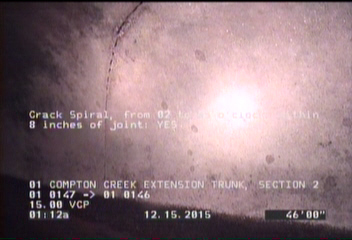

46 ft. - Crack Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES

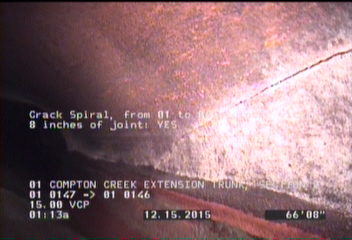

66.7 ft. - Crack Spiral, from 01 to 06 o'clock, within 8 inches of joint: YES

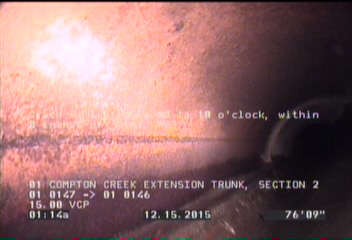

76.8 ft. - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

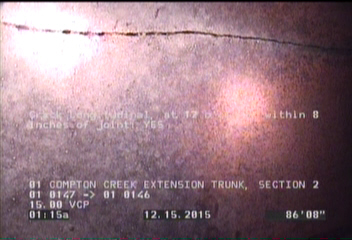

86.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

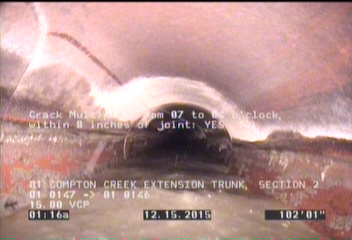

102 ft. - Crack Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES

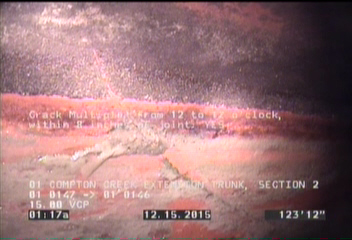

124 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

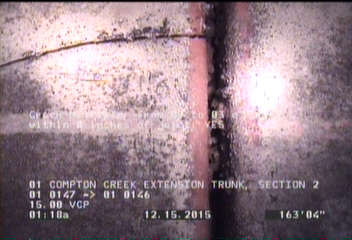

163.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

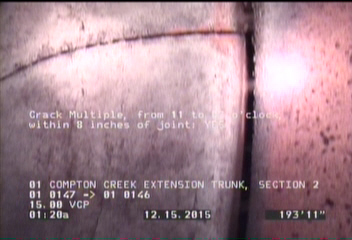

193.9 ft. - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

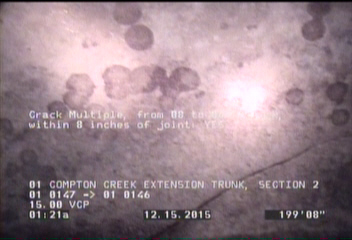

199.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

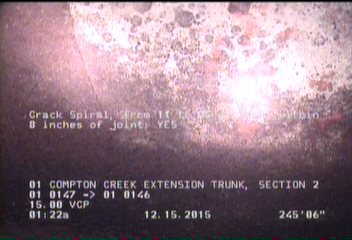

245.5 ft. - Crack Spiral, from 11 to 05 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 14.7 | DAGS | — |
| 193.9 | CM | — |
| 163.4 | CM | — |
| 245.5 | CS | — |
| 199.7 | CM | — |
| 259.5 | DAGS | — |
| 0 | MWM | — |
| 76.8 | CS | — |
| 66.7 | CS | — |
| 86.7 | CL | — |
| 261.4 | AMH | 01 0146 |
| 46 | CS | — |
| 124 | CM | — |
| 0 | AMH | 01 0147 |
| 0 | MWL | — |
| 102 | CM | — |
| 20.3 | CM | — |
Properties (5)
- additional_info
- SC224801
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-12-15T01:06:31-08:00
- sewer_category
- GRAVITY
