Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 15, 2015, 10:16 AM

  • 01 0145_01 0144_15122015_021734.mp4

Date
12/15/2015
W/O
524985
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00204
PipeID
P02088
Time
2:16 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2962
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_524985_TV011104_NOV2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 0144
Downstream MH
01 0145
Dir. of Survey
Upstream
Length Surveyed
208.4 ft.
Total Length
208.4 ft.
Structural Index
2
Structural Quick
3223
Structural Rating
12
O&M Index
3
O&M Quick
413G
O&M Rating
124
Overall Index
3
Overall Quick
—
Overall Rating
136
Pipe schematic from manhole 01 0144 to 01 0145
MH: 01 0144MH: 01 0145upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 01450.6 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish14.9 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES77.4 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES77.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES131.8 ft. CM - Crack Multiple, from 11 to 12 o'clock, within 8 inches of joint: YES187.2 ft. CM - Crack Multiple, from 02 to 03 o'clock, within 8 inches of joint: YES201.3 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start208.4 ft. MWM - Water Mark, 70 %of cross sectional area208.4 ft. MWL - Water Level, 50 %of cross sectional area208.4 ft. AMH - Downstream Manhole, Survey Begins - 01 0144

Observation photos (6)

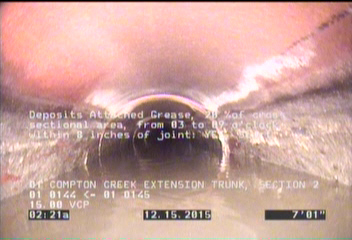

  • Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    7.1 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

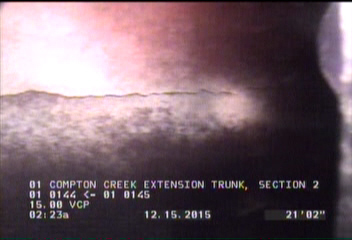

  • Crack Multiple, from 02 to 03 o'clock, within 8 inches of joint: YES

    21.2 ft. - Crack Multiple, from 02 to 03 o'clock, within 8 inches of joint: YES

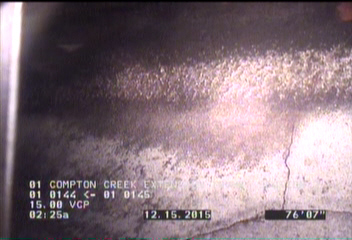

  • Crack Multiple, from 11 to 12 o'clock, within 8 inches of joint: YES

    76.6 ft. - Crack Multiple, from 11 to 12 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    131 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

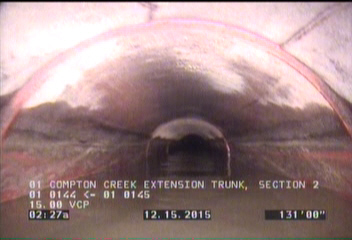

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    131 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

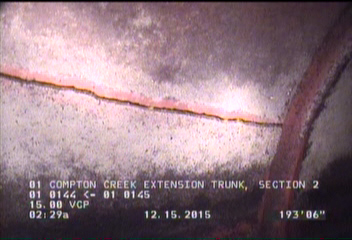

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    193.5 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

All inspections of P02088Work order 524985

Observations (11)

DistanceCodeObservation
131CL—
208.4AMH01 0145
193.5CL—
207.8DAGS—
76.6CM—
21.2CM—
0MWM—
7.1DAGS—
131CL—
0MWL—
0AMH01 0144

Properties (5)

additional_info
SC224801
custom_field_two
3
customer
LACSD
datetime
2015-12-15T02:16:33-08:00
sewer_category
GRAVITY
