Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 9, 2015, 11:33 PM

  • 01 0152_01 0151_09122015_231532.mp4

Date
12/09/2015
W/O
524985
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00204
PipeID
P02095
Time
3:33 PM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2960
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_524985_TV011104_NOV2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 0152
Downstream MH
01 0151
Dir. of Survey
Downstream
Length Surveyed
304.2 ft.
Total Length
304.2 ft.
Structural Index
2
Structural Quick
3224
Structural Rating
14
O&M Index
4
O&M Quick
4K11
O&M Rating
241
Overall Index
4
Overall Quick
—
Overall Rating
255
Pipe schematic from manhole 01 0152 to 01 0151
MH: 01 0152MH: 01 0151downstream0 ft. MWM - Water Mark, 70 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 01520 ft. MWL - Water Level, 50 %of cross sectional area7.1 ft. DAGS - Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start115.3 ft. CM - Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES120.2 ft. CS - Crack Spiral, from 03 to 06 o'clock, within 8 inches of joint: YES181 ft. CM - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES237.4 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES272 ft. RFJ - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR287.7 ft. CS - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES292.9 ft. CS - Crack Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES301.8 ft. DAGS - Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish304.2 ft. AMH - Downstream Manhole, Survey Ends - 01 0151

Observation photos (8)

  • Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

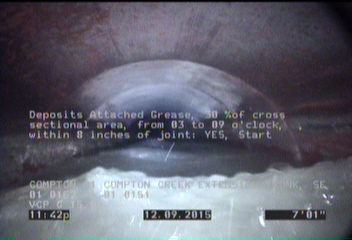

    7.1 ft. - Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES

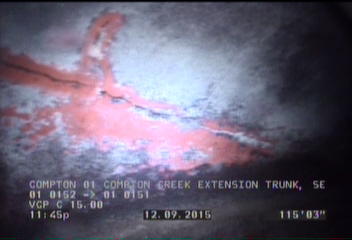

    115.3 ft. - Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES

  • Crack Spiral, from 03 to 06 o'clock, within 8 inches of joint: YES

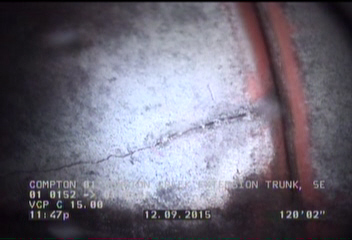

    120.2 ft. - Crack Spiral, from 03 to 06 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES

    181 ft. - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

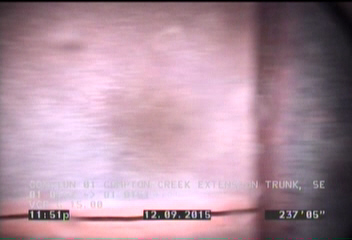

    237.4 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

  • Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR

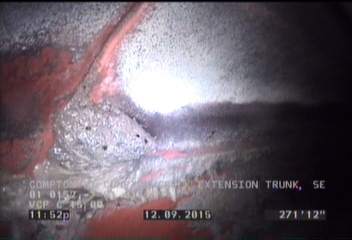

    272 ft. - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR

  • Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

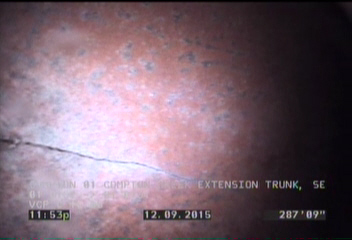

    287.7 ft. - Crack Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES

  • Crack Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES

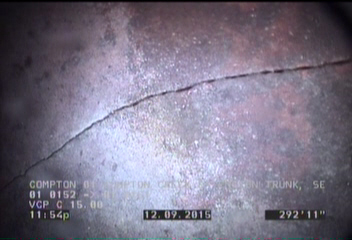

    292.9 ft. - Crack Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES

All inspections of P02095Work order 524985

Observations (13)

DistanceCodeObservation
237.4CL—
301.8DAGS—
115.3CM—
181CM—
0MWM—
272RFJ—
287.7CS—
292.9CS—
120.2CS—
304.2AMH01 0151
7.1DAGS—
0AMH01 0152
0MWL—
